geared stepper motors

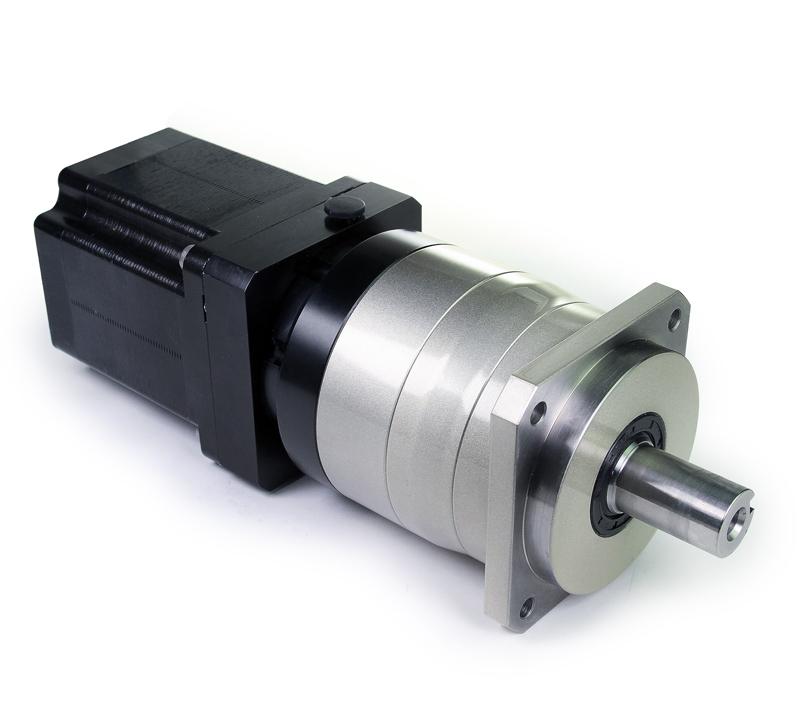

Lin Engineering's Hybrid Stepper Motors matched with High Precision Planetary Gearboxes are perfect for applications that require higher torque. Our gearboxes are Designed and Manufactured In-House and offer low backlash and high efficiency. Â Available in multiple popular gear rations including 5:1, 10:1, 20:1, and 50:1. Â

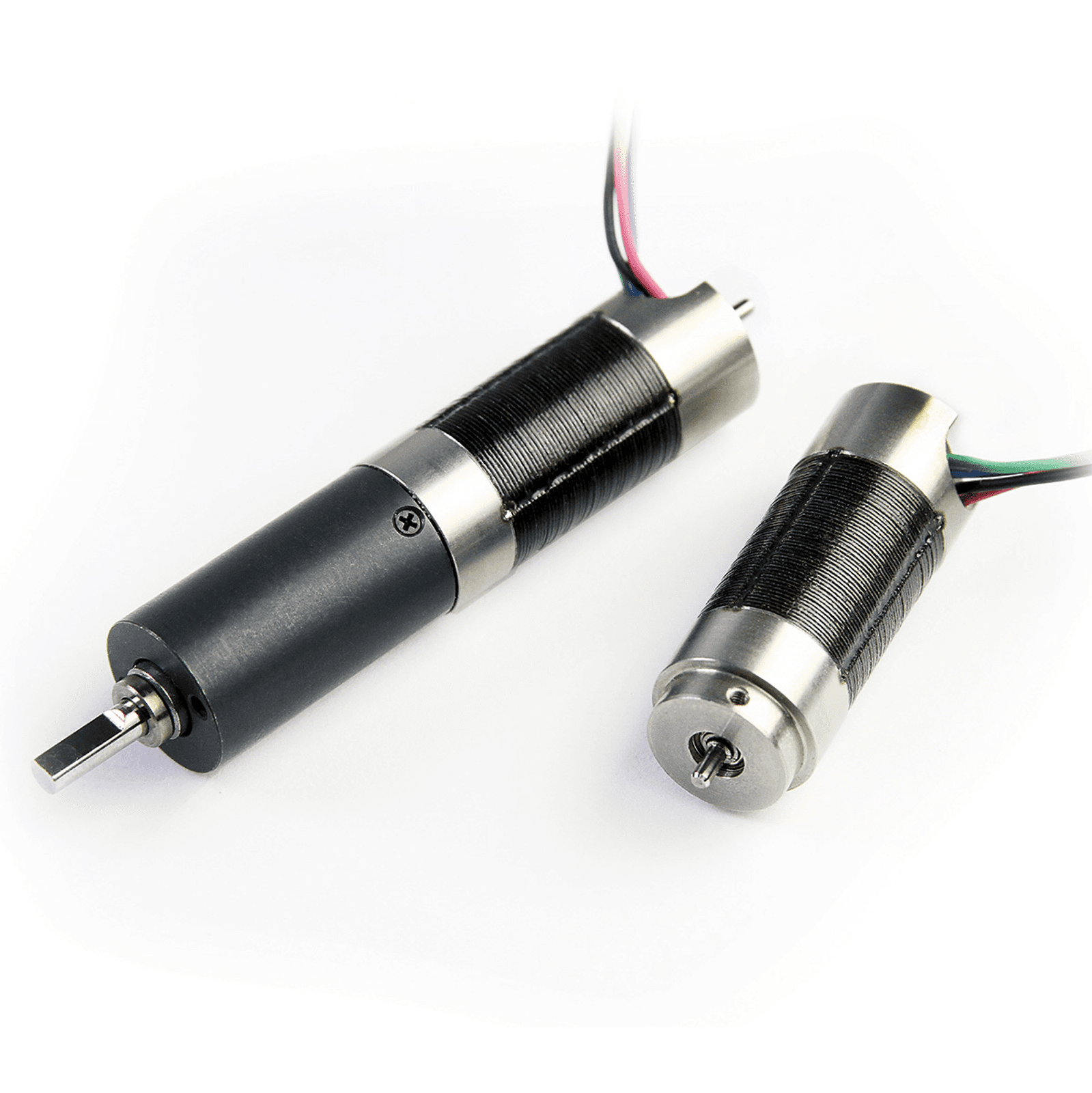

1330 Series
NEMA 5
Frame Size
NEMA 05 (0.510 in)
Step Angle
30°
Length
1.99 to 2.28 in
Holding Torque
9.76 to 41.7 oz-in
Available Options
Hot/Cold
Quote
View Series Details

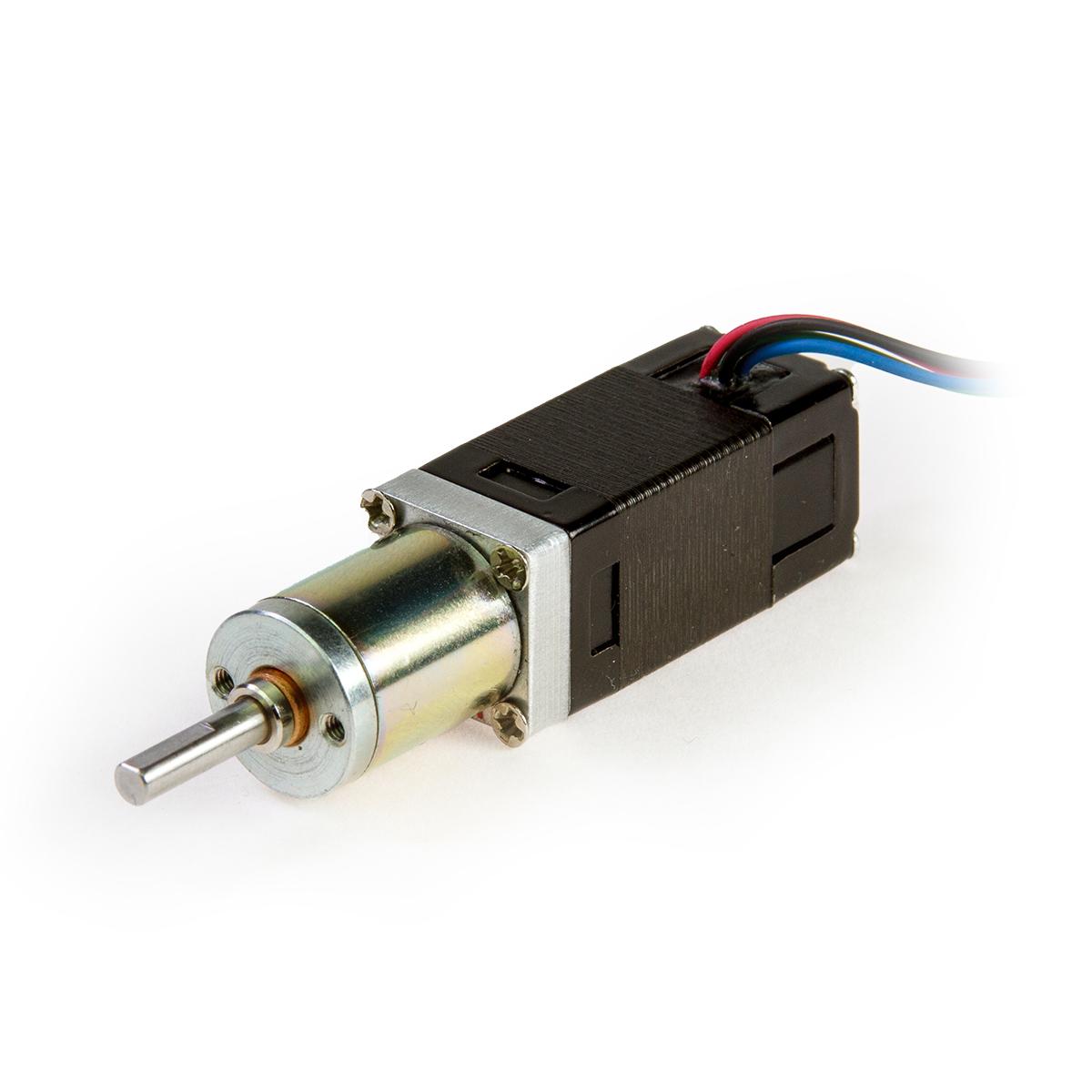

206 Series
NEMA 6
Frame Size
NEMA 06 (0.550 in)
Step Angle
1.8°
Length
1.18 in
Holding Torque
0.91 oz-in
Available Options
Hot/Cold
Available Online
View Series Details
3518 Series
NEMA 14
Frame Size
NEMA 14 (1.390 in)
Step Angle
1.8°
Length
2.19 in
Holding Torque
55.23 to 56.64 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

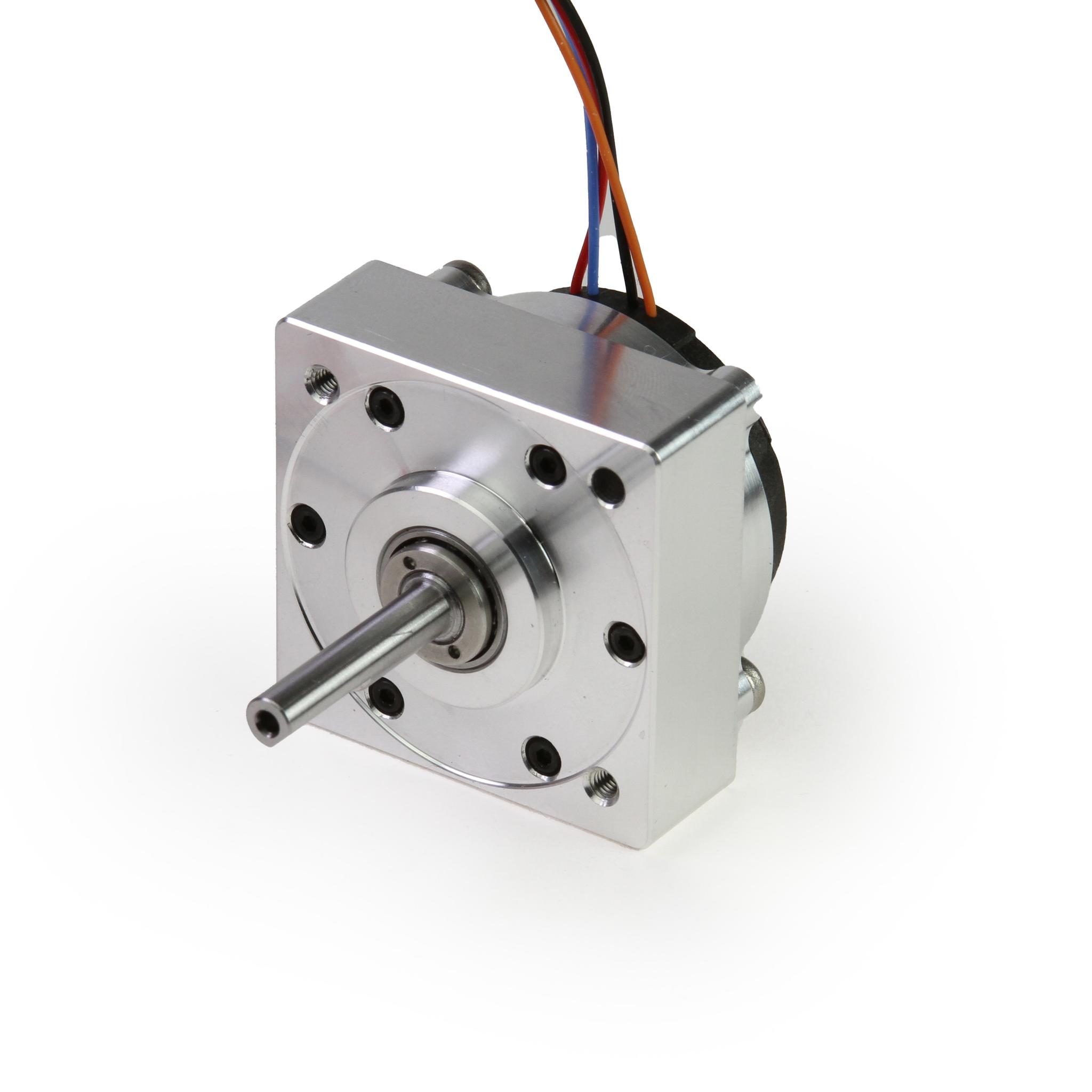

3618 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Length
1.02 in
Holding Torque
52.99 to 105.98 oz-in
Quote
View Series Details

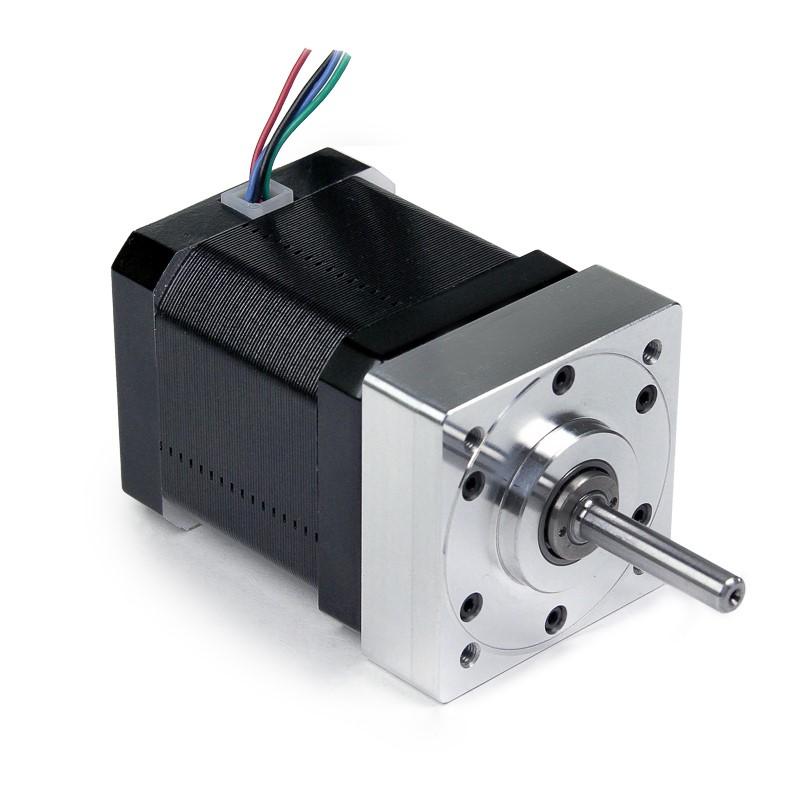

4118 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
1.8°
Length
1.34 to 2.34 in
Holding Torque
42.48 to 124.62 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

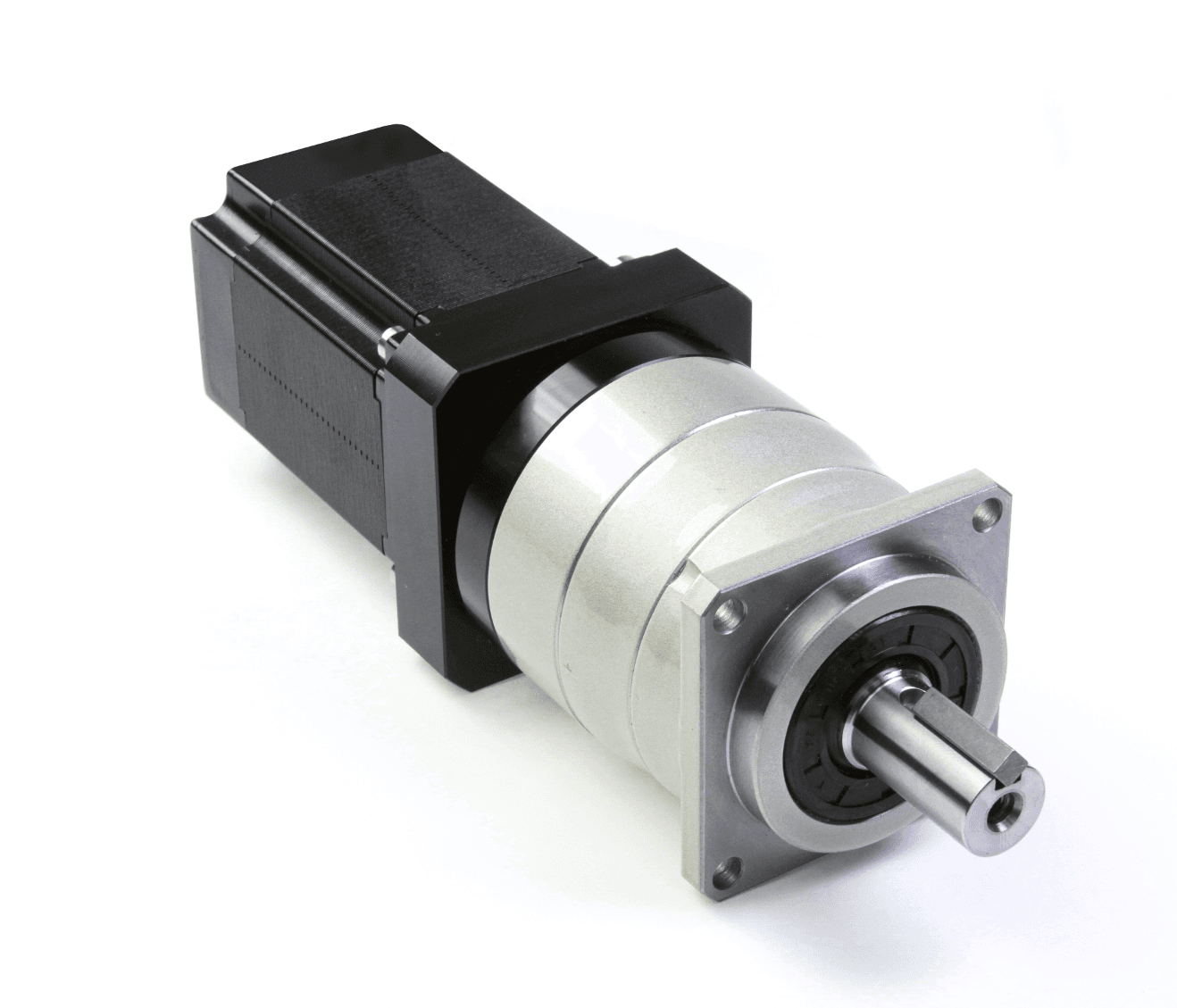

5718 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
1.8°
Length
1.74 to 3.1 in
Holding Torque
100.54 to 294.55 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

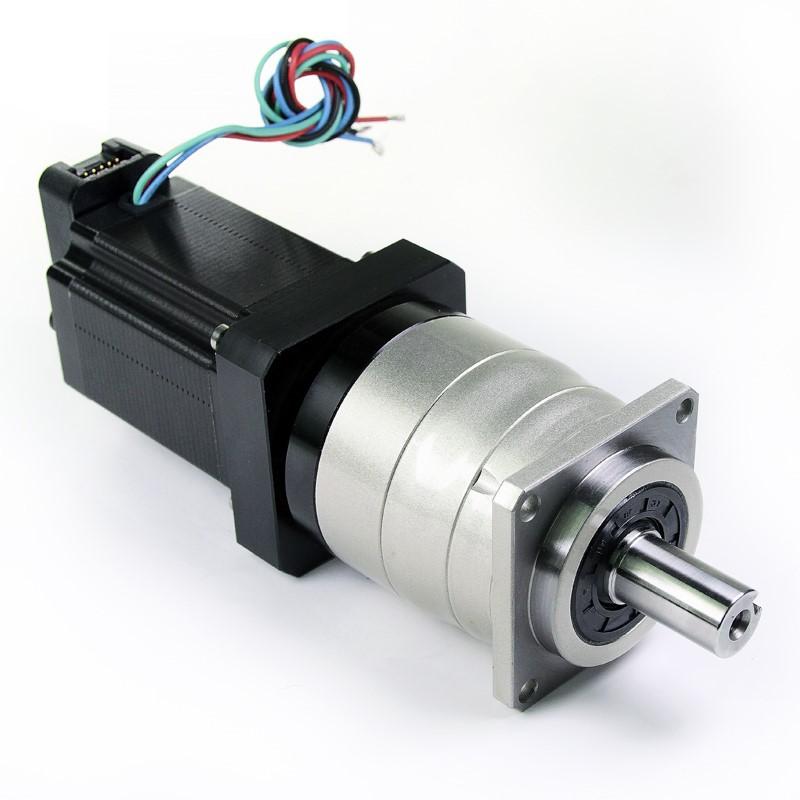

X5718 Series
NEMA 23
Frame Size
NEMA 23 (2.220 in)
Step Angle
1.8°
Length
2.17 to 3.03 in
Holding Torque
311.55 to 467.32 oz-in
Available Options
Hot/Cold
IP67
Available Online
View Series Details
8718 Series
NEMA 34
Frame Size
NEMA 34 (3.390 in)
Step Angle
1.8°
Length
2.64 to 5 in
Holding Torque
433.33 to 1288.67 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

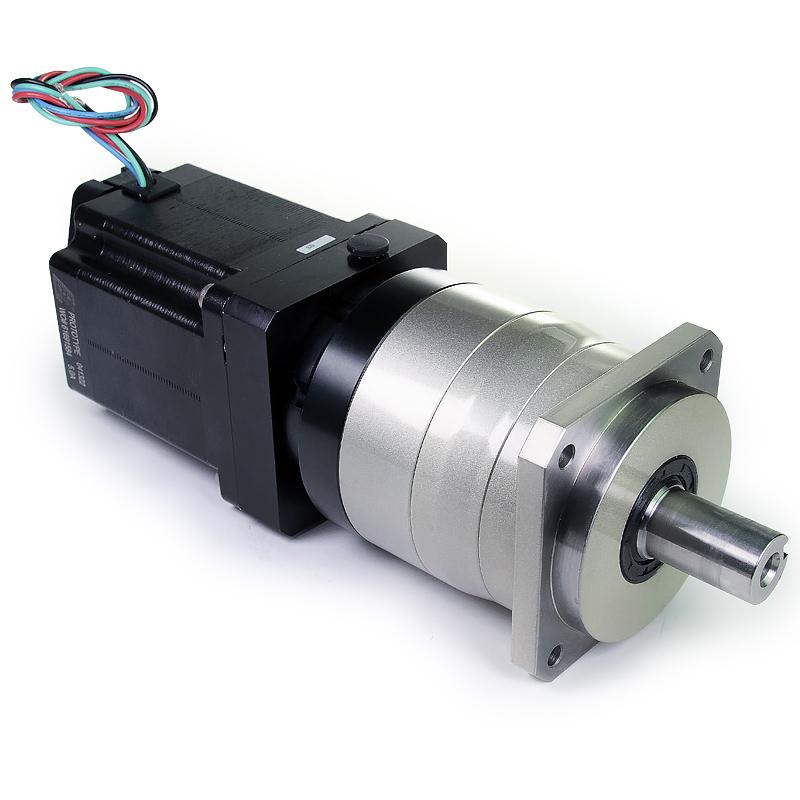

X8718 Series
NEMA 34
Frame Size
NEMA 34 (3.390 in)
Step Angle
1.8°
Length
2.66 to 4.94 in
Holding Torque
679.74 to 1741.83 oz-in
Available Options
Hot/Cold
IP67
Available Online
View Series Details
