LN23 SERIES

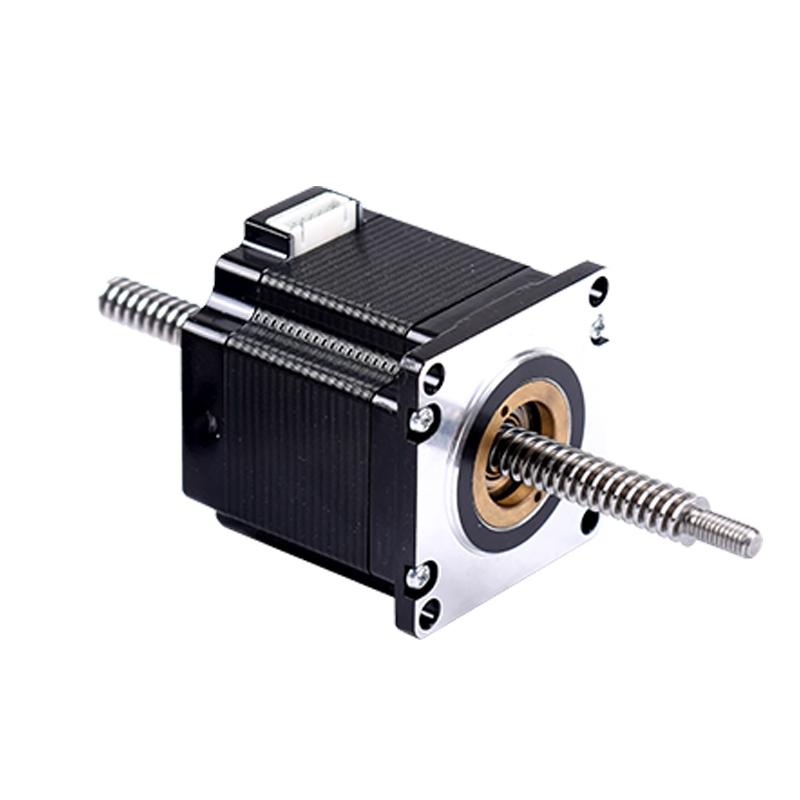

LN23S4150-E09102-400MN

Motor Configuration:

Screw

Ø: 0.380 in Lead: 0.400 in (E09102)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish


Unit Price:

$150.00

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

Part Number:

LN23S4150-E09102-400MN

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size2.220 in
Motor Length1.770 in
Rated Current1.5 AMP
Motor Step Angle1.8°
Screw Lead0.400 in
Screw Diameter0.380 in
Screw Length15.750 in
Linear Travel Per Step0 in
Resistance2.9 ohm
Rotor Inertia0.984 oz-in²
Windingbipolar
Weight1.06 lbs

Motor Dimensions

Dimension A1.770 in
Dimension L (Lx + Lu)15.750 in (±0.060 in)

Performance Chart

LN23S4150 with E09102 screw
24 VDC, 1.5 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U0.512 in
Dimension TM6x1

Leadscrew End Finish (Back)

No End Finish

DimensionsN/A

Downloads

LN23S4150-E09102-400MN Configured Datasheet (PDF)
