LN17 SERIES

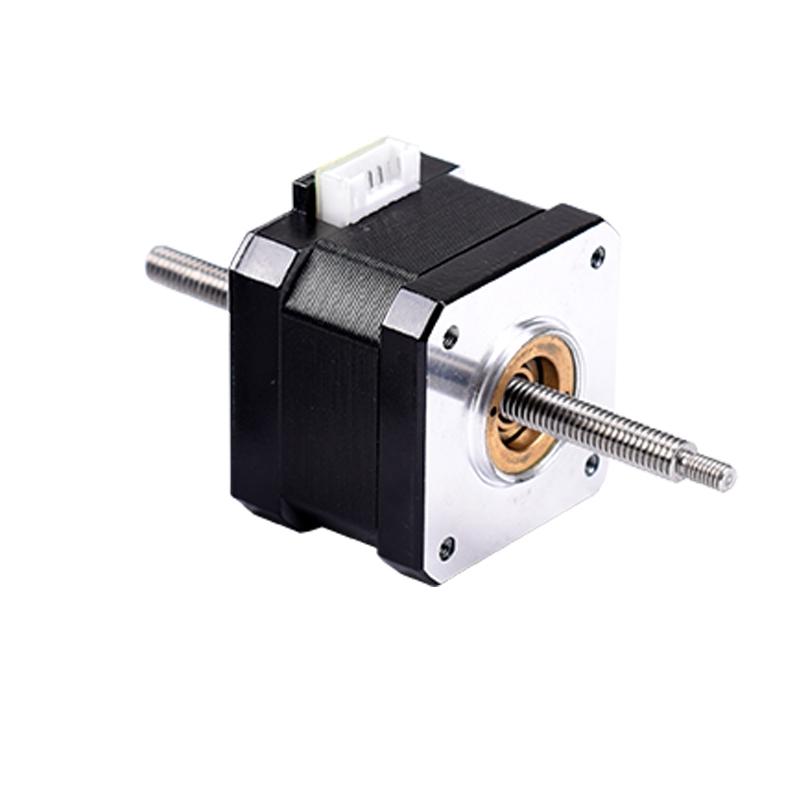

LN17D4100-E06008-300MN

Motor Configuration:

Screw

Ø: 0.250 in Lead: 0.031 in (E06008)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish


Unit Price:

$125.68

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

Part Number:

LN17D4100-E06008-300MN

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size1.670 in
Motor Length1.350 in
Rated Current1 AMP
Motor Step Angle1.8°
Screw Lead0.031 in
Screw Diameter0.250 in
Screw Length11.810 in
Linear Travel Per Step0 in
Resistance4.3 ohm
Rotor Inertia0.208 oz-in²
Windingbipolar
Weight0.461 lbs

Motor Dimensions

Dimension A1.350 in
Dimension L (Lx + Lu)11.810 in (±0.060 in)

Performance Chart

LN17D4100 with E06008 screw
24 VDC, 1 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U0.276 in
Dimension TM4X0.7

Leadscrew End Finish (Back)

No End Finish

DimensionsN/A

Downloads

LN17D4100-E06008-300MN Configured Datasheet (PDF)
Download
