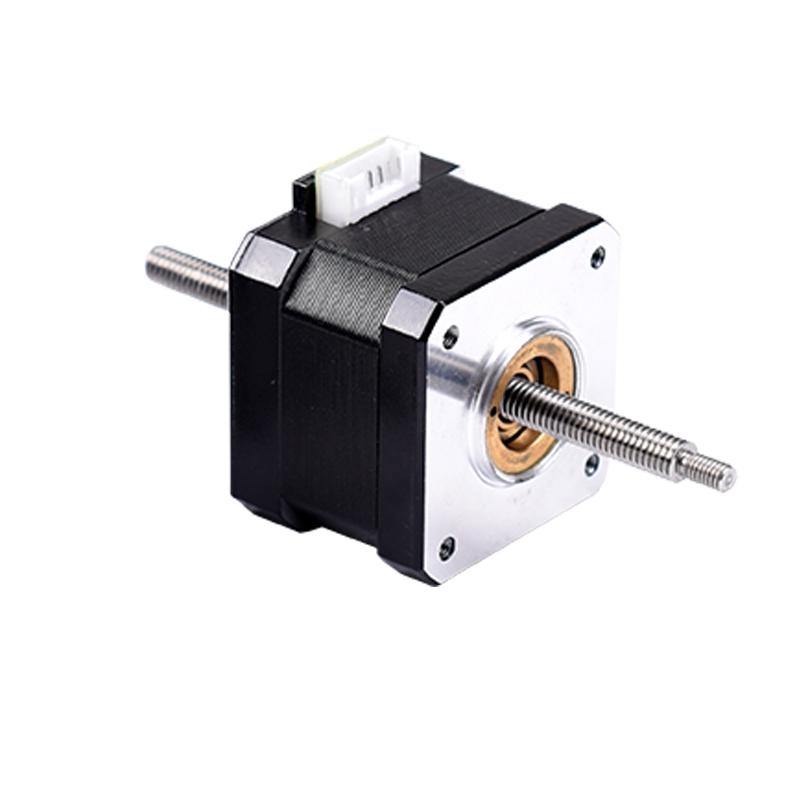

LN17 SERIES
LN17D2100-W0601-300MN

Motor Configuration:

Screw

Ø: 0.240 in Lead: 0.039 in (W0601)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish

Unit Price:

$135.15

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

Part Number:

LN17D2100-W0601-300MN

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size1.670 in
Motor Length1.570 in
Rated Current1 AMP
Motor Step Angle1.8°
Screw Lead0.039 in
Screw Diameter0.240 in
Screw Length11.810 in
Linear Travel Per Step0 in
Resistance3.9 ohm
Rotor Inertia0.312 oz-in²
Windingbipolar
Weight0.619 lbs

Motor Dimensions

Dimension A1.570 in
Dimension L (Lx + Lu)11.810 in (±0.060 in)

Performance Chart

LN17D2100 with W0601 screw
24 VDC, 1 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U0.276 in
Dimension TM4x0.7

Leadscrew End Finish (Back)

No End Finish

DimensionsN/A

Downloads

LN17D2100-W0601-300MN Configured Datasheet (PDF)
