LE14 SERIES

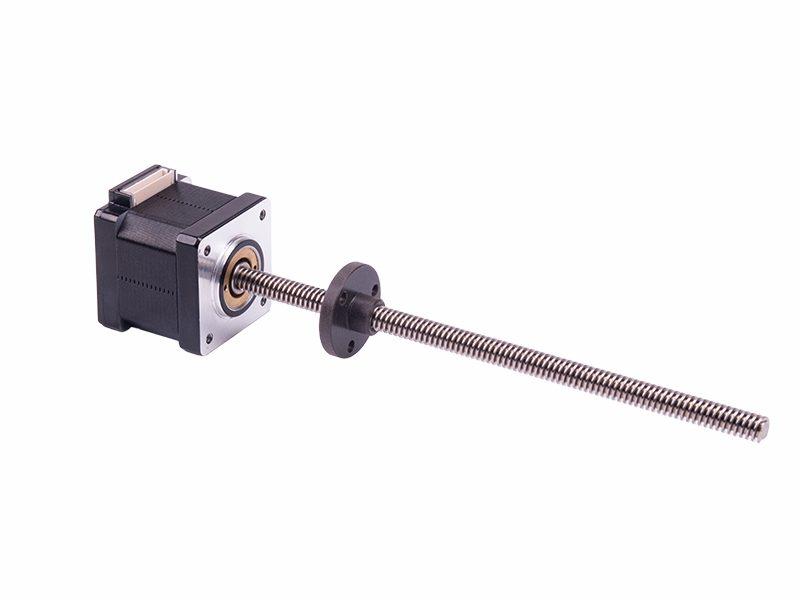

LE14S3075-E06127-200N-AR

Motor Configuration:

Screw

Ø: 0.250 in Lead: 0.500 in (E06127)

Screw Length

Screw End Finish

No End Finish

Nut

Circular Flange (AR)


Unit Price:

$181.15

Inventory:

5 Available in 3 Weeks

Ships:

3 Weeks

Part Number:

LE14S3075-E06127-200N-AR

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size1.390 in
Motor Length1.380 in
Rated Current0.75 AMP
Motor Step Angle1.8°
Screw Lead0.500 in
Screw Diameter0.250 in
Screw Length7.870 in
Linear Travel Per Step0 in
Resistance6 ohm
Rotor Inertia0.109 oz-in²
Windingbipolar
Weight0.5 lbs

Motor Dimensions

Dimension A1.380 in
Dimension L (Lx + Lu)7.870 in (±0.060 in)

Performance Chart

LE14S3075 with E06127 screw
24 VDC, 0.75 AMP/Phase

Nut Dimension

TitleAR
Flange TypeCircular Flange
Nut StyleFree Running

Leadscrew End Finish (Front)

No End Finish

DimensionsN/A
