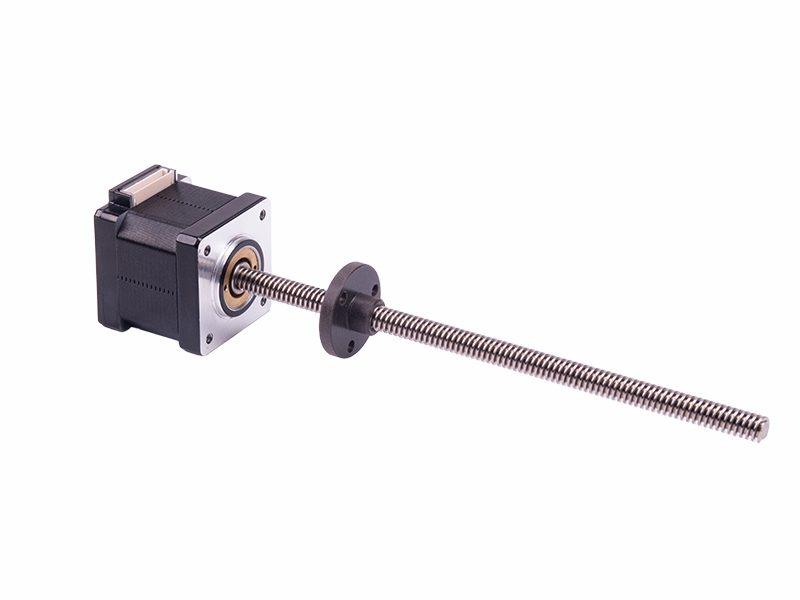

LE14 Series
Features and Benefits:
- External Nut Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 14 (1.390 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.07 to 1.38 in Motor Length
- 0.118 to 0.5 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LE14S1100-E06063-200N-AR | 1.390 in | 1.070 in | 1 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LE14S1100-E06127-200N-AR | 1.390 in | 1.070 in | 1 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LE14S1100-T6503-200N-AR | 1.390 in | 1.070 in | 1 AMP | 0.118 in | 0.260 in | 0.00059 in | Online |
| LE14S3075-E06063-200N-AR | 1.390 in | 1.380 in | 0.75 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LE14S3075-E06127-200N-AR | 1.390 in | 1.380 in | 0.75 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LE14S3075-T6503-200N-AR | 1.390 in | 1.380 in | 0.75 AMP | 0.118 in | 0.260 in | 0.00059 in | Online |
| LE14S3150-E06063-200N-AR | 1.390 in | 1.380 in | 1.5 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LE14S3150-E06127-200N-AR | 1.390 in | 1.380 in | 1.5 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LE14S3150-T6503-200N-AR | 1.390 in | 1.380 in | 1.5 AMP | 0.118 in | 0.260 in | 0.00059 in | Online |
Performance Chart
- LE14S1100-E06063-200N-AR
- LE14S1100-E06127-200N-AR
- LE14S1100-T6503-200N-AR
- LE14S3075-E06063-200N-AR
- LE14S3075-E06127-200N-AR
- LE14S3075-T6503-200N-AR
- LE14S3150-E06063-200N-AR
- LE14S3150-E06127-200N-AR
- LE14S3150-T6503-200N-AR

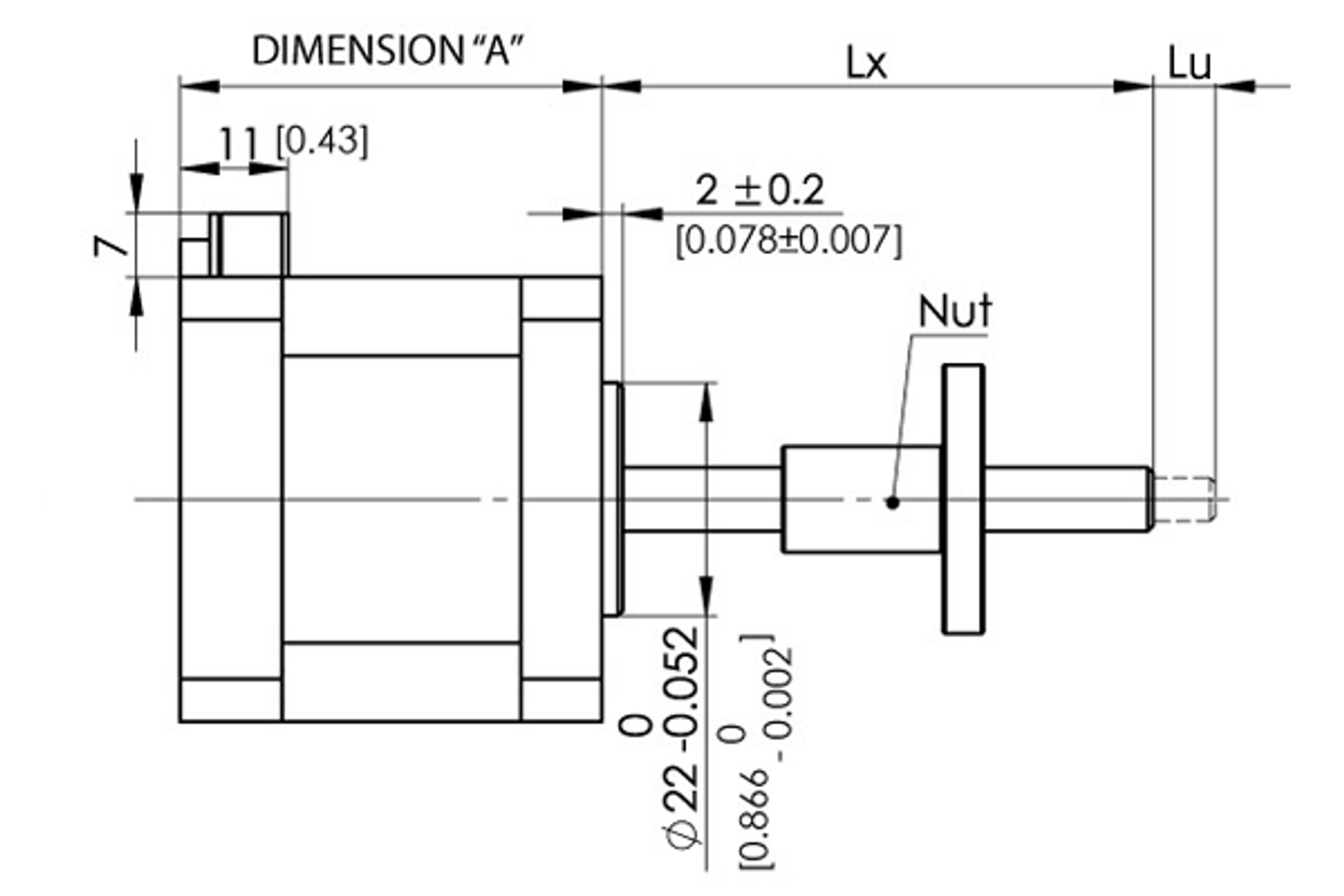

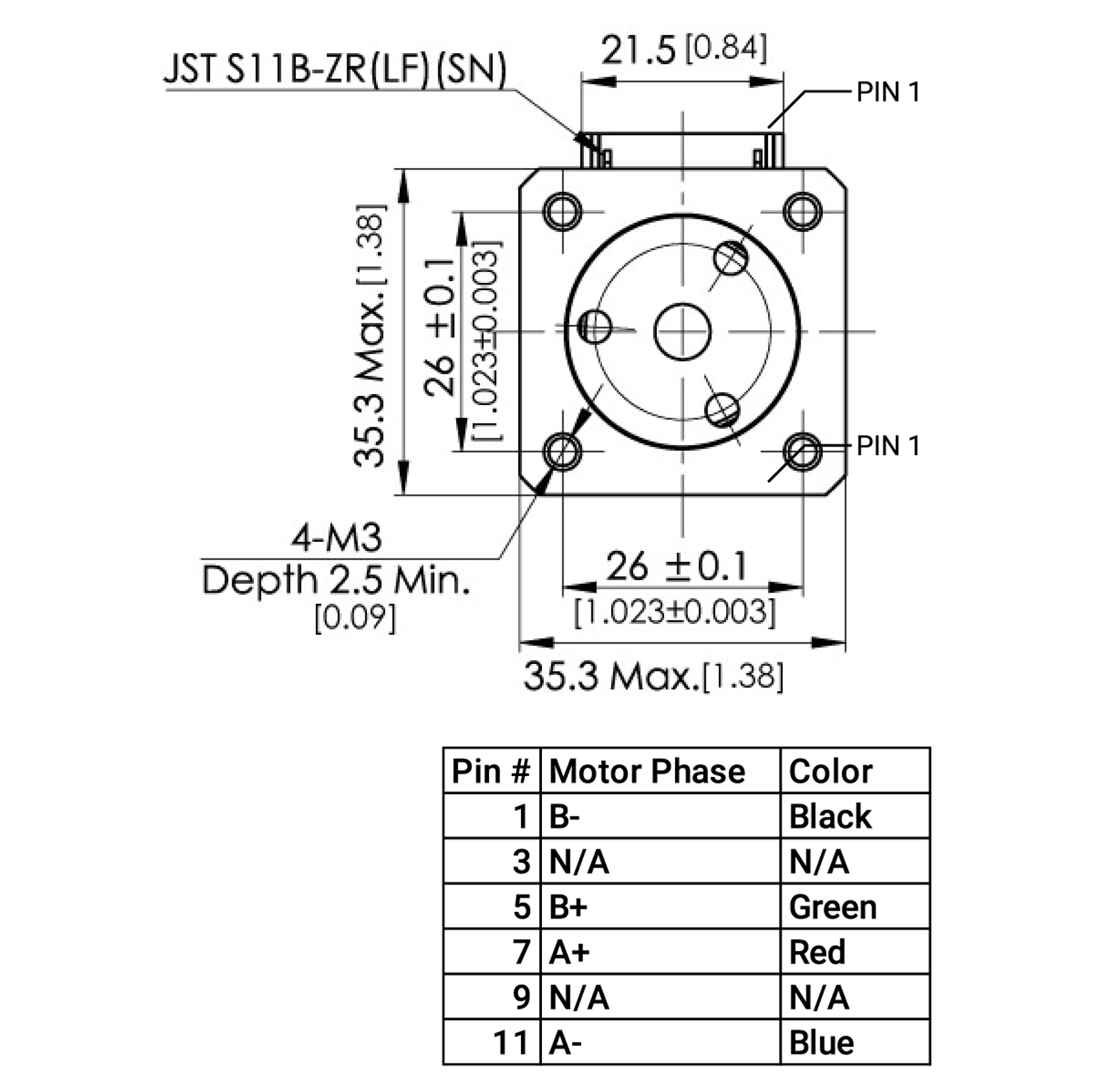

Dimensions
| Model | DIM. A (length) in |
|---|---|
| LE14S1100-E06063-200N-AR | 1.070 in |
| LE14S1100-E06127-200N-AR | 1.070 in |
| LE14S1100-T6503-200N-AR | 1.070 in |
| LE14S3075-E06063-200N-AR | 1.380 in |
| LE14S3075-E06127-200N-AR | 1.380 in |
| LE14S3075-T6503-200N-AR | 1.380 in |
| LE14S3150-E06063-200N-AR | 1.380 in |
| LE14S3150-E06127-200N-AR | 1.380 in |
| LE14S3150-T6503-200N-AR | 1.380 in |
