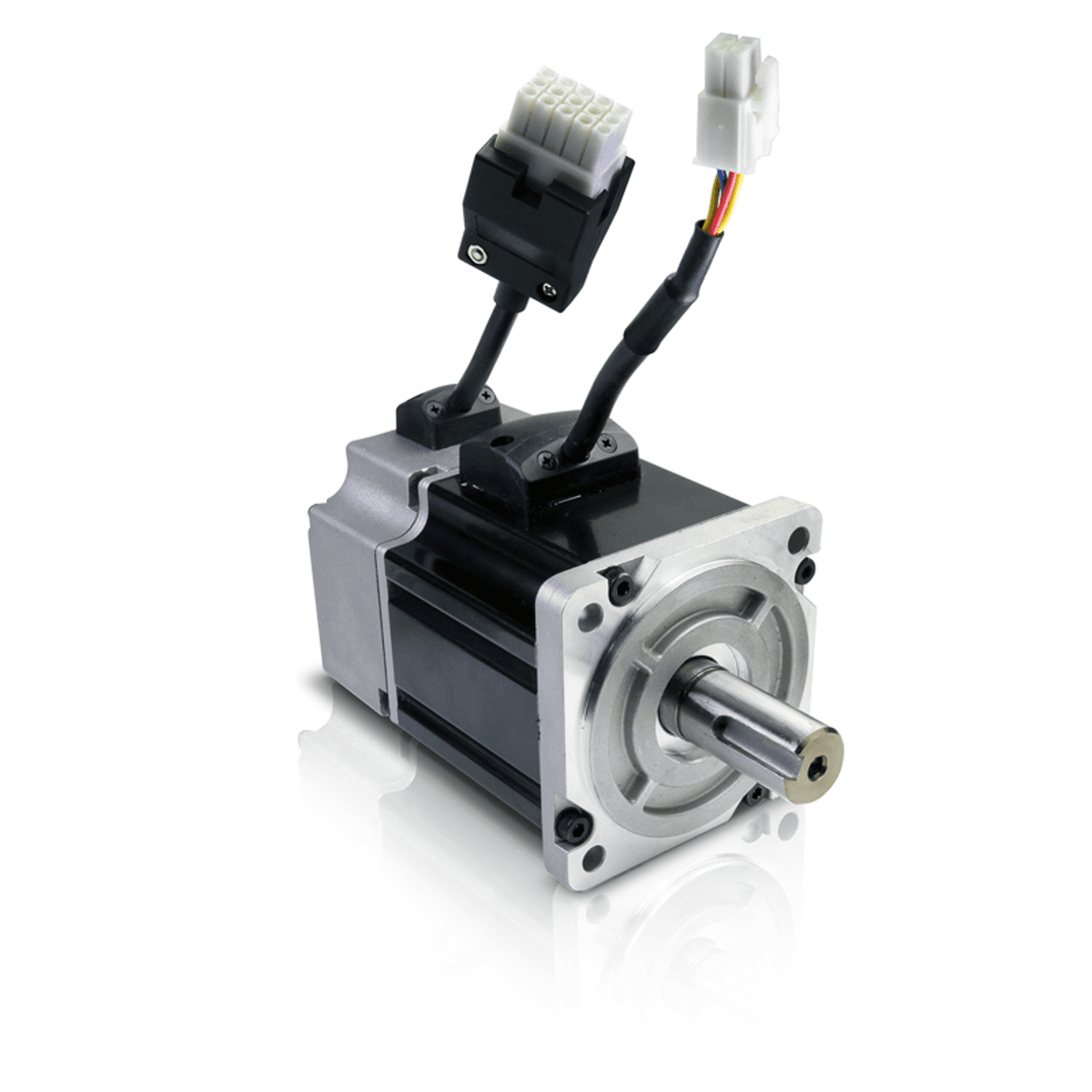

SBL80AC Series
SBL80A2-01
Servo BLDC Motor

Specifications:
  • 3.150 in Frame Size
  • 3 A Rated Current
  • 254.9 oz-in Rated Torque
  • 220 VDC Rated Voltage

Unit Price:

$125.50

Inventory:

10 Available

Part Number:

SBL80A2-01

* null product will be added to order

Looking For Higher Volume?

Motor Specifications

Frame Size3.150 in
Rated Voltage220 VDC
Rated Output Power 550 W
Rated Speed3000 RPM
Max Mechanical Speed6000 RPM
Rated Torque254.9 oz-in
Peak Torque651.41 oz-in
Rated Current3 A
Peak Current8.3 A rms
Voltage Constant 37.3 V rms/ K rpm
Torque Constant82.98459098 oz-in/A rms
Winding Resistance2.47 Ohm±10%@20℃ Line-Line
Winding Inductance 13.3 mH Line-Line
Max. Shaft Load-Radial53.952 lbf
Weight2.205 lbs
BrakeNO
Rotor Inertia3.44 oz-in²
Encoder Type2500-Line Incr.
Motor Length4.570 in
Rotor Poles8
ConnectionMOLEX CONNECTOR
Insulation ClassClass B (130 C)
IP RatingIP65
Coil Diameter0.330 in
Coil Turns252

Dimensions

ModelDIM. A (length) in
SBL80A2-014.570 in

Torque Curves

  • Peak Range
  • Continuous Range

Speed

RPM

SBL80AC Series

Downloads

SBL80A2-01 Configured Datasheet (PDF)
Download
Servo Motor Catalog (PDF)
Download
