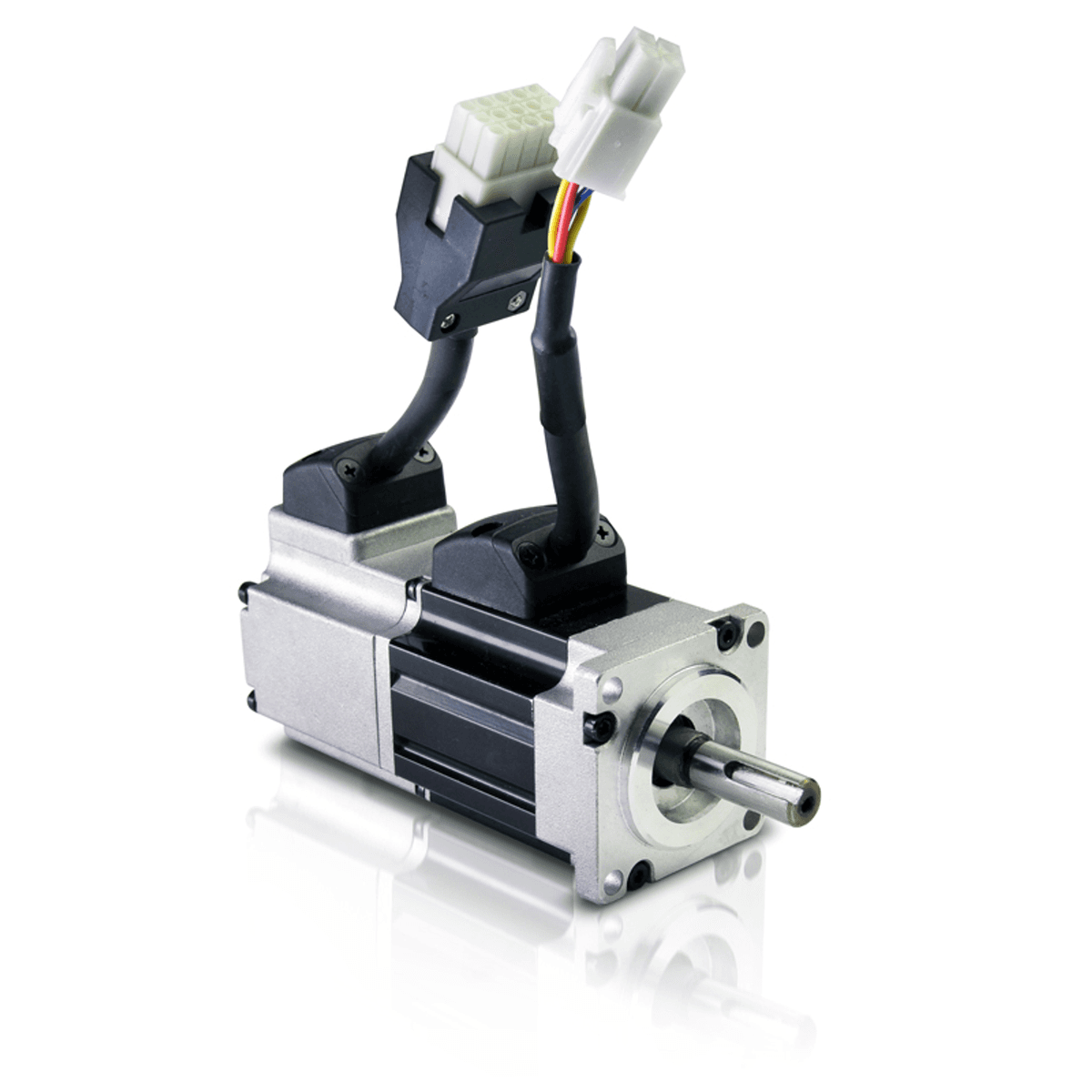

SBL40A2-01
Specifications:
- 1.570 in Frame Size
- 1.2 A Rated Current
- 45.32 oz-in Rated Torque
- 220 VAC Rated Voltage
Unit Price:
$393.82
Inventory:
10 Available
Part Number:
SBL40A2-01
* null product will be added to order
Looking For Higher Volume?
Motor Specifications
Frame Size | 1.570 in |
Rated Voltage | 220 VAC |
Rated Output Power | 100 W |
Rated Speed | 3000 RPM |
Max Mechanical Speed | 6000 RPM |
Rated Torque | 45.32 oz-in |
Peak Torque | 131.7 oz-in |
Rated Current | 1.2 A |
Peak Current | 3.6 A rms |
Voltage Constant | 16.6 V rms/ K rpm |
Torque Constant | 38.37683303 oz-in/A rms |
Winding Resistance | 10.03 Ohm |
Winding Inductance | 11.85 mH |
Max. Shaft Load-Radial | 13.488 lbf |
Weight | 2.205 lbs |
Brake | NO |
Rotor Inertia | 0.234 oz-in² |
Encoder Type | Incremental |
CPR Count | 2500 Pulse/Rev |
Motor Length | 4.290 in |
Rotor Pole Count | 8 pole |
Connection | MOLEX CONNECTOR |
Insulation Class | Class B (130 C) |
IP Rating | IP65 (Shaft Seal must be installed to achieve IP Rating) |
Dimensions
Model | DIM. A (length) in |
---|---|
SBL40A2-01 | 4.290 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
SBL40AC Series
Downloads
SBL40A2-01 Configured Datasheet (PDF)
Servo Motor Catalog (PDF)
