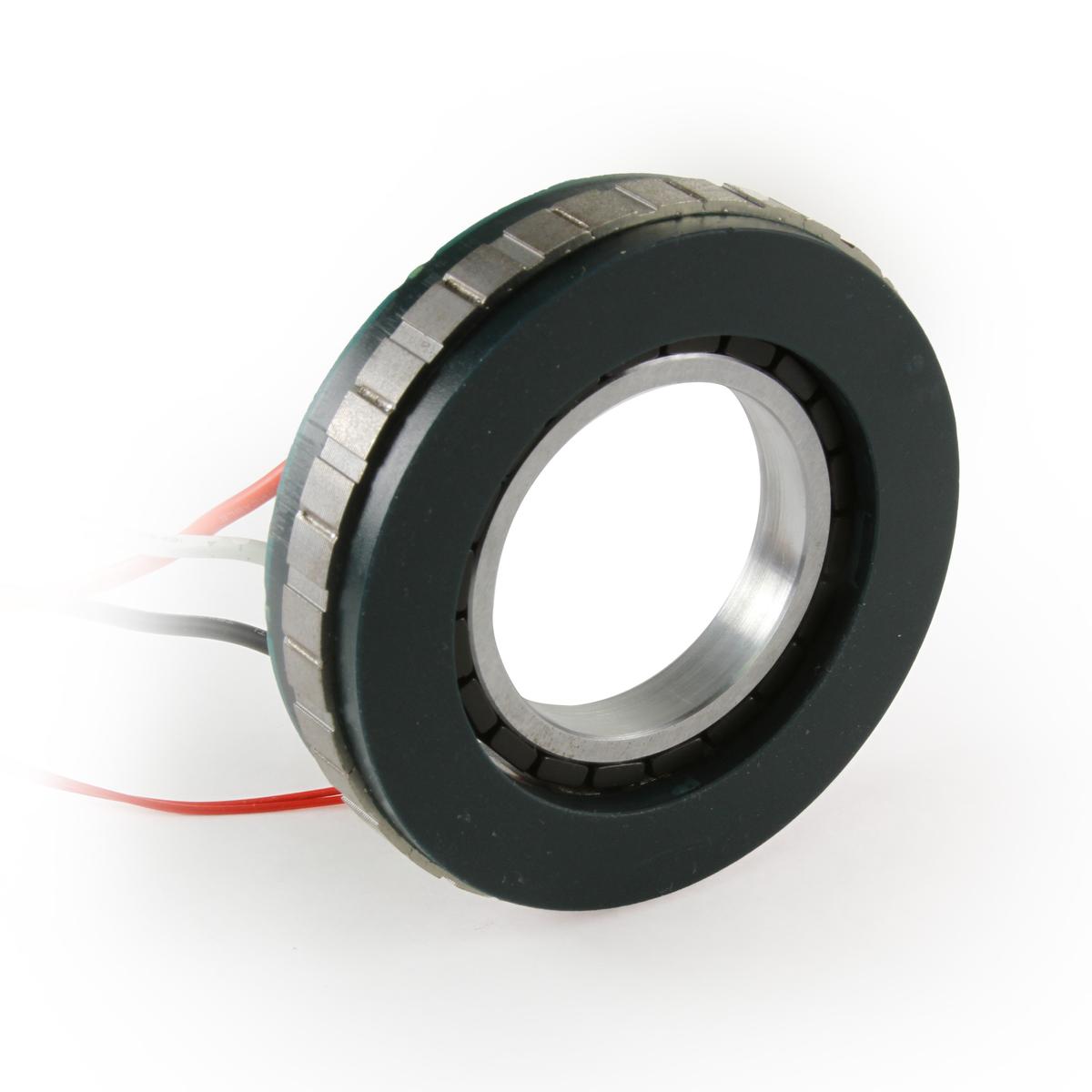

XCT085 Series
85mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 3.350 in Frame Size
  • 5.16 to 6.55 A Rated Current
  • 179.85 to 427.67 oz-in Rated Torque
  • 48 VDC Rated Voltage
  • 0.31 to 1.02 in Length

Models

Model #Frame sizeInput VoltageRated PowerRated SpeedRated TorqueRated CurrentWeight, lbsAvailability
XC-T085CN008-48A3.350 in48 VDC267 W2003 RPM179.85 oz-in6.55 A0.728 lbsQuote
XC-T085CN026-48A3.350 in48 VDC200 W633 RPM427.67 oz-in5.16 A1.587 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
