XCT-085 Series
XCT-085CN026-24A

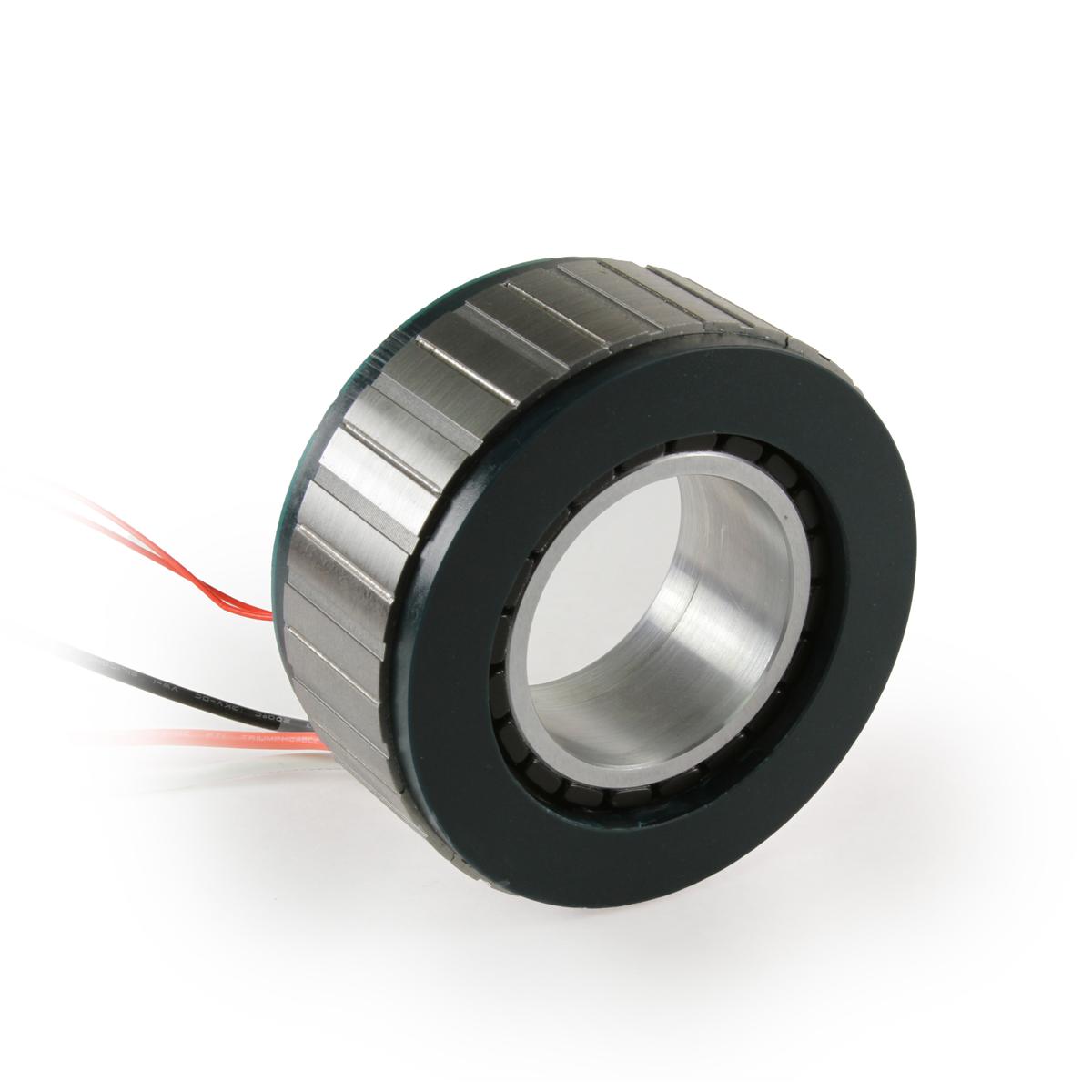

85mm Frameless BLDC Motor

Featured product media

Quick Facts

XCT-085CN026-24A Frameless BLDC Motors

Specifications:
  • 3.350 in Frame Size
  • 10.96 A Rated Current
  • 446.08 oz-in Rated Torque
  • 24 VDC Rated Voltage
  • 1.020 in Length
Features and Benefits:
  • Highly Integrated
  • High Torque
  • High Efficiency
  • Optional Hall Sensors

Motor Specifications

Phase3
Number of Poles20
Frame Size3.350 in
Stator Thickness1.020 in
Rated Voltage24 VDC
Rated Output Power 409 W
Rated Speed1240 RPM
Max Speed (Consult with Lin for greater speeds)1900 RPM
Rated Torque446.08 oz-in
Rated Current10.96 A
Max Torque1274.51 oz-in
Resistance0.373 ohm
Terminal Inductance 0.86 mH
Torque Constant46.024 oz-in/A
Rotor Inertia30.84 oz-in²
Weight1.587 lbs
Back EMF Constant0.325 V/kRPM
Electrical Time Constant2.31 ms
Mechanical Time Constant20.85 ms

Dimensions

ModelStator Thickness in MAX
XCT-085CN026-24A1.020 in

Torque Curves

  • Peak Range
  • Continuous Range

Speed

Motor Operating Specifications

Insulation ClassClass F 155 degree C
Dielectric Strength500 VDC for 1 minute
Insulation Resistance100 Ohm Min. 500 VDC
Ambient Operating Temperature-22 °F to 185.00 °F
Storage Temperature-4 °F to 212.00 °F
Humidity Range (%) 85% (RH) non-condensing

XCT-085 Series

Downloads

XCT-085CN026-24A Configured Datasheet (PDF)
Frameless BLDC Mounting and Installation Guide V2 (PDF)
