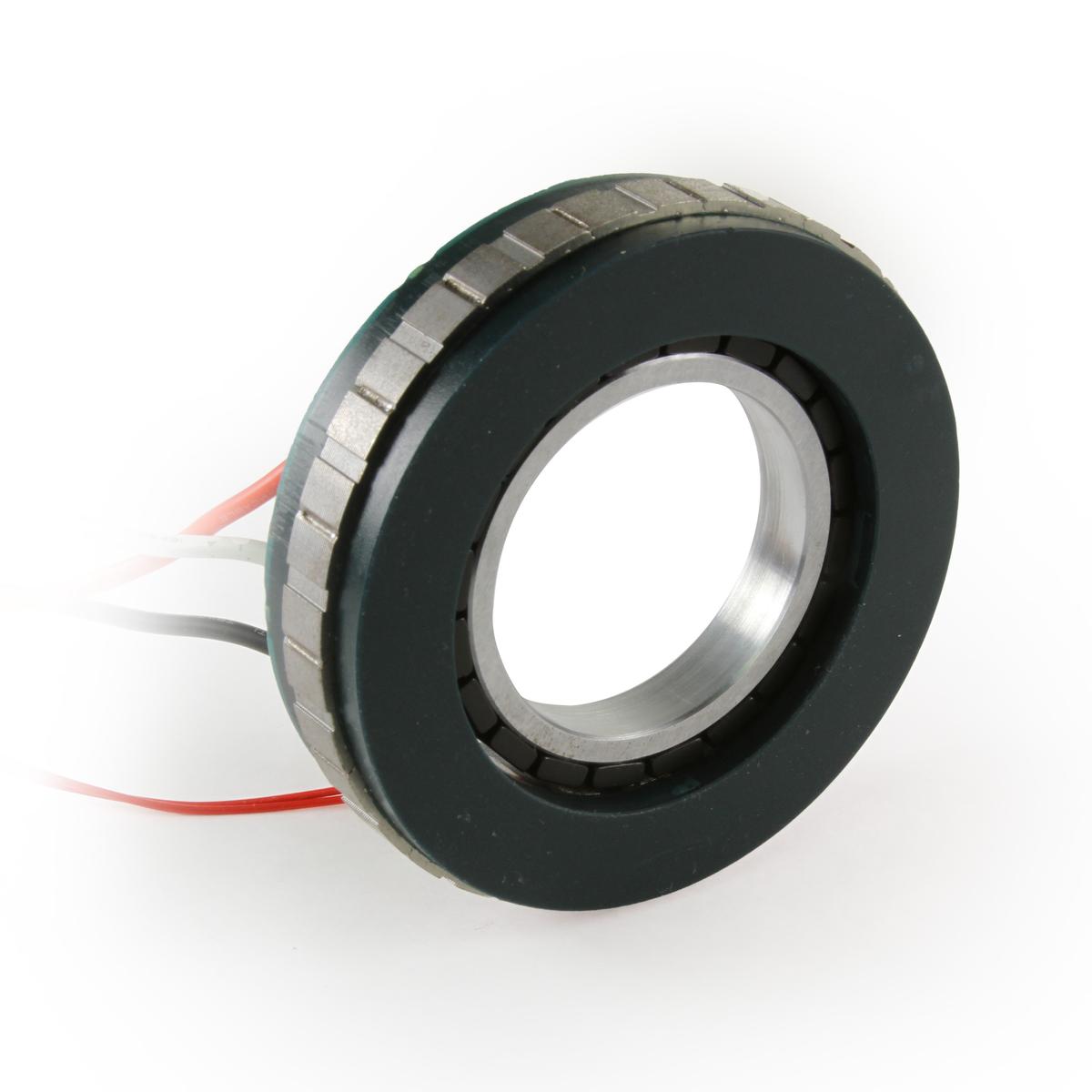

XCT-060 Series
60mm Frameless BLDC Motor

Features and Benefits:

Highly Integrated
High Torque
High Efficiency
Optional Hall Sensors

Specifications:

2.360 in Frame Size
8.8 to 11.49 A Rated Current
72.22 to 160.02 oz-in Rated Torque
24 VDC Rated Voltage
0.31 to 1.02 in Length

Models

Model #	Frame size	Phase	Input Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	Resistance	Inertia, oz-in²	Weight, lbs	Availability
XCT-060CN008-24A	2.360 in	3	24 VDC	64 W	1200 RPM	72.22 oz-in	11.49 A	0.22	2.52 oz-in²	0.403 lbs	Quote
XCT-060CN026-24A	2.360 in	3	24 VDC	142 W	1200 RPM	160.02 oz-in	8.8 A	0.44	8.26 oz-in²	0.875 lbs	Quote

Torque Curves

Peak Range
Continuous Range

Speed

Peak Range
Continuous Range

Speed

Motor Operating Specifications

Insulation Class	Class F 155 degree C
Dielectric Strength	500 VDC for 1 minute
Insulation Resistance	100 Ohm Min. 500 VDC
Ambient Operating Temperature	-22 °F to 185.00 °F
Storage Temperature	-4 °F to 212.00 °F
Humidity Range (%)	85% (RH) non-condensing

Downloads

Frameless BLDC Mounting and Installation Guide V2 (PDF)
