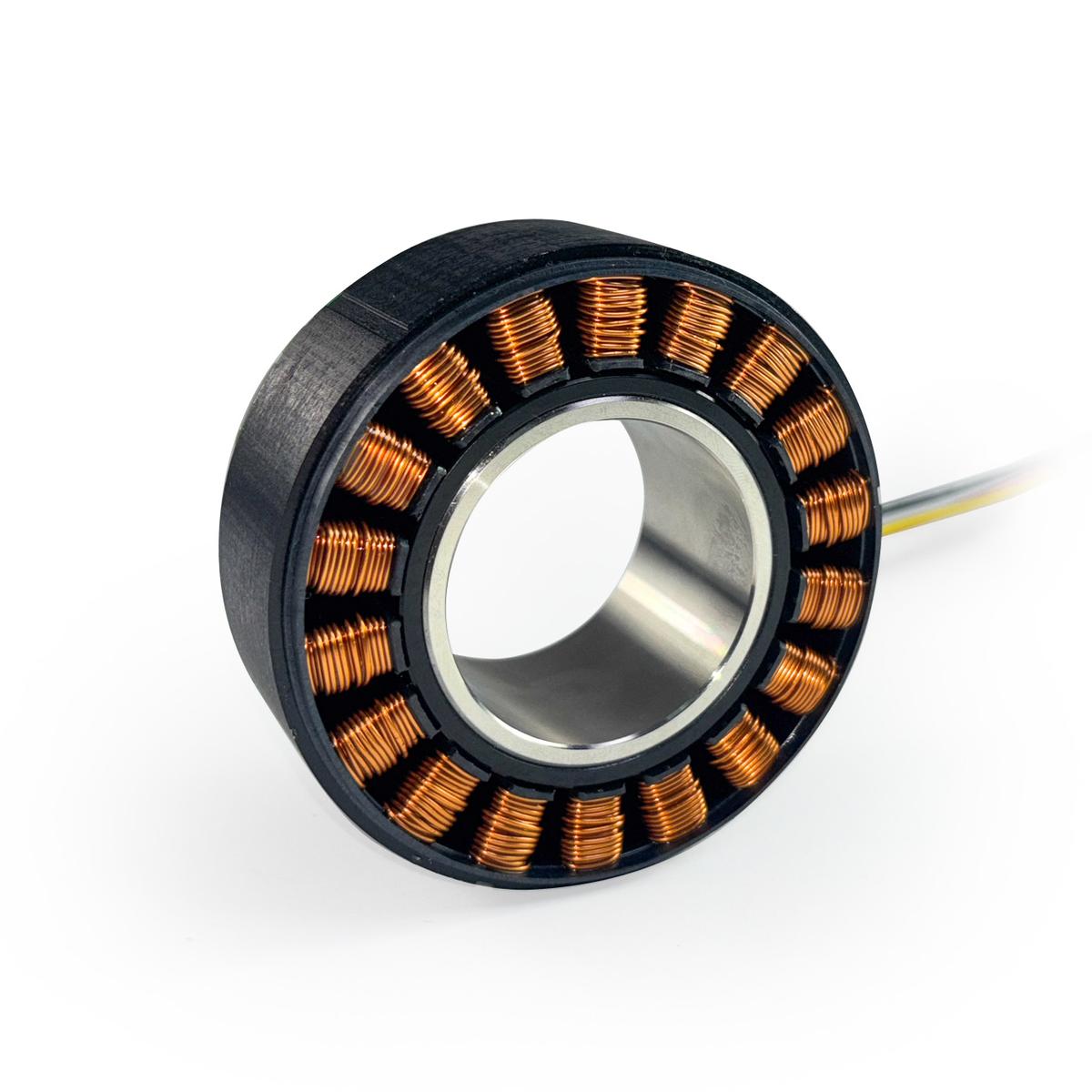

PCT094 Series
94mm Frameless BLDC Motor

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Specifications:

3.700 in Frame Size
6.98 to 7.88 A Rated Current
161.44 to 594.77 oz-in Rated Torque
48 VDC Rated Voltage
0.32 to 1.04 in Length

Models

Model #	Frame size	Input Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	Weight, lbs	Availability
PC-T094CH008-48A	3.700 in	48 VDC	313 W	1945 RPM	218.08 oz-in	7.88 A	0.807 lbs	Quote
PC-T094CH008-48B	3.700 in	48 VDC	628 W	4084.7 RPM	208.17 oz-in	7.88 A	0.807 lbs	Quote
PC-T094CH008-48C	3.700 in	48 VDC	934 W	7800 RPM	161.44 oz-in	7.88 A	0.807 lbs	Quote
PC-T094CH013-48A	3.700 in	48 VDC	161 W	1313 RPM	165.69 oz-in	7.41 A	1.098 lbs	Quote
PC-T094CH013-48B	3.700 in	48 VDC	674 W	3136.9 RPM	290.3 oz-in	7.41 A	1.098 lbs	Quote
PC-T094CH013-48C	3.700 in	48 VDC	1050 W	5812 RPM	243.57 oz-in	7.41 A	1.098 lbs	Quote
PC-T094CH026-48A	3.700 in	48 VDC	277 W	629.4 RPM	594.77 oz-in	6.98 A	1.975 lbs	Quote
PC-T094CH026-48B	3.700 in	48 VDC	616 W	1489 RPM	559.37 oz-in	6.98 A	1.975 lbs	Quote
PC-T094CH026-48C	3.700 in	48 VDC	1056 W	2702.3 RPM	528.21 oz-in	6.98 A	1.975 lbs	Quote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
