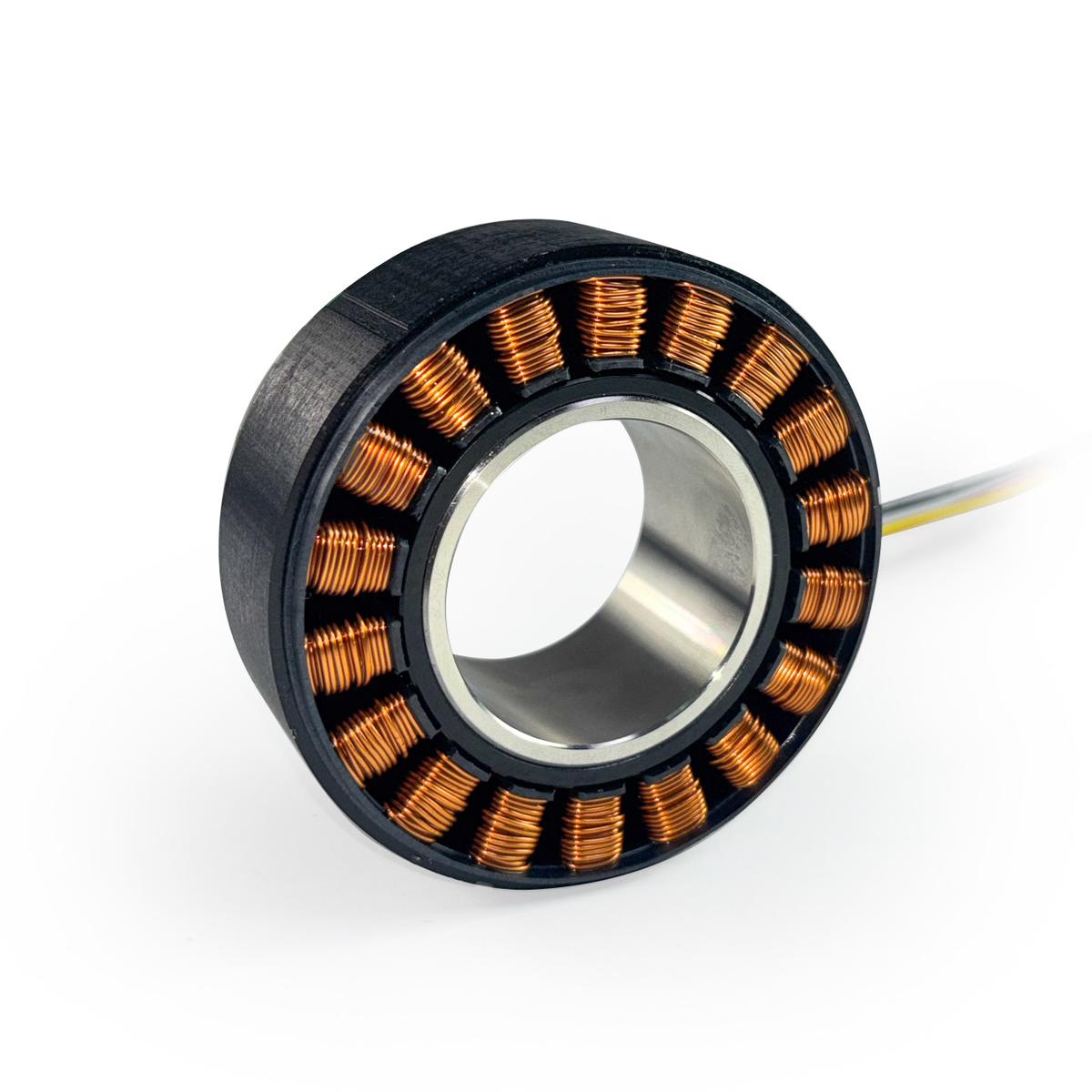

PCT068 Series
68mm Frameless BLDC Motor

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Specifications:

2.680 in Frame Size
4.03 to 4.7 A Rated Current
78.74 to 247.82 oz-in Rated Torque
48 VDC Rated Voltage
0.32 to 1.04 in Length

Models

Model #	Frame size	Input Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	Weight, lbs	Availability
PC-T068CH008-48A	2.680 in	48 VDC	166 W	2641.8 RPM	85.25 oz-in	4.7 A	0.381 lbs	Quote
PC-T068CH008-48B	2.680 in	48 VDC	339 W	5535.3 RPM	82.84 oz-in	4.7 A	0.381 lbs	Quote
PC-T068CH008-48C	2.680 in	48 VDC	454 W	7800 RPM	78.74 oz-in	4.7 A	0.381 lbs	Quote
PC-T068CH013-48A	2.680 in	48 VDC	163 W	1741.4 RPM	126.32 oz-in	4.37 A	0.534 lbs	Quote
PC-T068CH013-48B	2.680 in	48 VDC	335 W	3737 RPM	121.08 oz-in	4.37 A	0.534 lbs	Quote
PC-T068CH013-48C	2.680 in	48 VDC	533 W	6437.2 RPM	112.02 oz-in	4.37 A	0.534 lbs	Quote
PC-T068CH026-48A	2.680 in	48 VDC	149 W	814.7 RPM	247.82 oz-in	4.03 A	0.992 lbs	Quote
PC-T068CH026-48B	2.680 in	48 VDC	329 W	1850 RPM	240.74 oz-in	4.03 A	0.992 lbs	Quote
PC-T068CH026-48C	2.680 in	48 VDC	553 W	3268.5 RPM	229.41 oz-in	4.03 A	0.992 lbs	Quote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
