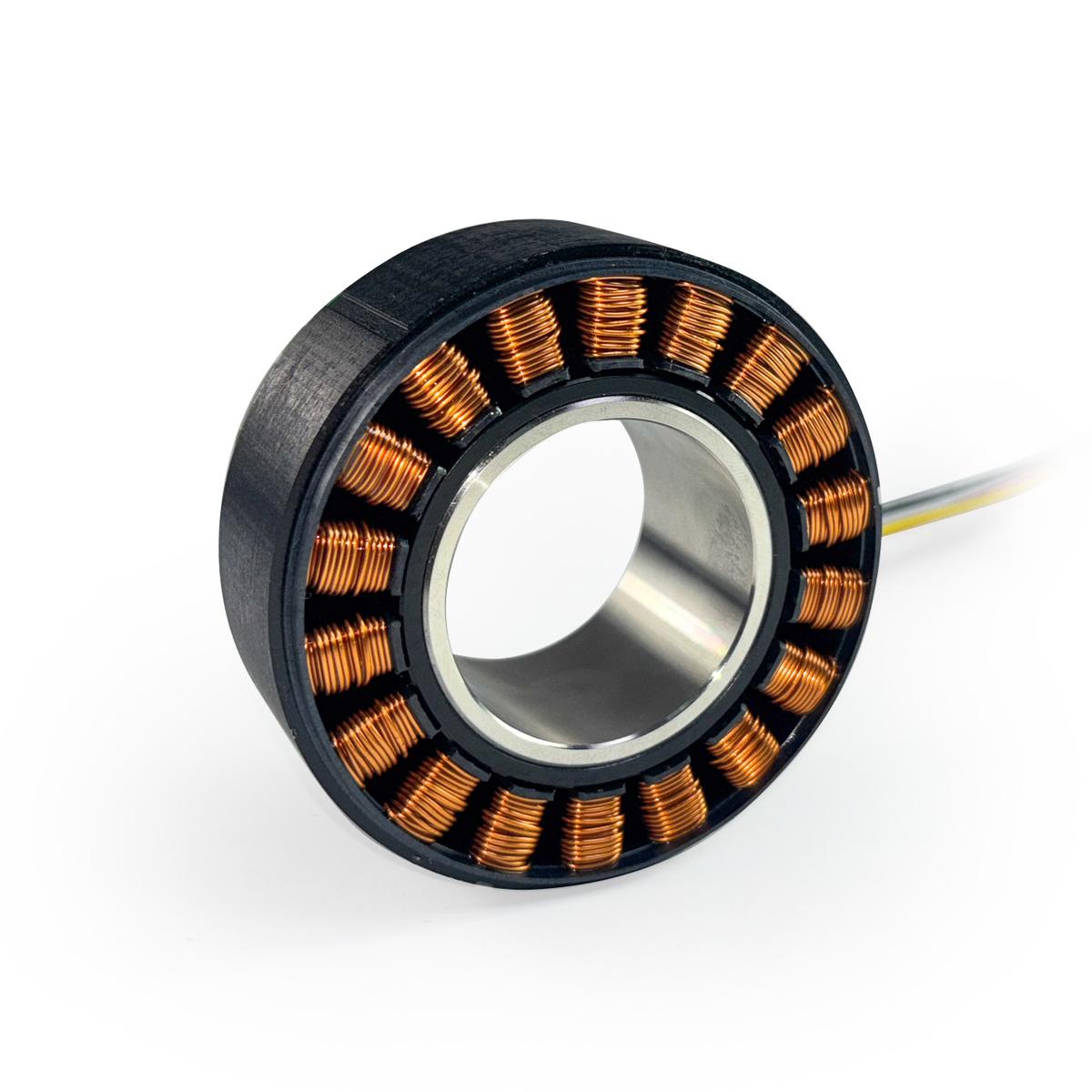

PCT050 Series
50mm Frameless BLDC Motor

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Specifications:

1.970 in Frame Size
2.58 to 3.3 A Rated Current
34.41 to 102.24 oz-in Rated Torque
48 VDC Rated Voltage
0.32 to 1.04 in Length

Models

Model #	Frame size	Input Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	Weight, lbs	Availability
PC-T050CH008-48A	1.970 in	48 VDC	130 W	4645 RPM	37.95 oz-in	3.3 A	0.217 lbs	Quote
PC-T050CH008-48B	1.970 in	48 VDC	165 W	6471 RPM	34.41 oz-in	3.3 A	0.217 lbs	Quote
PC-T050CH008-48C	1.970 in	48 VDC	199 W	7800 RPM	34.55 oz-in	3.3 A	0.217 lbs	Quote
PC-T050CH013-48A	1.970 in	48 VDC	131 W	3209 RPM	54.8 oz-in	3.09 A	0.3 lbs	Quote
PC-T050CH013-48B	1.970 in	48 VDC	260 W	6707 RPM	52.4 oz-in	3.09 A	0.3 lbs	Quote
PC-T050CH013-48C	1.970 in	48 VDC	283 W	7798 RPM	49 oz-in	3.09 A	0.3 lbs	Quote
PC-T050CH026-48A	1.970 in	48 VDC	414 W	6003 RPM	93.32 oz-in	2.58 A	0.551 lbs	Quote
PC-T050CH026-48B	1.970 in	48 VDC	114 W	1506 RPM	102.24 oz-in	2.58 A	0.551 lbs	Quote
PC-T050CH026-48C	1.970 in	48 VDC	253 W	3411 RPM	100.4 oz-in	2.58 A	0.551 lbs	Quote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
