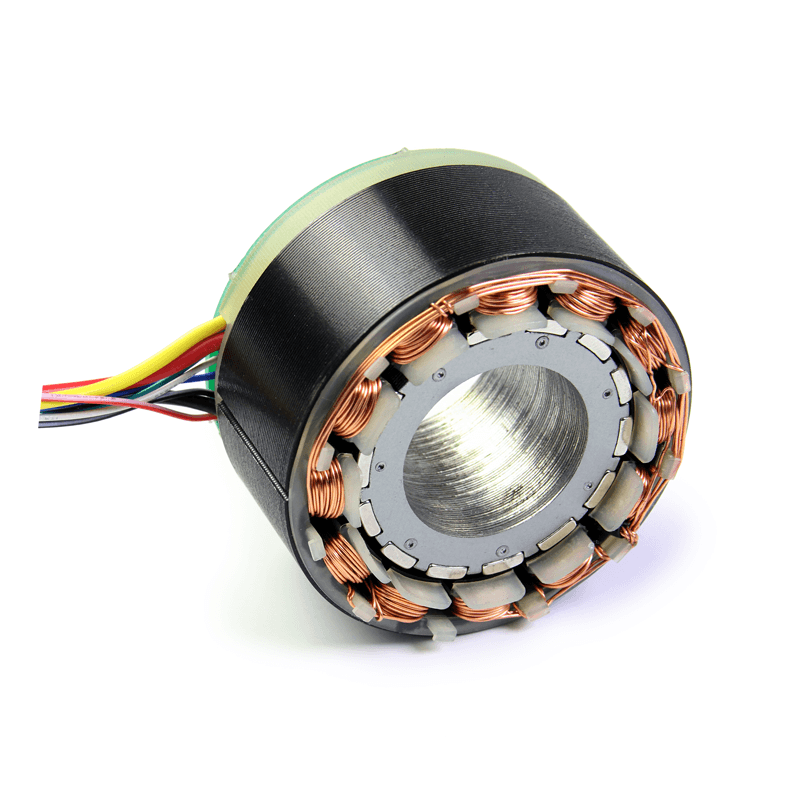

FCP60 Series
60mm Frameless BLDC Motor

Features and Benefits:
  • High torque to weight ratio
  • Compact & lightweight
  • Hall sensor and thermistor available
Specifications:
  • 2.360 in Frame Size
  • 3.3 to 5.2 A Rated Current
  • 84.26 to 84.97 oz-in Rated Torque
  • 48 to 96 VDC Rated Voltage
  • 0.99 in Length

Models

Model #Frame sizePhaseInput VoltageRated PowerRated SpeedRated TorqueRated CurrentResistanceInertia, oz-in²Weight, lbsAvailability
FCP-060CH025-48A2.360 in348 VDC215 W3428 RPM84.97 oz-in5.2 A0.492.85 oz-in²0.888 lbsQuote
FCP-060CH025-96A2.360 in396 VDC209 W3353 RPM84.26 oz-in3.3 A22.85 oz-in²0.888 lbsQuote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
