CL010CN025 Series

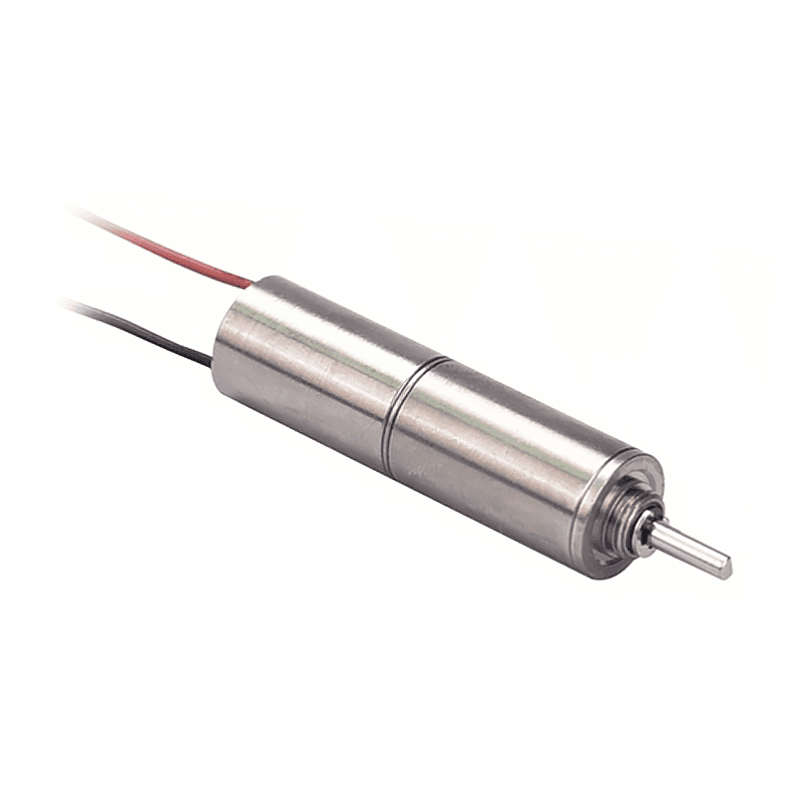

CL010CN025-06-G256
Coreless Brushed DC motor

Featured product media

Quick Facts

CL010CN025-06-G256 Coreless DC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.218 A Rated Current
  • 21.2418 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 1.700 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Gearhead
Weight0.045 lbs
Number of pole
Number of Phases
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 46 RPM
No Load Current47.1 mA
Nominal Speed33 RPM
Nominal Torque (Max Cont. Torque)21.2418 oz-in
Nominal Current (Max Cont. Current)0.218 A
Rated Speed33 RPM
Rated Torque21.2418 oz-in
Rated Current0.218 A
Stall Torque
Stall Current0.73 A
Max. Efficiency66%

Motor Characteristics

Terminal Resistance8.2 ohm
Terminal Inductance0.128 mH
Speed/Torque Gradient 1685.182 RPM/oz-in
Torque Constant
Speed Constant2010 RPM/V
Mechanical Time Constant4.07 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Bearings
Axial play0.008 in
Radial play0.003
Max. Axial Load
Max. Radial Load
Distance From Flange For Radial Load
Max Force For Press Fit
Max Speed (Mechanical)15000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Insulation Class
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)106.34 °F/W
Thermal resistance (Winding-Housing)51.44 °F/W
Thermal time constant motor135 s
Thermal time constant winding1.78 s

Gearhead Specifications

Type Of Gearhead
Gearhead Reduction Ratio
Nominal Reduction Ratio
Absolute Reduction Ratio
Number Of Stages4

Encoder Specifications

Encoder Type
Steps Per Turn
Counts Per Turn
Number Of Channels
Clock Rate
Time Out
Signal Protocol

Dimensions

ModelDIM. A (length) in MAX
CL010CN025-06-G2561.700 in

Performance Curve

CL010CN025-06-G256
@6 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

CL010CN025 Series

Downloads

CL010CN025-06-G256 Configured Datasheet (PDF)
