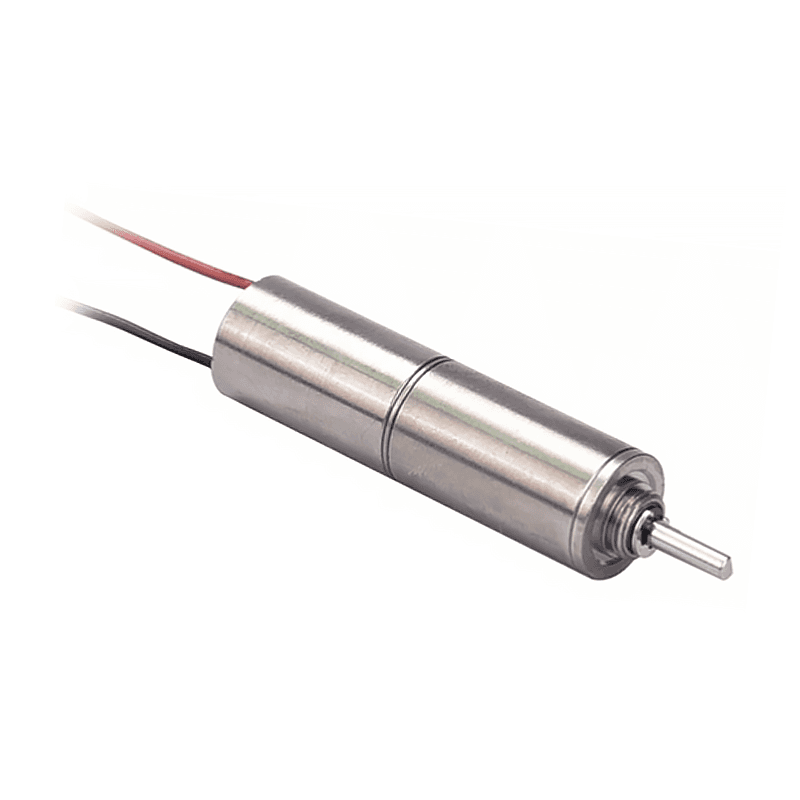

CL010CN017 SeriesCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
Specifications:
- 0.390 in Frame Size
- 0.048 to 0.357 A Rated Current
- 0.9913 to 9.7854 oz-in Rated Torque
- 6 to 12 VDC Nominal Voltage
- 1.29 to 1.59 in Length
Models
| Model # | Frame size | Length | Nominal Voltage | Rated Torque | No Load Speed | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|
| CL010CN017-06-64G | 0.390 in | 1.290 in | 6 VDC | 0.9913 oz-in | 201 RPM | NA | 0.035 lbs | 0.048 A | quote |
| CL010CN017-06-G64 | 0.390 in | 1.290 in | 6 VDC | 0.9913 oz-in | 201 RPM | NA | 0.035 lbs | 0.048 A | quote |
| CL010CN025-06-16G | 0.390 in | 1.470 in | 6 VDC | 3.1155 oz-in | 732 RPM | NA | 0.039 lbs | 0.357 A | quote |
| CL010CN025-12-64G | 0.390 in | 1.590 in | 12 VDC | 9.7854 oz-in | 206 RPM | NA | 0.042 lbs | 0.188 A | quote |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL010CN017-06-64G | 1.290 in |
| CL010CN017-06-G64 | 1.290 in |
| CL010CN025-06-16G | 1.470 in |
| CL010CN025-12-64G | 1.590 in |
