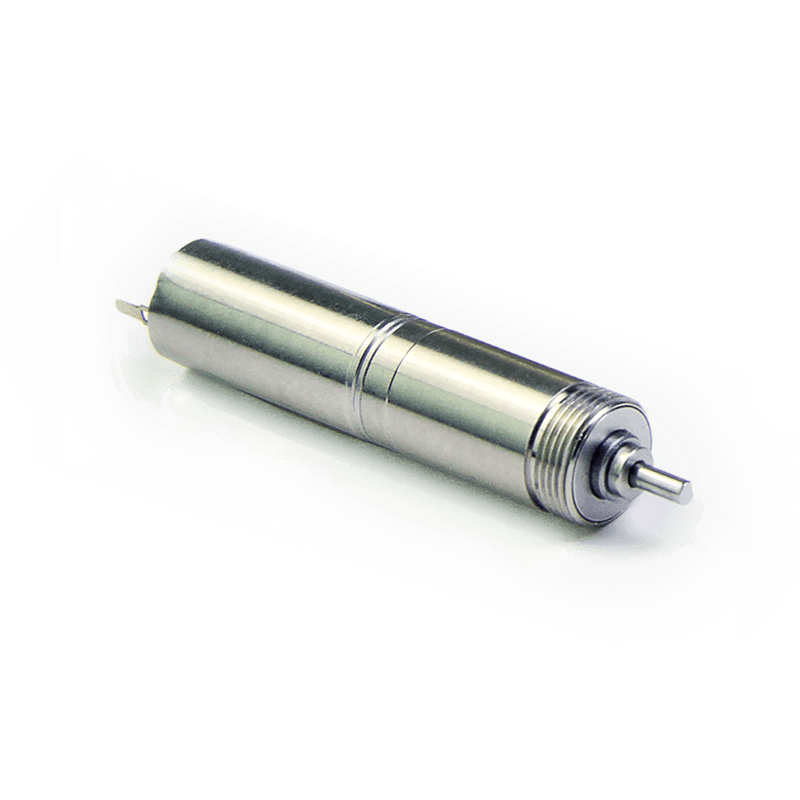

CL008CN017 SeriesCL008CN017-06-G64Coreless Brushed DC motor
Specifications:
- 0.310 in Frame Size
- 0.165 A Rated Current
- 2.988 oz-in Rated Torque
- 6 VDC Nominal Voltage
- 1.210 in Length
Unit Price:
$223.00
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
CL008CN017-06-G64
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.310 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.019 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 6 VDC |
| No Load Speed | 211 RPM |
| No Load Current | 39.2 mA |
| Nominal Speed | 52 RPM |
| Nominal Torque (Max Cont. Torque) | 2.988 oz-in |
| Nominal Current (Max Cont. Current) | 0.165 A |
| Rated Speed | 52 RPM |
| Rated Torque | 2.988 oz-in |
| Rated Current | 0.165 A |
| Stall Current | 0.21 A |
| Max. Efficiency | 66% |
Motor Characteristics
| Terminal Resistance | 28 ohm |
| Terminal Inductance | 0.206 mH |
| Speed/Torque Gradient | 2411.6512 RPM/oz-in |
| Speed Constant | 2410 RPM/V |
| Mechanical Time Constant | 6.6 ms |
| Rotor Inertia | 0 oz-in² |
Motor Mechanical Data
| Axial play | 0.006 in |
| Radial play | 0.003 |
| Max Speed (Mechanical) | 18000 RPM |
Motor Thermal Data
| Ambient Temperature | -4 °F to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 127.04 °F/W |
| Thermal resistance (Winding-Housing) | 79.52 °F/W |
| Thermal time constant motor | 21 s |
| Thermal time constant winding | 2.37 s |
Gearhead Specifications
| Number Of Stages | 3 |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL008CN017-06-G64 | 1.210 in |
Performance Curve
CL008CN017 Series
Downloads
CL008CN017-06-G64 Configured Datasheet (PDF)
