Frameless Torque Motors
Lin Engineering designs and manufactures frameless torque motors that integrate seamlessly into a wide range of applications, providing engineers with unmatched flexibility, precision, and reliability. The frameless design allows the rotor and stator to be incorporated directly into the system, reducing weight and optimizing space. With high power density and customizable specifications, Lin Engineering’s frameless torque motors ensure optimal performance and durability, empowering engineers to achieve greater efficiency and innovation in the most demanding applications.
In the world of motion, precision, and reliability, our motors form the Core—the backbone of movement across diverse applications. The name "Core" reflects our belief that, whether driving a gimbal, supporting cobots, or powering demanding, high-performance systems, each motor series is an essential element that enhances the function and reliability of any system it serves.
FlexCore, PowerCore, and XtremeCore are engineered to be integral to your application, providing the foundation upon which efficiency, high performance and innovation are built.
FlexCore - High Value designs meant for balanced performance.
PowerCore - High Performance designs delivering high power density and efficiency.
XtremeCore - Uncompromised power setting the industy standard for torque and power.

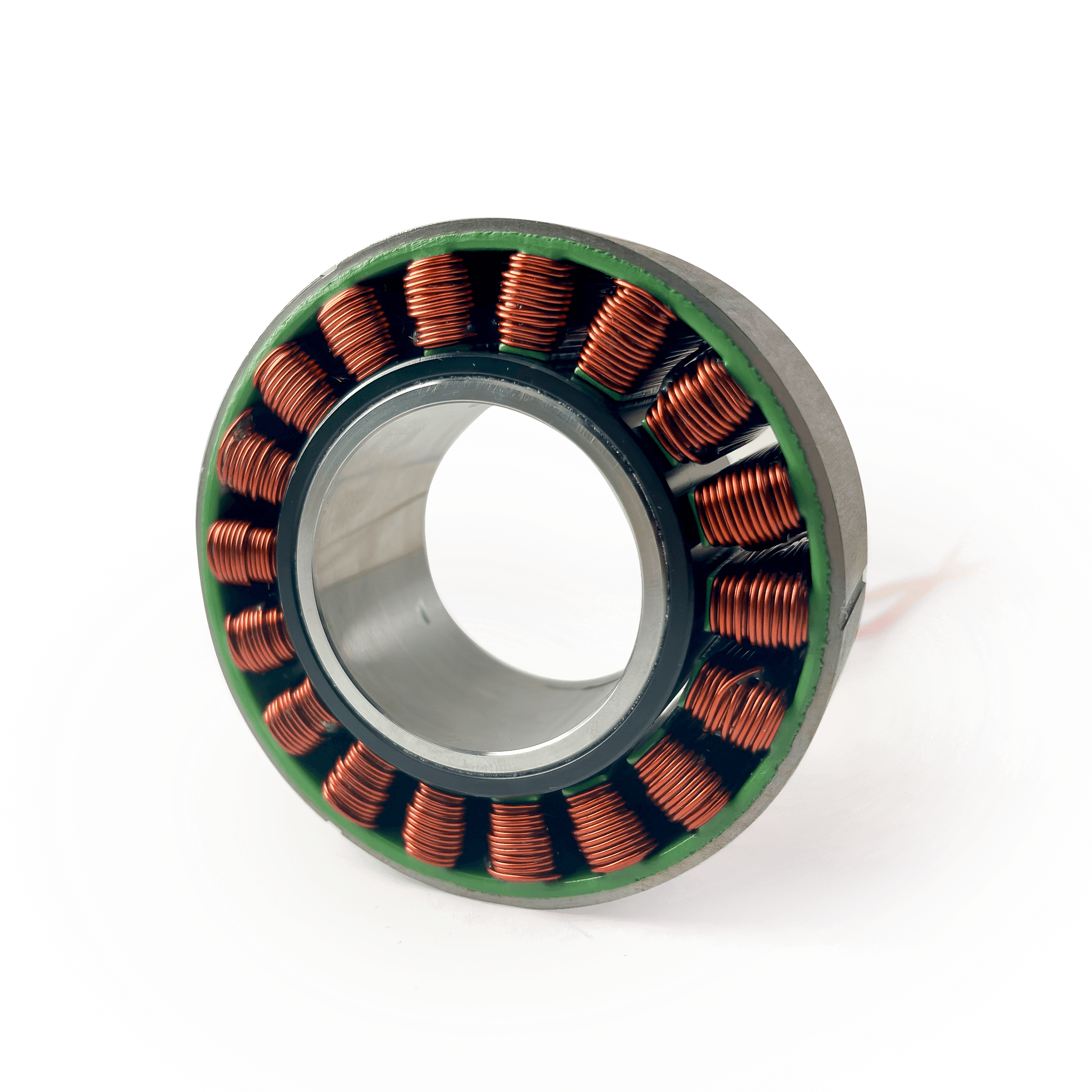

FlexCore motors offer high-value, balanced performance, ideal for applications needing reliable, efficient motion. Designed for stability and consistent output, these motors provide an unmatched cost-effective solution without sacrificing quality or durability.
- 40 to 137mm OD sizes
- Up to 10Nm of Peak Torque
- Speeds Up to 5k RPM
- High Value/Cost Effective
- Balanced performance

Frame Size | 40 mm | 60 mm | 70 mm | 77 mm | 100 mm | 127 mm | 137 mm |
---|---|---|---|---|---|---|---|
Stack Lengths | 25 mm | 25 mm | 7.1 mm | 28 mm | 7 mm | 7.1 mm | 17 mm |
Cont. Torque | 0.23 - 0.60 Nm | 0.6 Nm | 0.18 Nm | 2.12 Nm | 0.9 Nm | 1.00 Nm | 5.00 Nm |
Peak Torque | 0.43 - 1.06 Nm | 1.2 Nm | 0.41 Nm | 4.24 Nm | 2.7 Nm | 2.10 Nm | 10.00 Nm |
Rated Speed | 3820 - 4890 RPM | 3400 RPM | 520 - 5000 RPM | 3000 RPM | 570 RPM | 1280 - 2525 RPM | 425 RPM |
Rated Power | 30 - 122 W | 213 W | 35 W | 665 W | 53 W | 57 W | 86 W |
Rated Voltage | 18 - 96 VDC | 48 - 96 VDC | 24 - 96 VDC | 48 VDC | 72 VDC | 48 - 96 VDC | 120 VDC |
Rated Current | 5.2 A | 3.3 - 5.2 A | 1.62 A | 15.7 A | 1.25 A | 1.26 - 5.06 A | 1.78 A |
View 40 mm | View 60mm | View 70mm | View 77mm | View 100mm | View 127mm | View 137mm |

Coming Soon

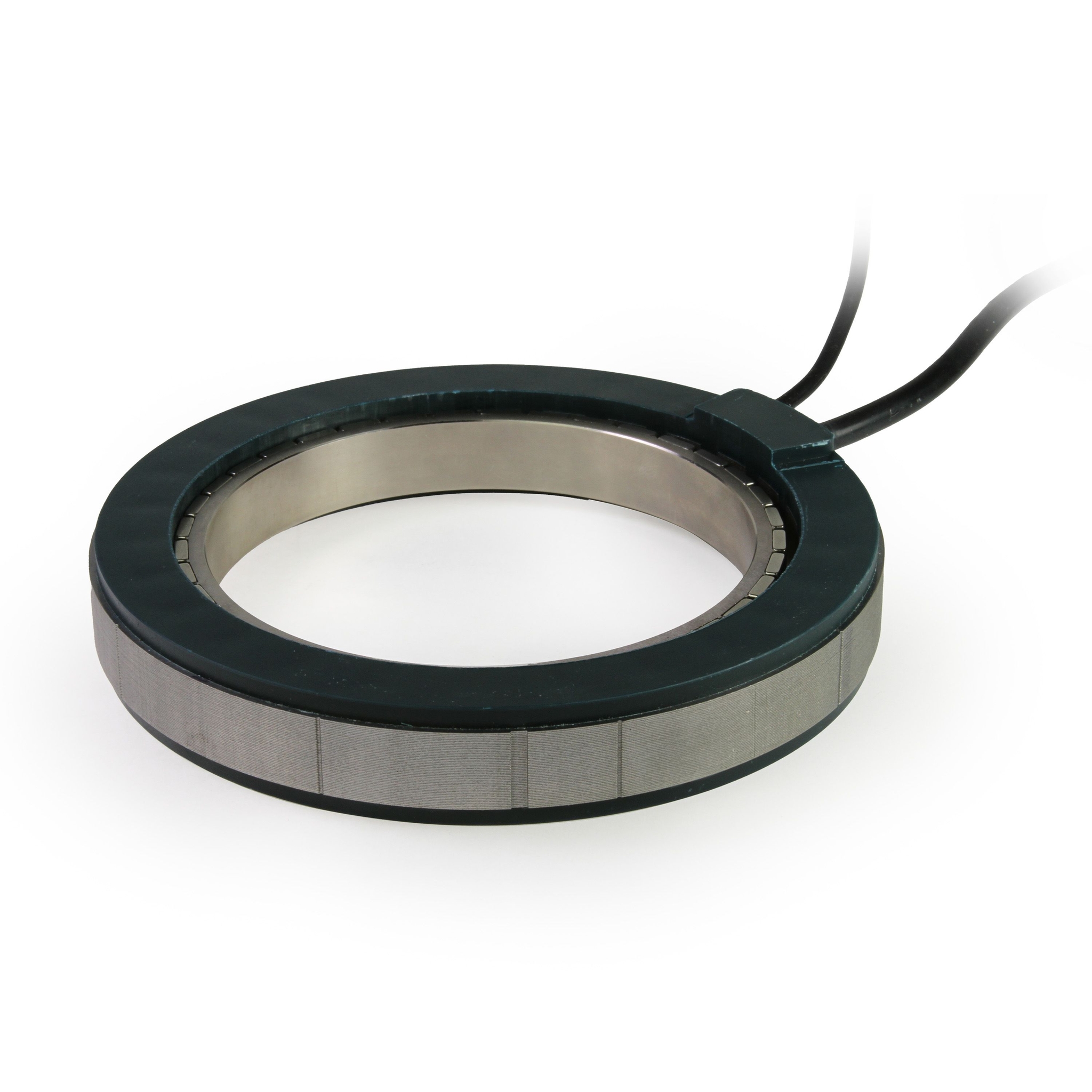

PowerCore motors are engineered for high-performance applications, delivering exceptional power density and efficiency. Designed to maximize output in compact spaces, these motors provide reliable, high-powered solutions for demanding systems.
- 50 to 115mm OD Sizes
- Up to 17.5Nm of Peak Torque
- Speeds up to 4.8k RPM
- High Power Density
- High Efficiency
- Low Temperature Rise

Frame Size | 50 mm | 60 mm | 68 mm | 76 mm | 85 mm | 94 mm | 115 mm |
---|---|---|---|---|---|---|---|
Stack Lengths | 8.2 - 26.3 mm | 8.2 - 26.3 mm | 8.2 - 26.3 mm | 8.2 - 26.3 mm | 8.2 - 26.3 mm | 8.2 - 26.3 mm | 8.2 - 26.3 mm |
Cont. Torque | 0.27 - 0.64 Nm | 0.45 - 0.96 Nm | 0.63 - 1.54 Nm | 0.89 - 2.06 Nm | 1.21 - 2.69 Nm | 1.58 - 3.67 Nm | 1.9 - 6.03 Nm |
Peak Torque | 0.59 - 1.73 Nm | 1.15 - 3.42 Nm | 1.69 - 4.78 Nm | 2.54 - 7.44 Nm | 3.32 - 8.37 Nm | 4.23 - 10.33 Nm | 5.93 - 17.46 Nm |
Rated Speed | 2150 - 4800 RPM | 1511 - 3566 RPM | 1204 - 3441 RPM | 1050 - 3073 RPM | 893 - 2668 RPM | 1019 - 2992 RPM | 2024 - 3387 RPM |
Rated Power | 23 - 45 W | 30 - 51 W | 40 - 71 W | 44 - 79 W | 49 - 82 W | 57 - 103 W | 74 - 125 W |
Rated Voltage | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
Rated Current | 2.11 - 2.8 A | 2.99 - 3.77 A | 4.27 - 4.59 A | 4.96 - 5.26 A | 5.48 - 5.88 A | 8.53 - 8.53 A | 15.04 - 26.72 A |
Motor Constant | 0.06 - 0.13 Nm/√W | 0.11 - 0.22 Nm/√W | 0.14 - 0.29 Nm/√W | 0.18 - 0.37 Nm/√W | 0.22 - 0.47 Nm/√W | 0.26 - 0.57 Nm/√W | 0.36 - 0.82 Nm/√W |
Quote | Quote | Quote | Quote | Quote | Quote | Quote |

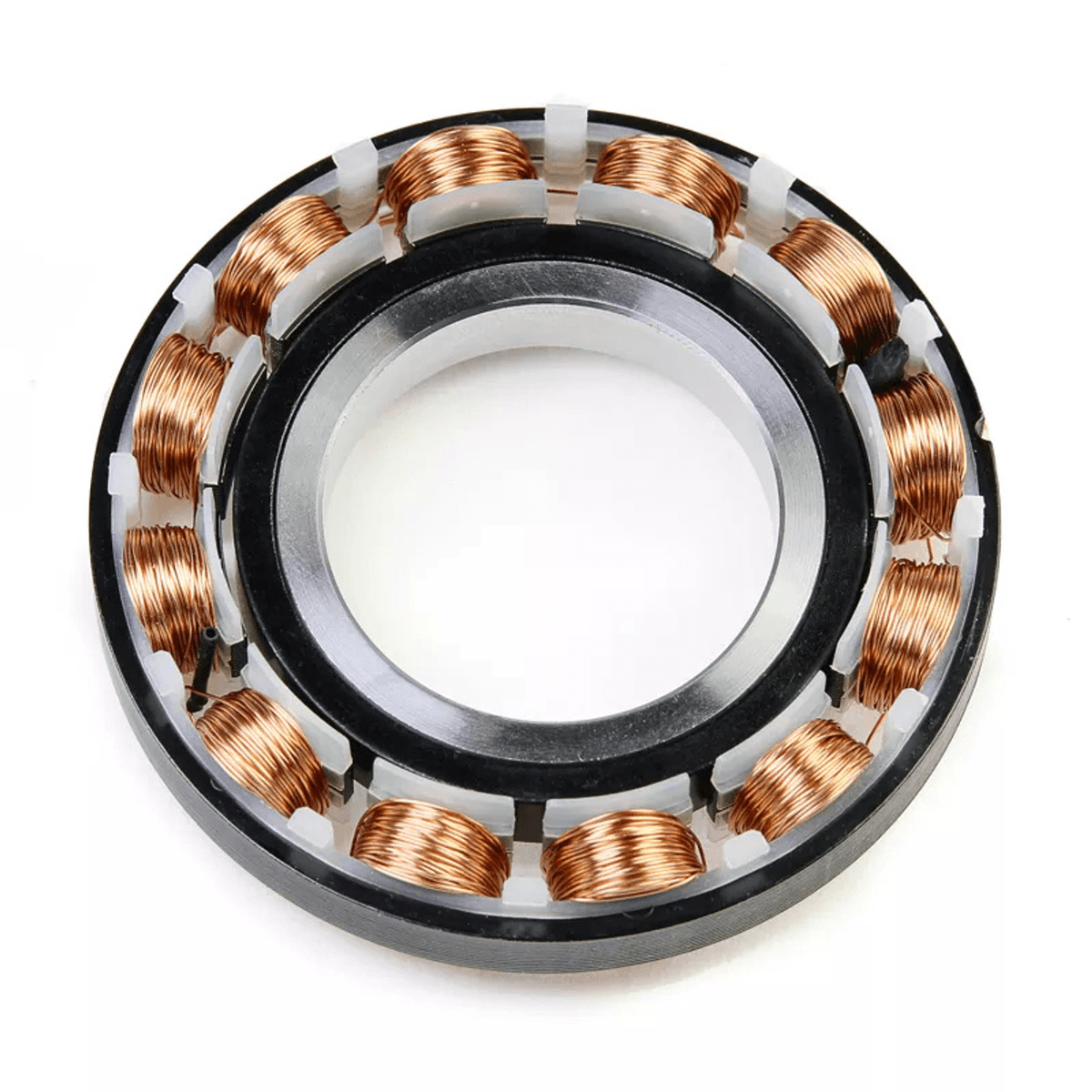

XtremeCore motors deliver uncompromised power, setting the industry benchmark for torque and performance. Built for the most demanding applications, these motors provide robust, reliable solutions where maximum power is essential.
- 60 to 160mm OD sizes
- Up to 30Nm of Torque
- Speeds Up to 2.7k RPM
- Maximum Power Density

Frame Size | 60 mm | 85 mm | 160 mm |
---|---|---|---|
Stack Lengths | 8 - 26 mm | 8 - 26 mm | 8 - 30 mm |
Cont. Torque | 0.51 - 1.13 Nm | 1.40 - 3.15 Nm | 4.10 - 16.20 Nm |
Peak Torque | 1.00 - 2.30 Nm | 3.38 - 30.57 Nm | 7.00 - 29.00 Nm |
Max Speed | 1700 - 2700 RPM | 1900 - 2700 RPM | 150 - 2145 RPM |
Rated Power | 64 - 142 W | 234 - 409 W | 255 - 1124 W |
Rated Voltage | 24 VDC | 24 VDC | 24 VDC |
Rated Current | 8.8 - 11.49 A | 10.96 - 14.5 A | 4.3 - 10.0 A |
Motor Constant | 0.10 - 0.22 Nm/√W | 0.24 - 0.53 Nm/√W | 0.45 - 1.25 Nm/√W |
View XCT-060 Motors | View XCT-085 Motors | View XCT-160 Motors |

What is a Frameless Torque Motor?

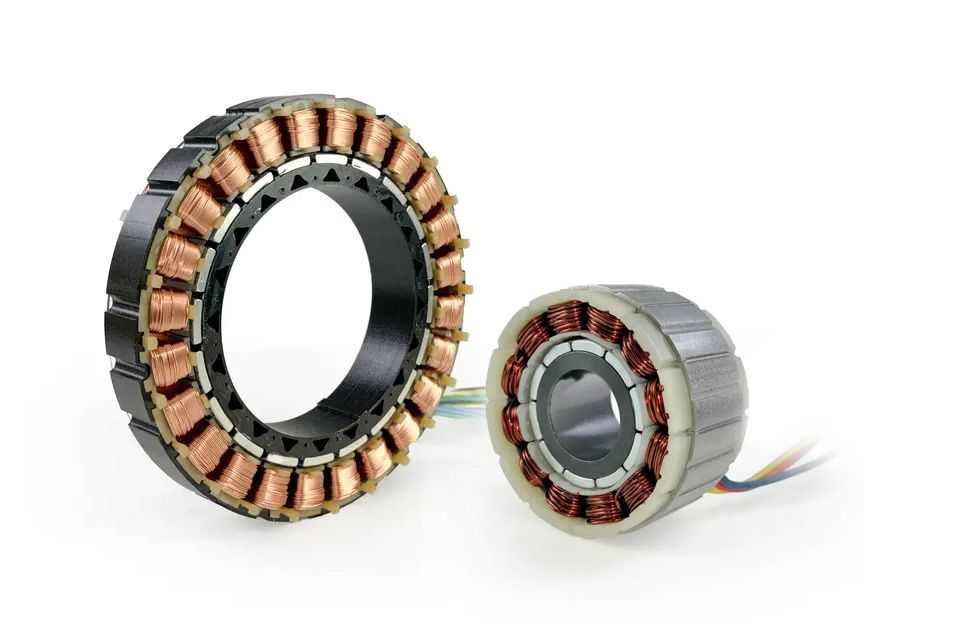

Frameless torque motors are high-torque, direct-drive motors designed without a housing or shaft, providing exceptional flexibility for custom applications. These motors offer a unique approach to motion control, allowing for integration directly into a system’s mechanical structure. Their frameless design makes them ideal for applications demanding compact, lightweight, and powerful motion solutions, such as in robotics, aerospace, medical devices, and industrial automation.
