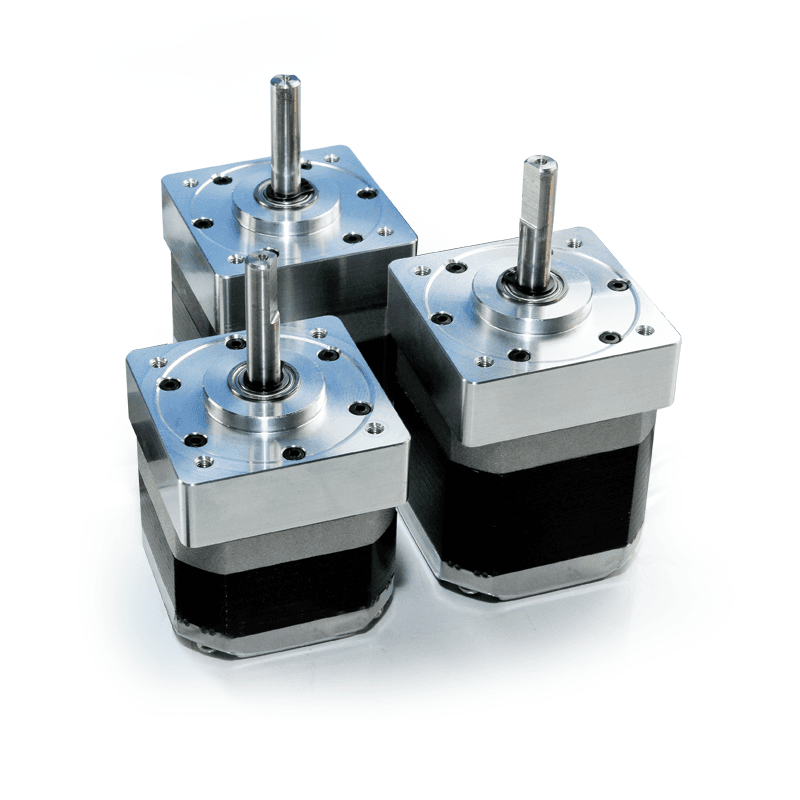

Slim Planetary SERIESSlim PlanetaryGearboxes
Features and Benefits:
- High efficiency
- Shortest Planetary Gearbox
- 5:1 gear ratio
- Cost effective
- Standard NEMA 17 Mount
Specifications
GEARBOX SPECIFICATIONS
DESCRIPTION | SPECIFICATION |
---|---|
MAX EFFICIENCY (%) | 90% |
OPERATIONAL TEMPERATURE | -20 TO 50 deg C |
TORQUE RATING (CONTINUOUS) Tc | 141 oz-in (1N-m) |
GEARHEAD INERTIA (oz-in^2) | 4.542 oz-in^2 |
MAX BACKLASH (arcmin) | +/- 25 arcminutes |
GEARHEAD WEIGHT (LBS) | 0.22 lbs |
MAX RADIAL LOAD RATING AT K DISTANCE | 20 lbs |
K DISTANCE AWAY FROM MOUNTING FACE | 0.2 inches |
MAX AXIAL LOAD | 50 lbs |
4418XT MOTOR + GEAR SPECIFICATIONS
Dimension "A" | Model Number | Amp/ Phase | Holding Torque oz-in | Holding Torque N-m | Resistance Ohm/Phase | Inductance mH/Phase | Inertia oz-in^2 | Weight Lbs. | Number of Leads |
---|---|---|---|---|---|---|---|---|---|
1.57" MAX | 4418F-01-04RO | 0.67 | 141 | 1 | 7.55 | 6.8 | 4.682 | 0.57 | 4 |
1.71" MAX | 4418X-01-04RO | 1.5 | 141 | 1 | 1.54 | 1.53 | 4.752 | 0.67 | 4 |
1.89" MAX | 4418S-01-02RO | 1.7 | 141 | 1 | 1.59 | 2.34 | 4.832 | 0.77 | 4 |
Dimension
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/f9a12f0200c248d78a15e51a067997d6.jpg&w=2048&q=100)
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/56af906bc87d4d0bb64d086bd29a4392.jpg&w=2048&q=100)
Torque Curves
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/3d8c02bf5e2540429acc9ce86ab54cc3.png&w=2048&q=100)
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/d1e15d95be054396bb06d3b8e49e9f37.jpg&w=2048&q=100)
![Content image](/_next/image?url=https://lin-cms-images.s3.us-west-2.amazonaws.com/4118_X_01_04_RO_Torque_Curve_6c5adbd8f4.jpg&w=2048&q=100)
Video
Downloads
Slim Planetary Configured Datasheet (PDF)
DownloadGet the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
