AMT20 SERIES

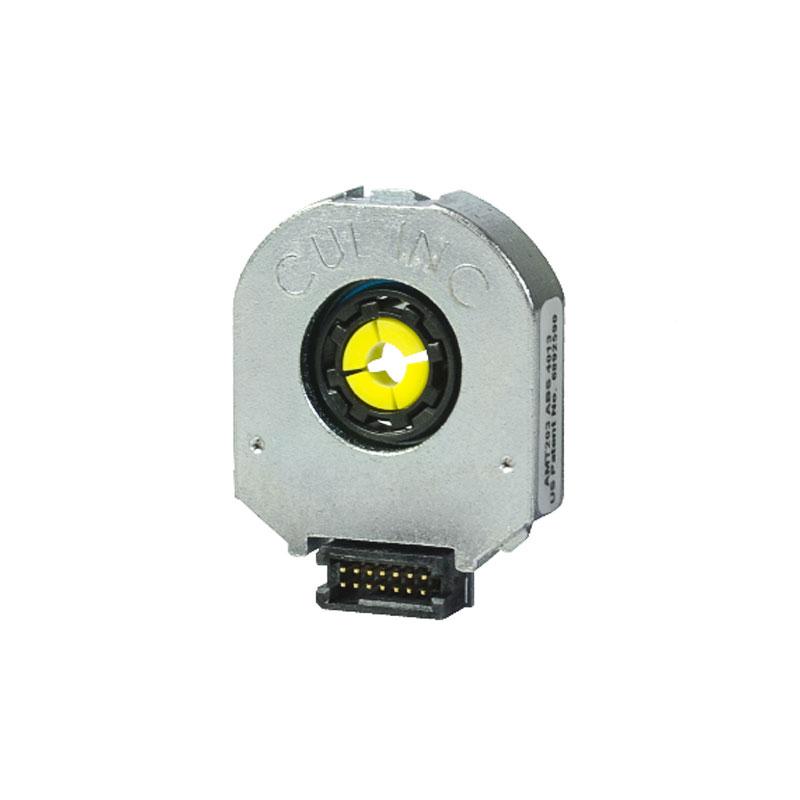

AMT20
Capacitive Encoder

Name: AMT20
Brand: Lin Engineering
Price: 50 USD
Availability: PreOrder

Quick Facts

AMT20 Encoders

Features and Benefits:

Patented capacitive ASIC technology
Low power consumption
12-bit absolute position via SPI (4096 positions)
Digitally set zero position alignment
SPI configurable settings
Incremental resolutions up to 1024 PPR
Index pulse
Compact modular package with locking hub for ease of installation
Different mounting hole options

Pin Outs

Note: Due to a global shortage, CUI encoders are experiencing a longer than usual lead time. If you choose this CUI product, the lead time for your order may up to 16 weeks.

PINOUT CONNECTOR FUNCTION

NUMBER	AMT203
1	N/A
2	CBS
3	MISO
4	GND
5	SKC
6	+5 V
7	MOSI
8	B
9	N/A
10	A
11	N/A
12	Z
13	N/A
14	N/A
