AMT11AMT11Capacitive Encoder
Features and Benefits:
- Patented capacitive ASIC technology
- Incremental resolutions up to 4096 PPR
- Differential line driver versions
- Resolutions programmable with AMT Viewpoint™ PC software
- Low power consumption
- Digitally set zero position
- Compact modular package with locking hub for ease of installation
- Radial and axial cable connections

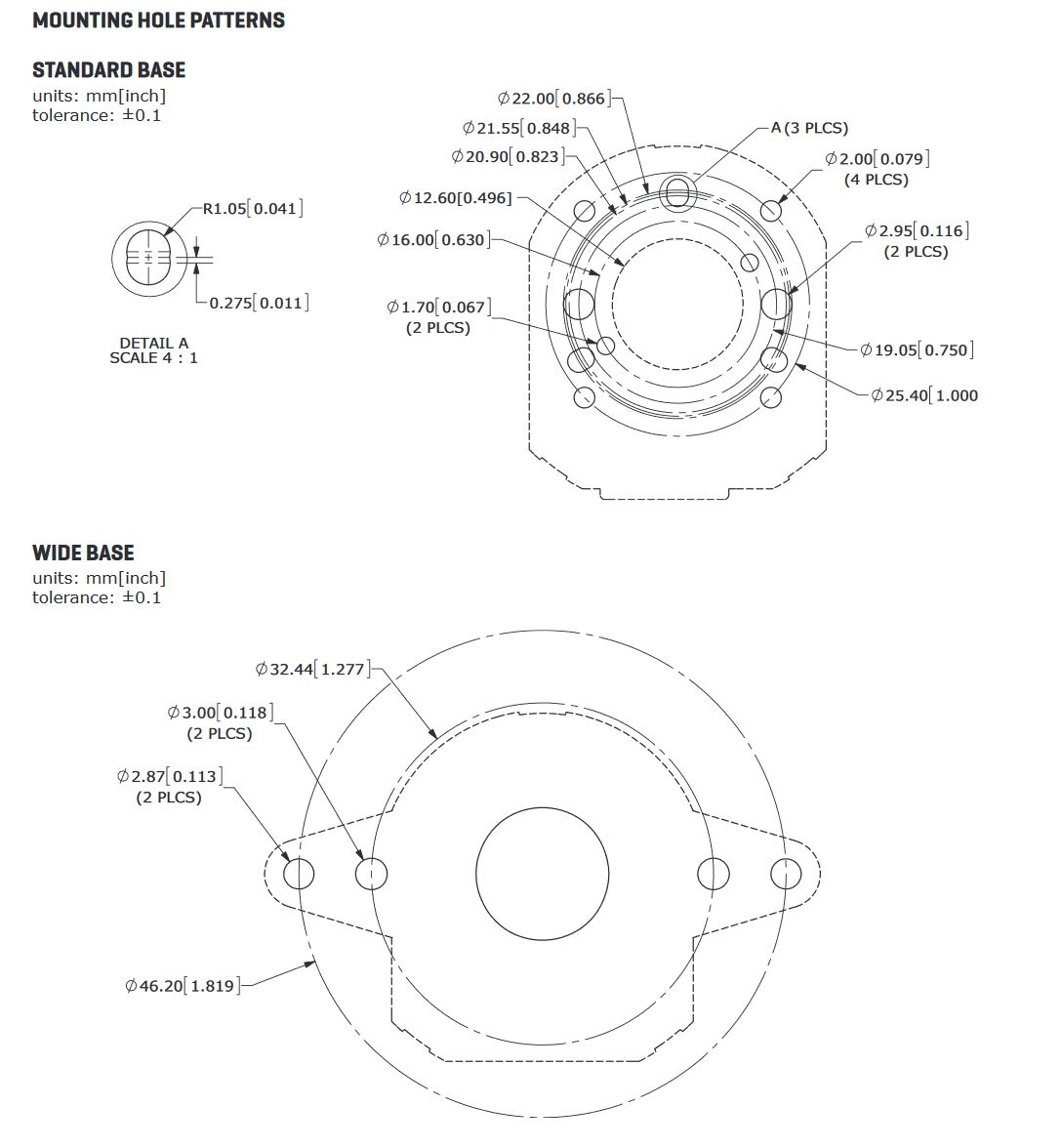

- 7 different mounting hole options
Current product is temporary unavailable.
If you have any questions , please contact us by link below.

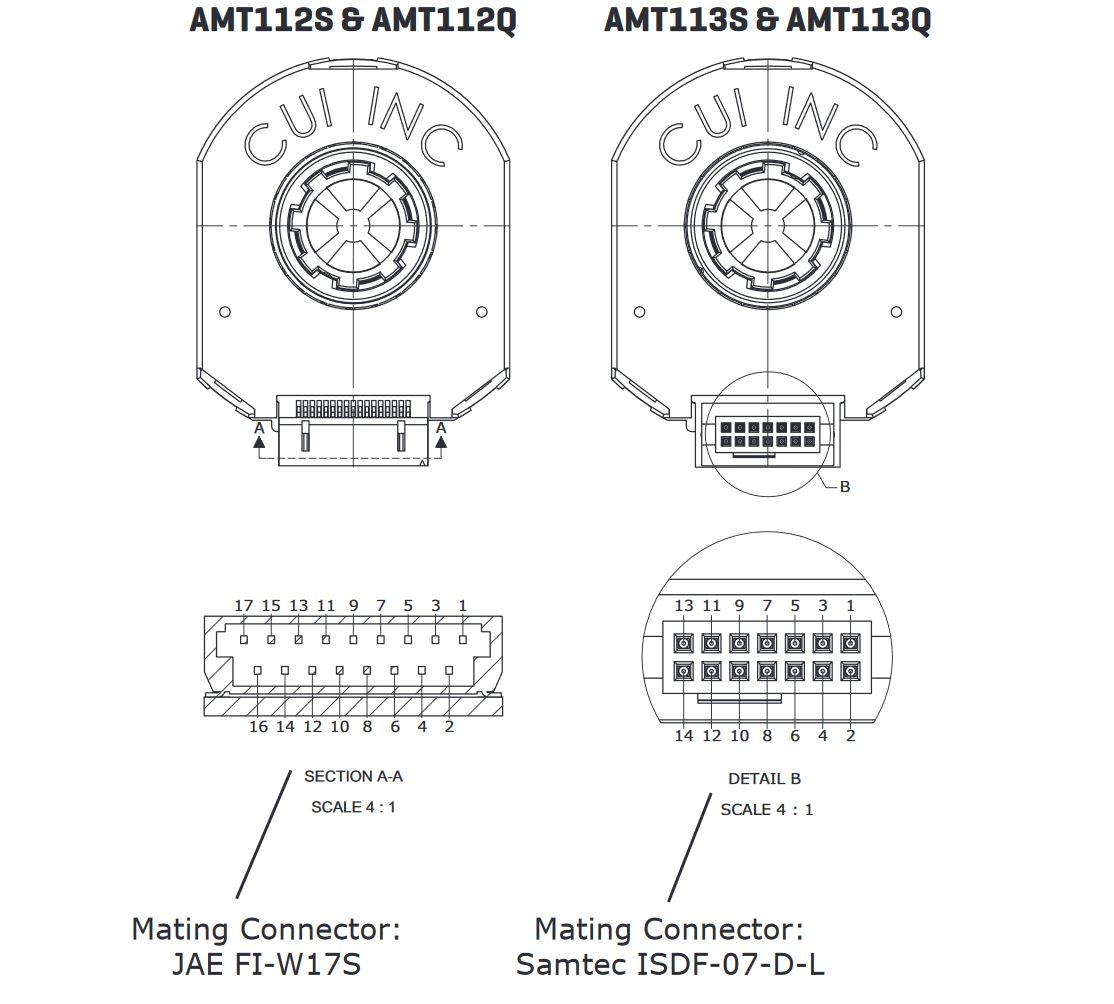

Pin Outs
Note: Due to a global shortage, CUI encoders are experiencing a longer than usual lead time. If you choose this CUI product, the lead time for your order may up to 16 weeks.
PINOUT CONNECTOR FUNCTION
| NUMBER | AMT112S | AMT112Q | AMT113S | AMT113Q |
|---|---|---|---|---|
| 1 | TX-ENC+ | TX-ENC+ | RX-ENC+ | RX-ENC+ |
| 2 | RX-ENC+ | RX-ENC+ | TX-ENC+ | TX-ENC+ |
| 3 | N/A | N/A | N/A | N/A |
| 4 | GND* | GND* | GND* | GND* |
| 5 | N/A | N/A | N/A | N/A |
| 6 | +5 | +5 | +5 | +5 |
| 7 | N/A | N/A | N/A | N/A |
| 8 | B+ | B+ | B+ | B+ |
| 9 | N/A | B- | N/A | B- |
| 10 | A+ | A+ | A+ | A+ |
| 11 | N/A | A- | N/A | A- |
| 12 | Z+ | Z+ | Z+ | Z+ |
| 13 | N/A | Z- | N/A | Z- |
| 14 | MCLRB | MCLRB | MCLRB | MCLRB |
| 15 | N/A | N/A | N/A | N/A |
| 16 | N/A | N/A | N/A | N/A |
| 17 | N/A | N/A | N/A | N/A |
Note: * Connect encoder GND to motor chassis as closely as possible. For additional grounding
techniques contact CUI Application Support.

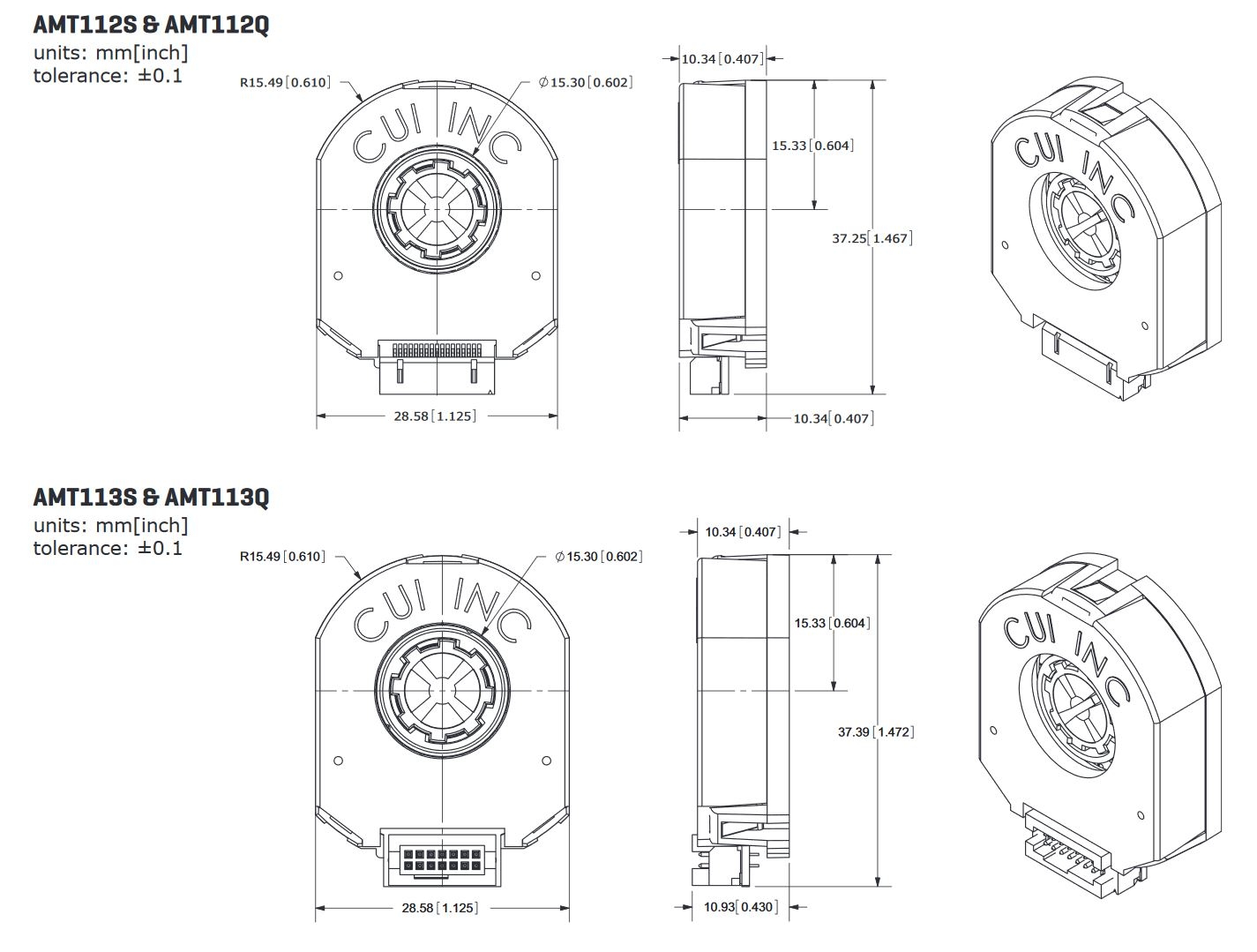

Dimension
