STEPPER DRIVER

Features and Benefits:
  • Built-in step pulse multiplier 1, 2, 5, and 10
  • Common Ground or Common +5 Volts Input Option Available
  • Input Voltage of +12 to 40 VDC
  • Phase Current Ranges from 0.3 to 7.0 Amps Peak
  • Full step, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
  • RS485 Communication with Optional Converter Cards Available
  • 2 User Configurable Digital I/O
  • 2 Dedicated Inputs: 1 Optical Sensor for Homing, 1 Switch Closure to Ground
  • Fully Programmable Ramps and Speeds
  • Software Selectable Hold and Move Currents
  • Stand Alone Operation with No Connection to PC
  • Stores up to 16 Different Programs at Once with 4 kBytes of Mem

Unit Price:

$198.00

Inventory:

8 Available in 2 Business Days

Ships:

2 Business Days

Part Number:

R710

Looking For Higher Volume?

Options

ADJUSTABLE TRIMPOT

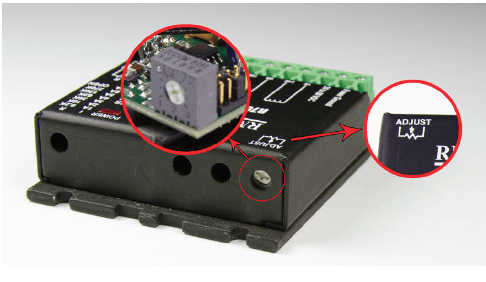

The potentiometer shown on the board can be rotated using a screwdriver. It’s recommended to rotate the motor at 0.25 RPS. Then to adjust the potentiometer until there is the least amount of vibration and noise coming out of the motor. This will be the position that the driver will perform smoothly with a given motor and power supply voltage.

The adjustment will alter the current waveform coming out of the driver and into the motor coils.

Content image

R710 INCLUDES A BUILT-IN STEP PULSE MULTIPLIER BOARD

The R710 has the same features as the R701 plus two additional features:

Content image

Input Option Header – allows the use of a Common Ground or a Common +5VDC for optically isolated inputs

Step Pulse Multiplier – will always output 10 microstepping, even with a step input of Full Step, Half Step, 5 Microstep, or 10 Microstep. The user no longer needs to change their original setup to get microstepping. Simply select the desired step multiplier of 1, 2, 5 or 10; to achieve the 10 microstepping output from the driver, while maintaining the rotational speed that you had in your original setup.

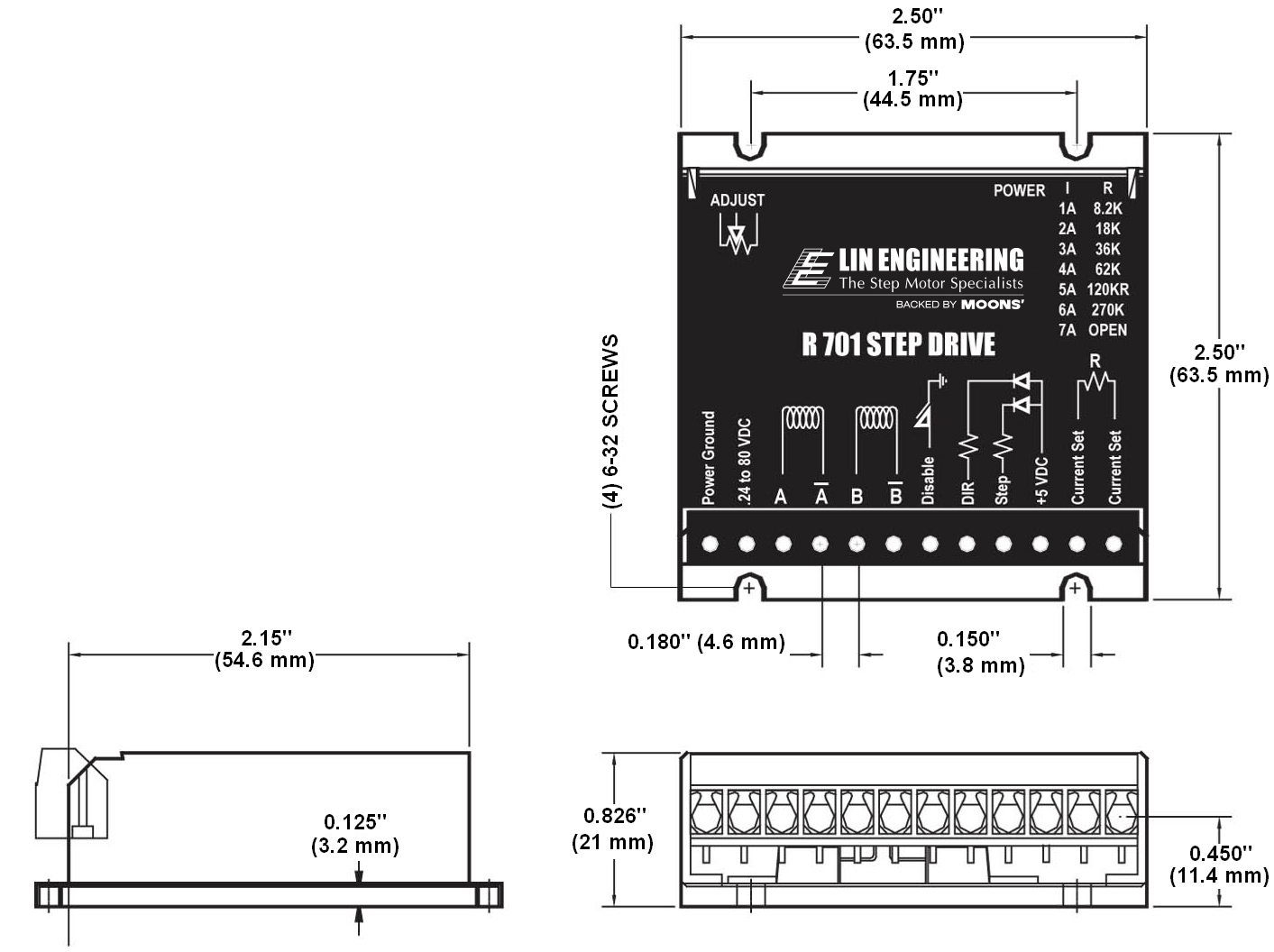

Dimension

Content image

Pin Outs

PIN NUMBERFUNCTION
1Power Ground
2+24 to 80 VDC
3A Phase
4A Bar Phase
5B Phase
6B Bar Phase
7Disable
8Direction
9Step
10+5 VDC
11Current Set
12Current Set



To set the Current with the Correct Resistor, use the following Table:

CURRENT (Amps)RESISTANCE (Ohms)
18.2K
218K
336K
462K
5120K
6270K
7OPEN

Electrical Specifications

  • INPUT VOLTAGE: +24 to 80
  • DRIVE CURRENT(PER PHASE): 0.3 to 2 Amps or 1 to 7 Amps
  • ISOLATED INPUTS: Step Clock, Direction, Enable & Disable
  • STEP FREQUENCY (MAX): 200kHz
  • STEPS PER REVOLUTION (1.8º MOTOR): 2000
