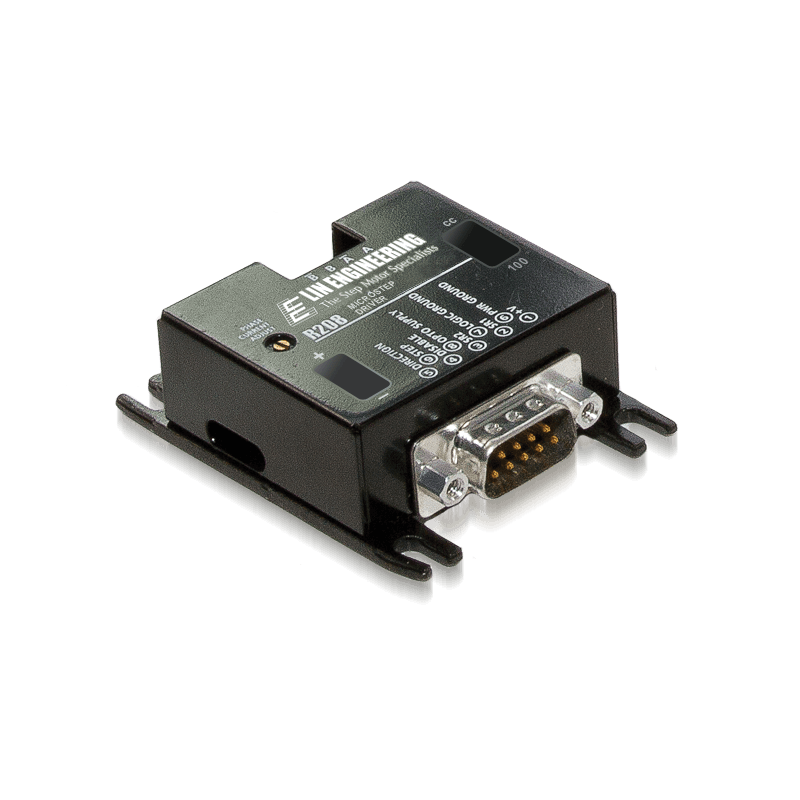

R208 SERIESR208STEPPER DRIVER
- Bipolar Step Motor Driver
- Operates from +12 to 24 VDC
- Phase current ranges from 0.35 to 2.0 Amps Peak
- Selectable Step Resolution from Full, Half, 1/4, and 1/8 microsteps
- Optically isolated
- Step, Direction, and Disable/Enable Inputs
- Selectable Current Reduction of 33%
- Low Power Dissipation
- Efficient Current Control
- Thermal Shutdown, Under-voltage Protection
- Power-on Indicator
- Power Disable/Enable Control
- Sinusoidal current waveform Low Cost Driver
Unit Price:
$159.00
Inventory:
10 Available in 2 Business Days
Ships:
2 Business Days
Part Number:
R208
Performance Comparison
Torque Comparison

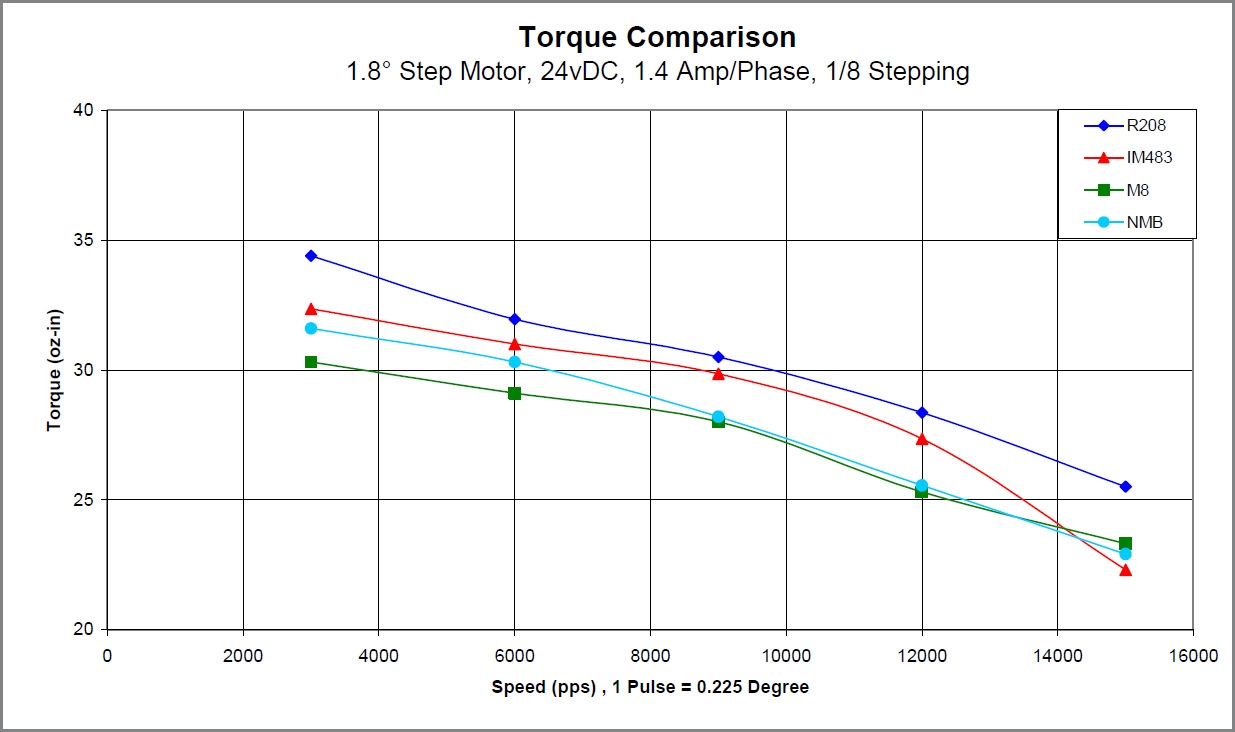

As a simple 2 Amp driver, the R208 outperforms all of its competitors in its class in maximizing the torque output of a step motor. In the test below you can see that it even outperforms the IMS IM483, a driver that costs over twice as much. Using a standard 1.8° step motor at 8x microstepping, you can see how the R208 outperforms the competition on the torque/speed curve below. The R208 gets over 10% more torque out of the motor at the various speeds compared to the lowest performer.
![Content image](/_next/image?url=https://lin-cms-images.s3.us-west-2.amazonaws.com/cea622a91a754f618e9320b89887d326.jpg&w=2048&q=100)
Temperature Comparison

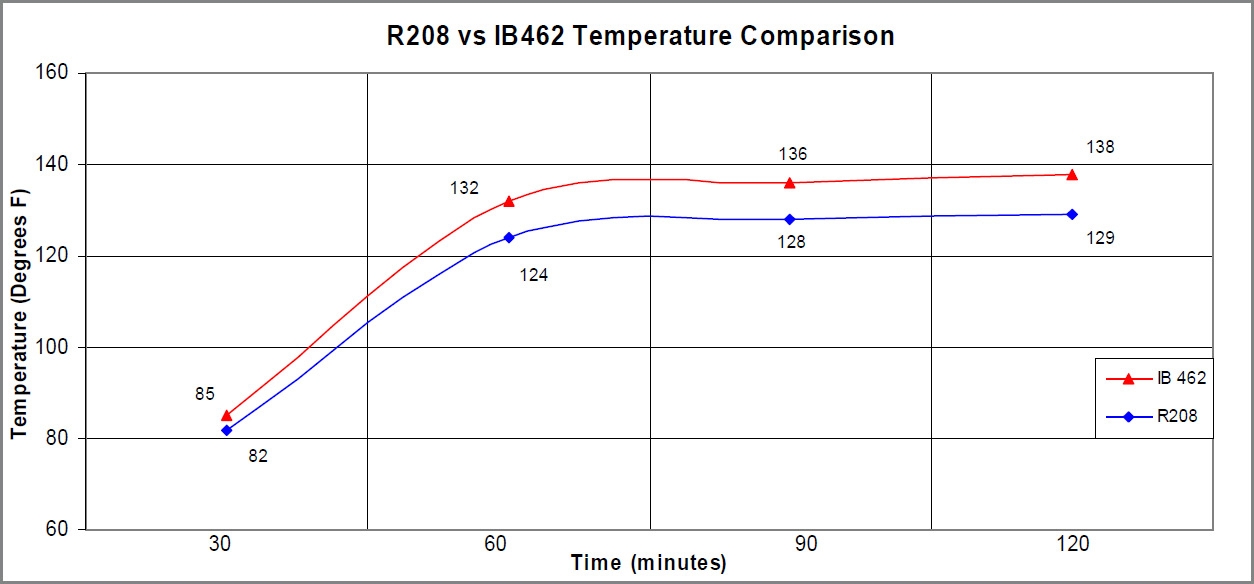

The R208 directly competes with the IMS IB462. They are both 2 Amp peak drivers. Both feature full and half step, while the R208 is also capable of 4x and 8x microstepping. Using a standard 1.8° Step motor, 24 VDC, 2 Amps/phase, half-stepping, and 20 revolutions per second, you can see that the R208 runs much cooler than the IB462. After running both for 120 minutes the R208 is at 129° F (53.8° C), while the IB462 is at 138° F (58.8° C). If overall system temperature is important in your application, the R208 has a clear advantage running 9° F (5° C) cooler.
![Content image](/_next/image?url=https://lin-cms-images.s3.us-west-2.amazonaws.com/6e9af51f152e46d18820a95c7bad9a8b.jpg&w=2048&q=100)

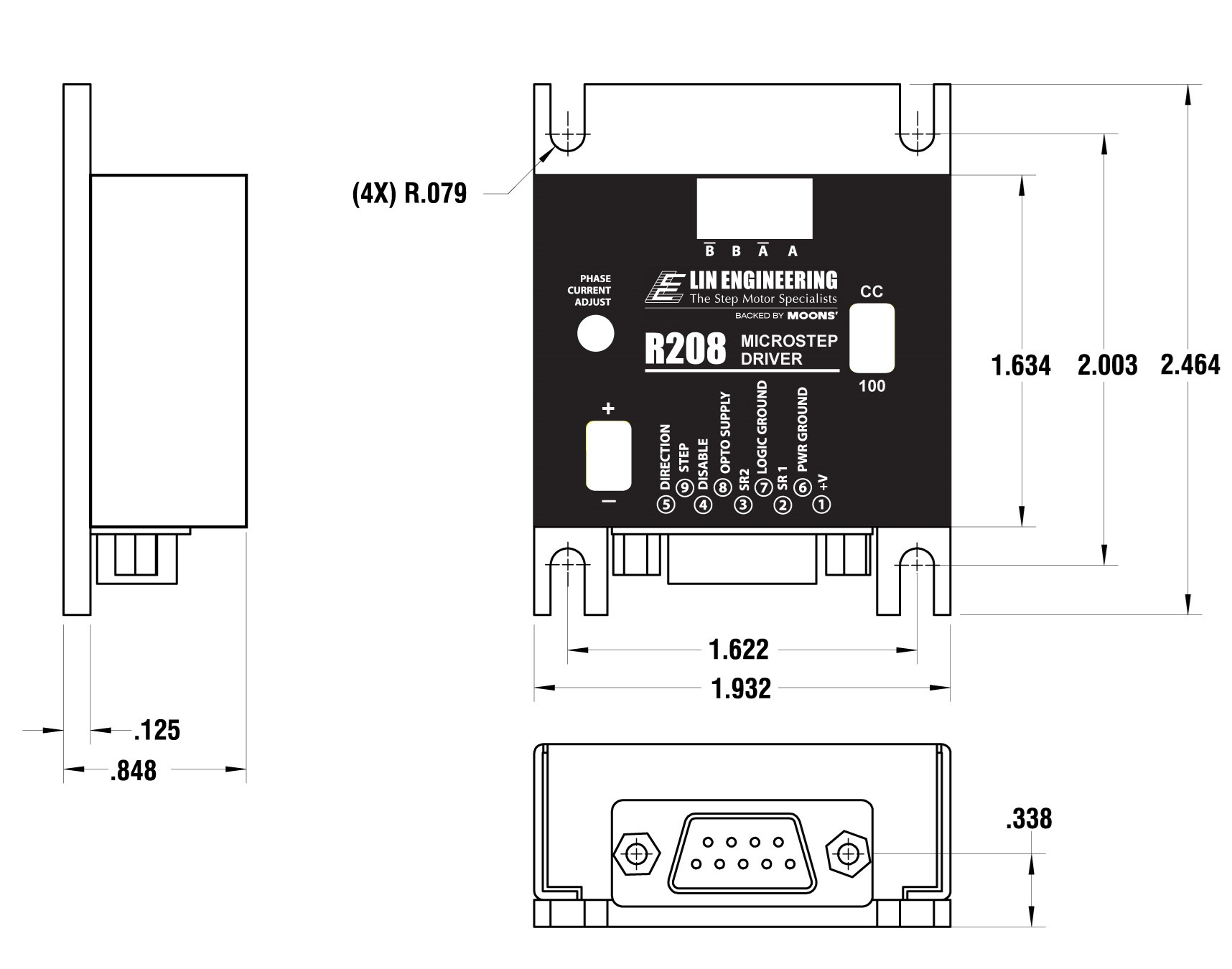

Dimension
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/aa2dc56e604b40a3a9e4c200cc97db46.jpg&w=2048&q=100)
Pin Out
PIN OUTS
PIN NUMBER | COLOR (#26 AWG Lead) | FUNCTION |
---|---|---|
1 | Red | +12 to 24 VDC |
2 | Black | Step Resolution |
3 | Brown | Step Resolution |
4 | Black/White | Disable |
5 | Orange | Direction |
6 | Green | Power Ground |
7 | White | Logic Ground |
8 | Blue | Opto Supply |
9 | Yellow | Step |
Connectors
A DB-9 male connector provides power and control connections. Mating connector provided.
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/d2f5eb1069714aa499cee94f51cf5466.jpg&w=2048&q=100)
Electrical Specifications
- INPUT VOLTAGE:+12 to 24 VDC (Including Unregulated Power Supplies)
- DRIVE CURRENT(PER PHASE): 0.25 to 1.4 Amps RMS, 2 Amps Peak
- ISOLATED INPUTS: Step Clock, Direction, Enable & Disable
- STEP FREQUENCY (MAX): 500 kHz
- STEPS PER REVOLUTION (1.8º MOTOR): 200, 400, 8000, 16000
