Part Number
4696327000046
Unit Price:
$106.99
Inventory:
4 Available in 2 Business Days
Ships:
2 Business Days
QTY
Looking For Higher Volume?

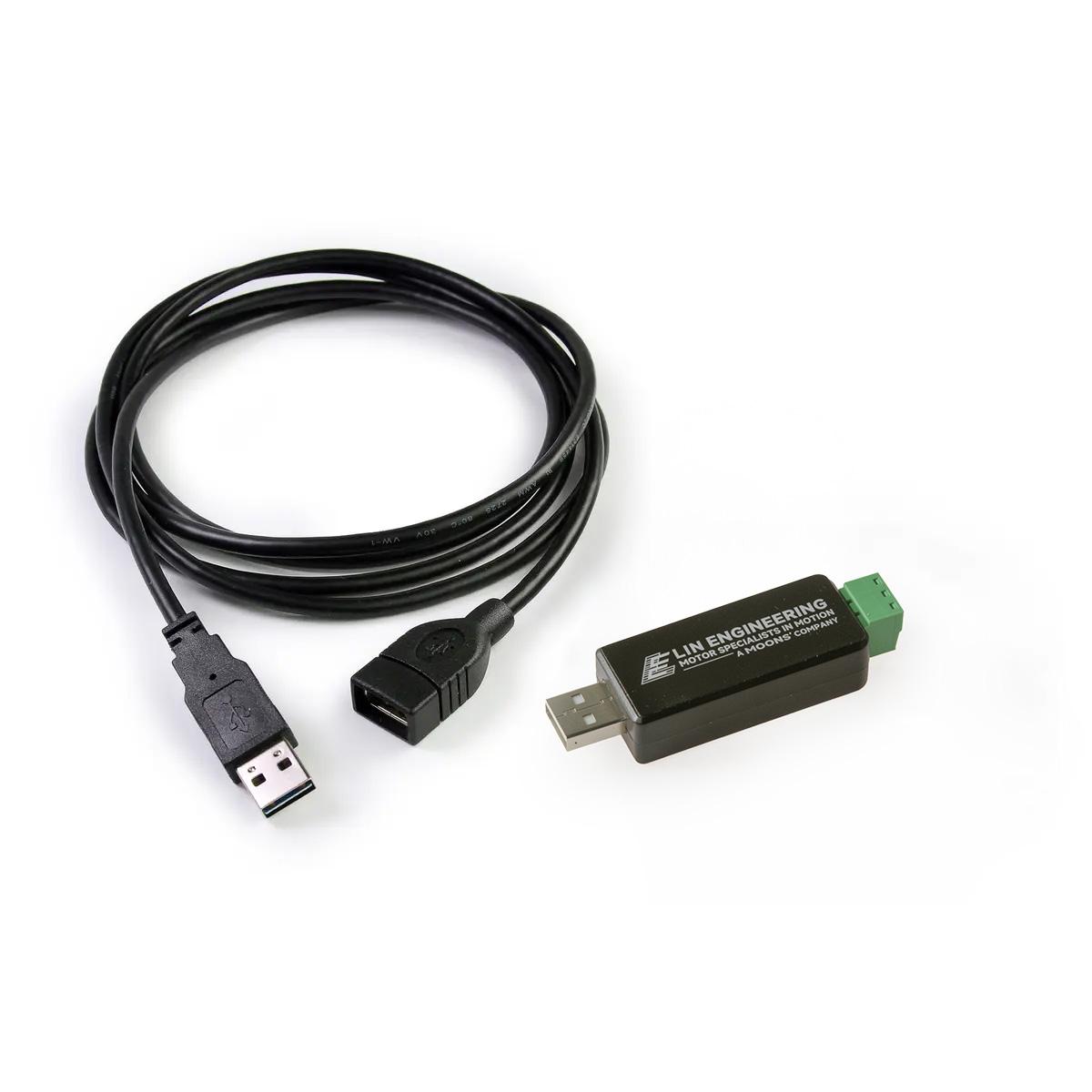

USB485 W/6’ CABLE SERIES4696327000046Converter Card
Quick Facts
4696327000046 AccessoriesUSB485 W/6’ CABLE
4696327000046 Accessories
Features and Benefits
- USB to RS485 communication.
- Adopt original FT232RL and SP485EEN chip, fast communicating, stable and reliable, better compatibility.
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
- Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provides over-current/over-voltage proof, and improve shock resistance.
- 3x LEDs for indicating the power and transceiver status.
Connection Diagram
Supporting Linux, Windows, Android, and Mac OS.
Specifications
- Electrical Standard: USB2.0, RS485 interface standard compliant
- Transmission Rate: 300bps ~ 921.6 kbps
- Load Capacity: drive 32 RS485 devices (recommended to use repeaters for 16 nodes or more)
- Transmission Distance: About 1.2km (Low rate)
- Dimension: About 63*23.5*14.6mm/2.48*0.93*0.57”
Additional Downloads and Chipset Datasheets
For additional chipset datasheets and driver downloads, please visit chip manufacturer's website:
Downloads
4696327000046 Configured Datasheet (PDF)
USB to RS485 Driver (ZIP)
