Configured Part Number

USB485 W/6’ CABLE

Configure This Motor

Unit Price:

$106.99

Inventory:

0 Available

Looking For Higher Volume?

USB485 W/6’ CABLE SERIES

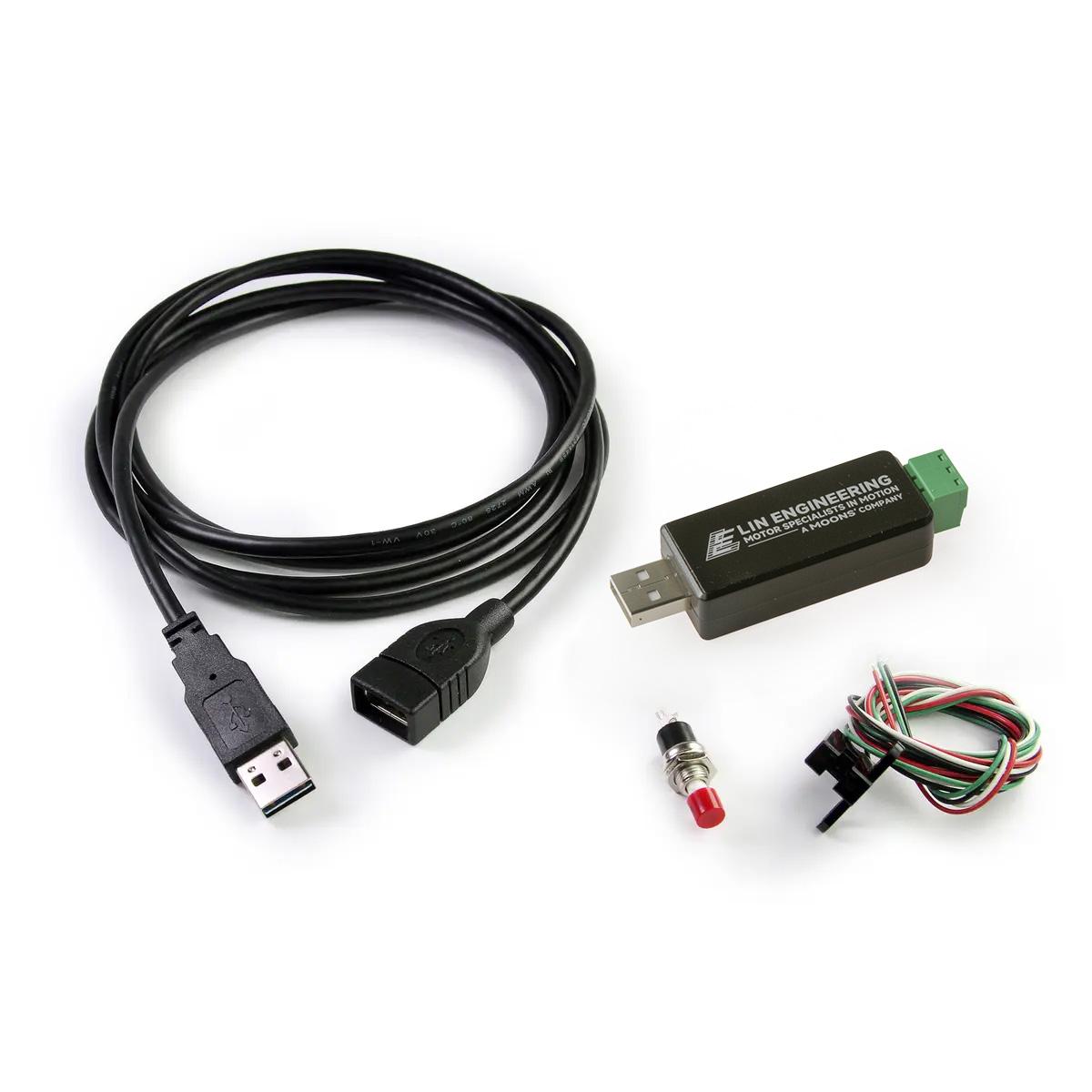

USB485 W/6’ CABLE
Converter Card

Featured product media

Quick Facts

USB485 W/6’ CABLE Series Accessories

Features and Benefits:
  • Includes a 6’ extension cable for ease of use
  • USB to RS485 communication
  • Transmission Rate: 300bps ~ 921.6 kbps
  • Drive up to 32 RS485 devices
  • 1.2Km (low rate) Transmission Distance
  • Adopt original FT232RL and SP485EEN chip
  • Fast communicating, stable and reliable, better compatibility
  • Onboard TVS (Transient Voltage Suppressor
  • Onboard self-recovery fuse and protection diodes

Features and Benefits

Content image
  • USB to RS485 communication.
  • Adopt original FT232RL and SP485EEN chip, fast communicating, stable and reliable, better compatibility.
  • Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
  • Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provides over-current/over-voltage proof, and improve shock resistance.
  • 3x LEDs for indicating the power and transceiver status.

Connection Diagram

Supporting Linux, Windows, Android, and Mac OS.

Content image

Specifications

  • Electrical Standard: USB2.0, RS485 interface standard compliant
  • Transmission Rate: 300bps ~ 921.6 kbps
  • Load Capacity: drive 32 RS485 devices (recommended to use repeaters for 16 nodes or more)
  • Transmission Distance: About 1.2km (Low rate)
  • Dimension: About 63*23.5*14.6mm/2.48*0.93*0.57”

Additional Downloads and Chipset Datasheets

For additional chipset datasheets and driver downloads, please visit chip manufacturer's website:

https://ftdichip.com/drivers/vcp-drivers/

Downloads

USB485 W/6’ CABLE Configured Datasheet (PDF)
USB to RS485 Driver (ZIP)
