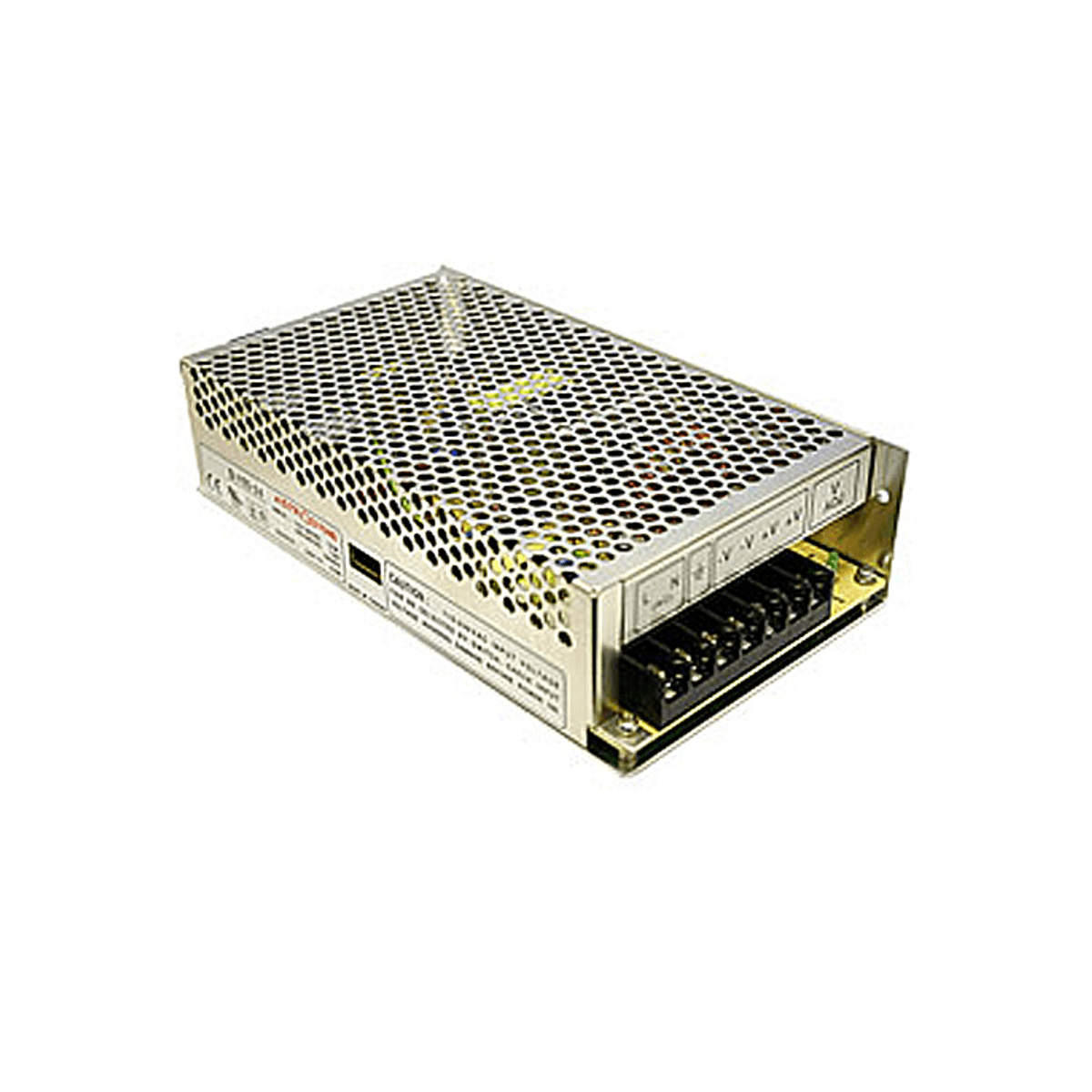

PW-150-24 SERIESPW-150-24Power Supply
Quick Facts
PW-150-24 Accessories
PW-150-24 Accessories
Features
- Universal Input
- High Efficiency
- Built in PFC Circuit
- 3000 V Isolation
- Single Outputs
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT (MAX) | MIN. LOAD |
|---|---|---|---|
| SINGLE OUTPUT | |||
| PW-150-24 | 24 VDC | 6.5 A | 0A |
| LINE | NEUTRAL | GROUND |
|---|---|---|
| Black | White | Green |

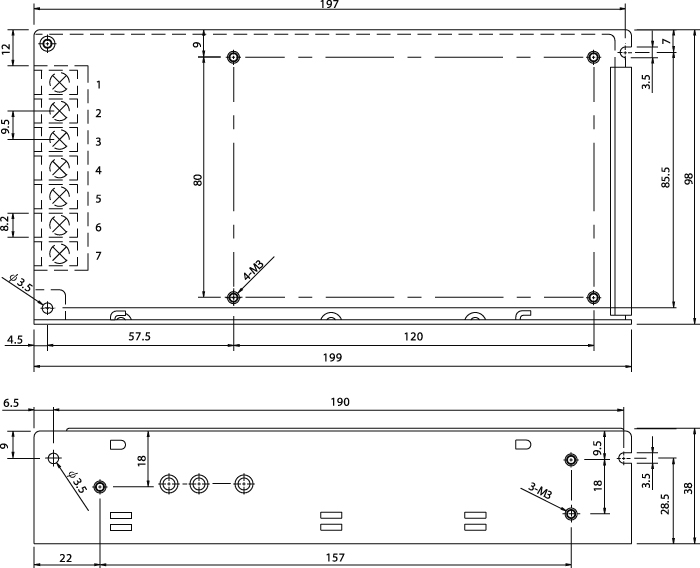

Dimension
Pin Outs
| PIN NUMBER | FUNCTION |
|---|---|
| 1 | AC Line |
| 2 | AC Neutral |
| 3 | FG |
| 4 | - Output |
| 5 | - Output |
| 6 | + Output |
| 7 | + Output |
Electrical Specifications
| INPUT SPECIFICATIONS | |
| Input Voltage Range Input Current 3.3V: Frequency Range: Inrush Current, typ: Leakage Current | 85-264 VAC 2.2 A/ 115 V 1.1A/230V 1.5A/ 115V 0.8A/230V 47-440 Hz Cold Start 40A/230V * < =0.96/230V.>=0.98/115V |
| OUTPUT SPECIFICATIONS | |
| Voltage and Current Load Reulation (0%-FL) Line Regulation Output V. Tolerance DC Voltage Adjust Temperature Coefficient Ripple/ Noise 24,27, 48 Vout All other O/P's Over Voltage Protection Overload Protection Setup/ Rise/ Holdup (230 VAC) | See Selection Chart +/- 0.5 to 1% Max of FS, typ +/- 0.5%, typ +/- 1-2%, typ +/- 10%, -5% +/- 0.05%/ºC (0-50ºC) 250mVp-p, typ 100Vp-p, typ 110% ~ 135% * Shutdown; Re-power on 105 ~ 150%, Constant 1 Limit Auto Recovery 600mS/ 30mS/ 20mS |
| GENERAL SPECIFICATIONS | |
| Input-Out Isolation Isolation Resistance I/P-O/P, I/P-G O/P-G: Efficiency (3.3 V through 48V) Switching Frenquency Safety EN60950 UL1950 | I/P-O/P: 300 VAC I/P-G: 1500 VAC O/P: 0.5KVAC 500VDC/100 80%, typ 135 Khz, (fixed, typical) TUV File#9754834 UL File# E183223 |
| ENVIROMENTAL SPECIFICATIONS | |
| Oper. Temperature Storage Temperature Relative Humidity Vibration EMC MTBF | -10 ~ +60ºC -20 to +85ºC 10% to 95%, non-cond * 10 ~ 500Hz, 2G 10min./ 1cycle, Period for 60 min. Each Axes CISPR22 (EN55022)B, EN61000-4-2,3,5,6,8,11 ENV50204 EN61000-3-2,-3 MTBF 75,000 Hrs |
| PHYSICAL SPECIFICATIONS | |
| Size Contruction Weight | 3.0" x 8.7" x 1.6" Open Frame 19.4 oz, (550g) |
