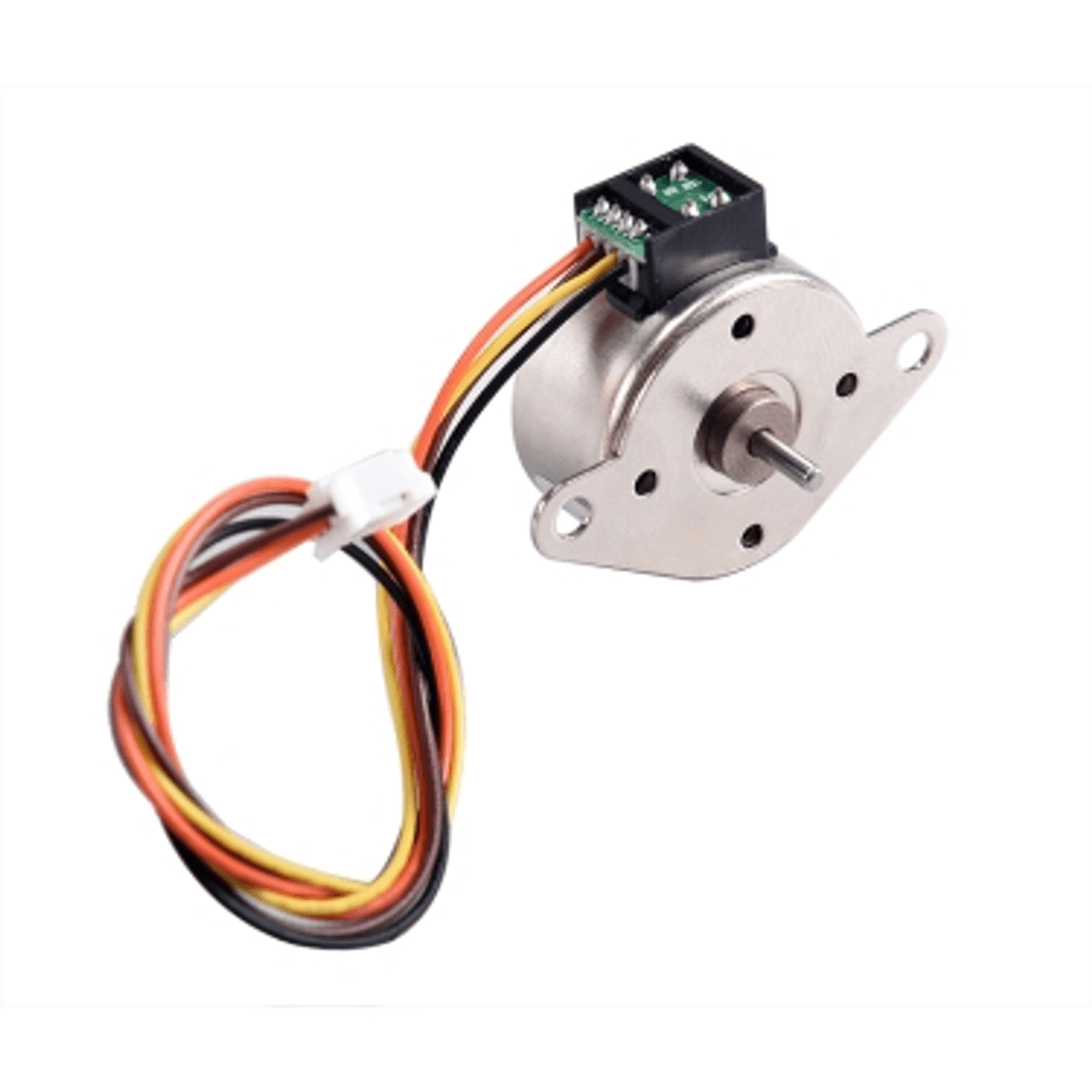

PM25 Series
Specifications:
- 0.980 in Frame Size
- 7.5° Step Angle
- 12 Rated Voltage
- 0.32 to 0.5 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Holding torque | Inertia, oz-in² | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PM25L-075-035 | 0.980 in | 0.670 in | 7.5° | 12 VDC | 0.35 AMP/Phase | 3.75 oz-in | 0.005 oz-in² | 0.086 lbs | online |
| PM25S-075-050 | 0.980 in | 0.490 in | 7.5° | 12 VDC | 0.5 AMP/Phase | 2.22 oz-in | 0.003 oz-in² | 0.066 lbs | online |
| PM25S-075-032 | 0.980 in | 0.490 in | 7.5° | 12 VDC | 0.32 AMP/Phase | 2.22 oz-in | 0.003 oz-in² | 0.066 lbs | online |
| PM25L-075-047 | 0.980 in | 0.670 in | 7.5° | 12 VDC | 0.47 AMP/Phase | 3.47 oz-in | 0.005 oz-in² | 0.086 lbs | online |
Torque Curves
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| PM25L-075-035 | 0.670 in |
| PM25S-075-050 | 0.490 in |
| PM25S-075-032 | 0.490 in |
| PM25L-075-047 | 0.670 in |
Operating Specifications
| Radial Shaft Loading | 1.124 lbs |
| Axial Shaft Loading | 0.22 lbs |
| Radial Shaft Play | 0.002 in |
| Axial Shaft Play | 0.024 in |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -22 °F to 158.00 °F |
| Humidity Range | 15 - 85% RH |
