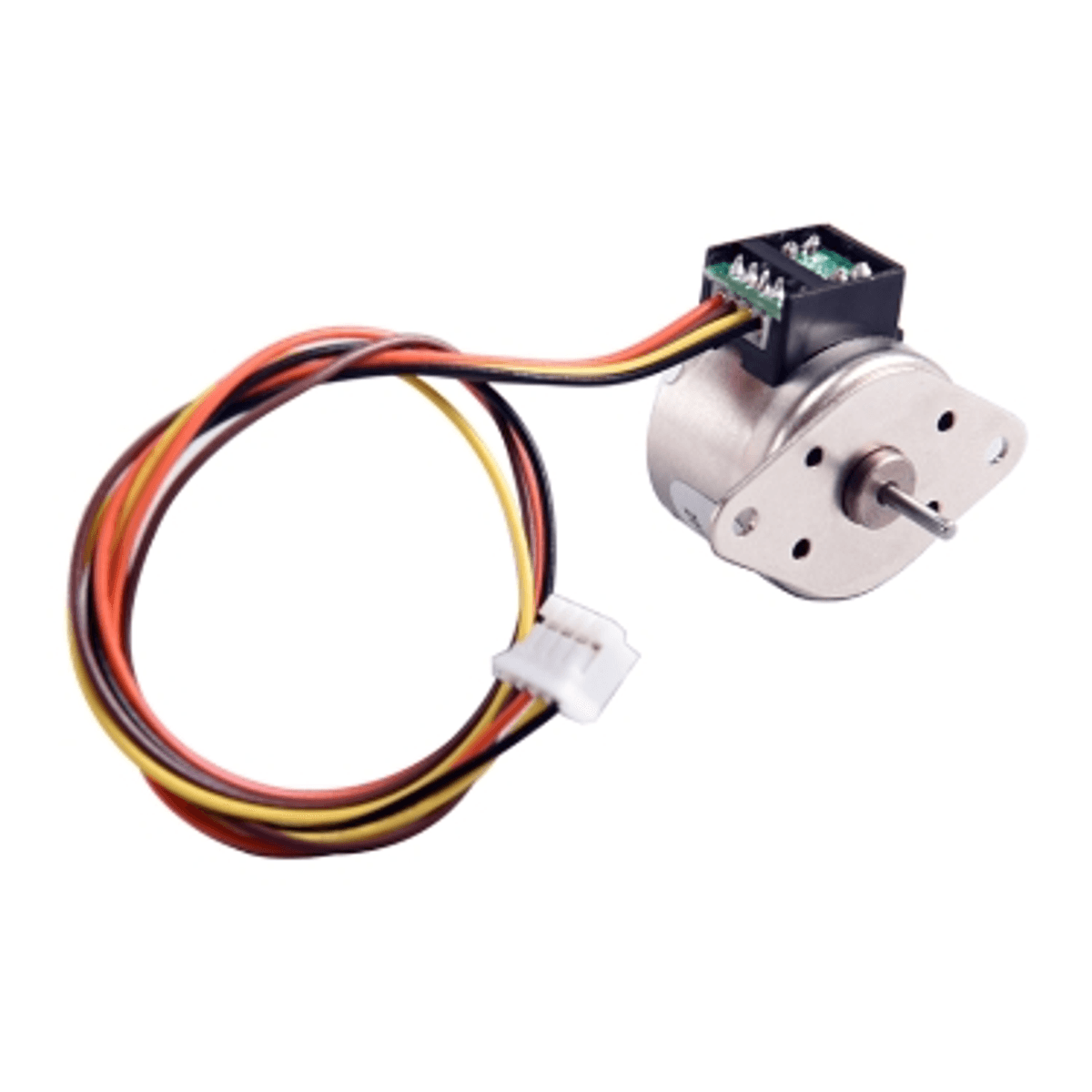

PM20 Series
Specifications:
- 0.790 in Frame Size
- 18° Step Angle
- 12 Rated Voltage
- 0.21 to 0.43 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Holding torque | Inertia, oz-in² | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PM20S-180-033 | 0.790 in | 0.560 in | 18° | 12 VDC | 0.33 AMP/Phase | 1.18 oz-in | 0.001 oz-in² | 0.046 lbs | online |
| PM20L-180-043 | 0.790 in | 0.760 in | 18° | 12 VDC | 0.43 AMP/Phase | 1.67 oz-in | 0.002 oz-in² | 0.06 lbs | online |
| PM20S-180-021 | 0.790 in | 0.560 in | 18° | 12 VDC | 0.21 AMP/Phase | 1.18 oz-in | 0.001 oz-in² | 0.046 lbs | online |
| PM20L-180-025 | 0.790 in | 0.760 in | 18° | 12 VDC | 0.25 AMP/Phase | 1.67 oz-in | 0.002 oz-in² | 0.06 lbs | online |
Torque Curves
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
- Pull Out
- Pull In
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| PM20S-180-033 | 0.560 in |
| PM20L-180-043 | 0.760 in |
| PM20S-180-021 | 0.560 in |
| PM20L-180-025 | 0.760 in |
Operating Specifications
| Radial Shaft Loading | 1.124 lbs |
| Axial Shaft Loading | 0.22 lbs |
| Radial Shaft Play | 0.002 in |
| Axial Shaft Play | 0.024 in |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -22 °F to 158.00 °F |
| Humidity Range | 15 - 85% RH |
Downloads
PM20 3D Models (ZIP)
