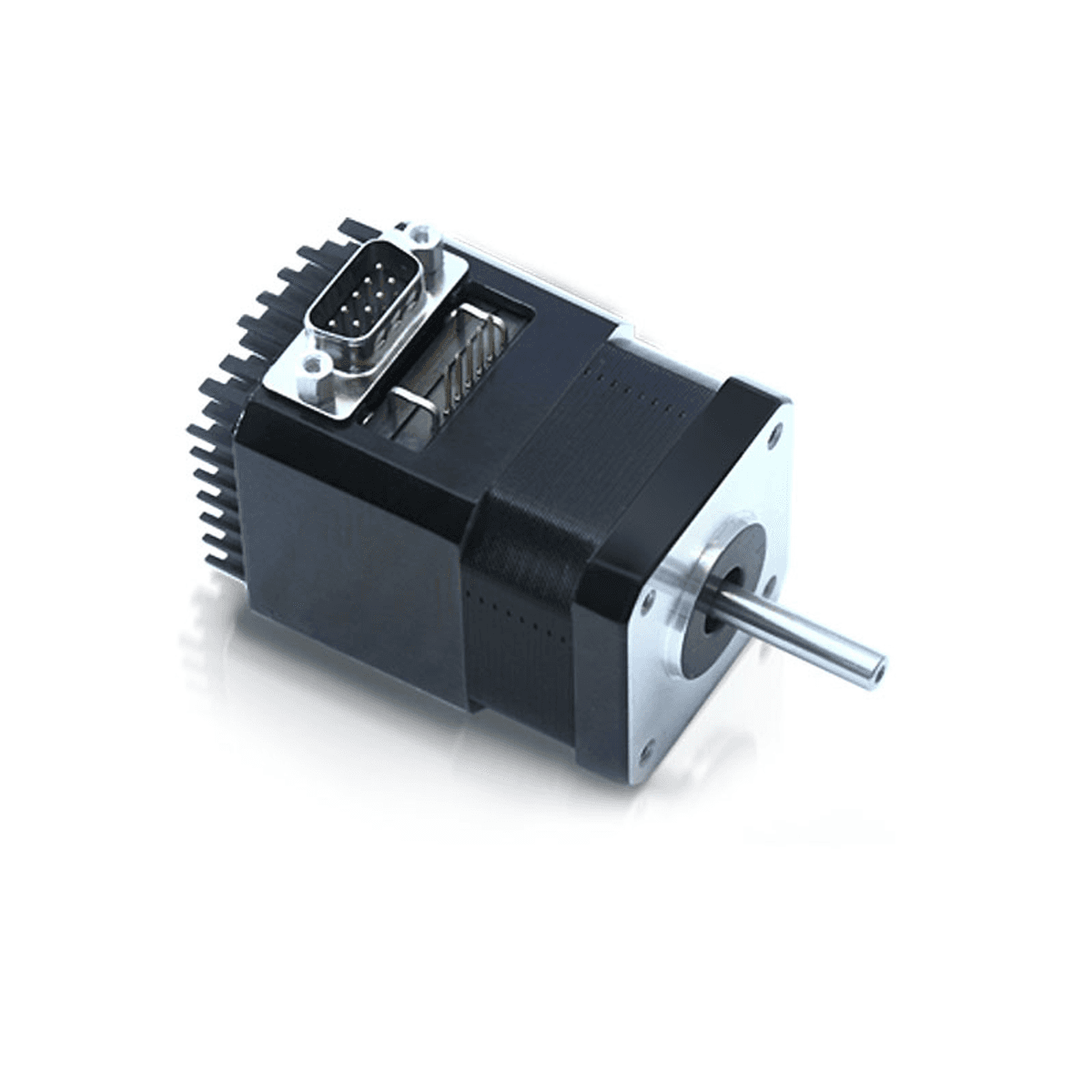

Silverpak 17CE Series
MOTOR + DRIVER + CONTROLLER + ENCODER

Features and Benefits:
  • NEMA 17, 1.8º Bipolar Step Motor
  • Operates from +12 to 24 VDC
  • Up to 85 oz-in of Holding Torque
  • Phase current ranges from 0.25 to 2.0 Amps Peak
Specifications:
  • 1.650 in Frame Size
  • 1.8° Step Angle
  • 2.69 to 3.24 in Length
  • 29.74 to 86.38 oz-in Holding Torque

Models

Model #NEMA sizeFrame sizeStep AngleBody Length inHolding Torque oz-inAvailability
CE-4118S-01NEMA 171.650 in1.8°2.690 in29.74 oz-inquote
CE-4118M-03PNEMA 171.650 in1.8°2.920 in45.32 oz-inquote
CE-4118L-06PNEMA 171.650 in1.8°3.240 in86.38 oz-inquote

Torque Curves

Speed

RPM
  • CE-4118S-01
  • CE-4118M-03P
  • CE-4118L-06P
RPM

Notice

Due to unprecedented product demand along with the ongoing supply chain related issues with semiconductors, we are experiencing extended lead times for this product.



Please contact your account manager or sales@linengineering.com for additional information.

Options

Each Silverpak comes with the following cable (Lin part number 090-00044):

DB-9 cable with white 3-pin connector

Content image

The Designer’s Kit (sold separately) enables first time users to become well acquainted with the options of our Silverpak C

RS485 Designer’s Kit (Lin part number: RS232KIT) Includes:

  • RS485 to RS232 Converter Card
  • An Optical Sensor
  • Red Switch Push Button
  • 3-Pin Cable
Content image

SilverPak C has a NEMA Size 17 Step Motor, and comes in three different sizes:

PART NUMBERMOTOR BODY LENGTH
in (cm)
HOLDING TORQUE
oz-in (N-cm)
4118S2.69 (6.83)30 (21.19)
4118M2.92 (7.42)45 (31.79)
4118L3.24 (8.23)85 (60.03)

Dimensions

DB-9 Connector for Control (A)

Motor Front Shaft Extension Length (B)
Standard length is 0.94” (23.9mm)

Motor Shaft Diameter (C):
Standard shaft diameter is 0.1968” (5 mm)

Overall Body Length
Motor body length is available in various lengths (D):
. Model 4118S 2.69″ (6.83cm)
. Model 4118M 2.92″ (7.42cm)
. Model 4118L 3.24″ (8.23cm)

Encoder (E)

Content image

Pin Outs

PIN NUMBERCOLOR (#26 AWG Lead)FUNCTIONINPUT
1Red+V (Main Power In)
2BlackI/O1
3BrownRS485B (-)
4Black/WhiteRS485A (+)
5OrangeSwitch Closure to GND (IN)4
6GreenGND (-V of main pwr in)
7WhiteOpto Sensor Phototransistor (IN)3
8BlueI/O2
9YellowOpto Sensor LED (Power Out)

* Inputs are labeled 1, 2,3 and 4 for programming the ‘halt’ and ‘skip’ Commands. See Silverpak CE manual for more information.


The DB-9 provides power and controls

Content image
