Configured Part Number
WO-3809V-03
Configure This Motor
No Gearbox
Single Shaft
Flat Shaft
No Encoder
Unit Price:
$74.78
Inventory:
0 Available
Looking For Higher Volume?
3809 Series - Rapid Prototyping Motors3809V-03Hybrid Stepper Motor
Quick Facts

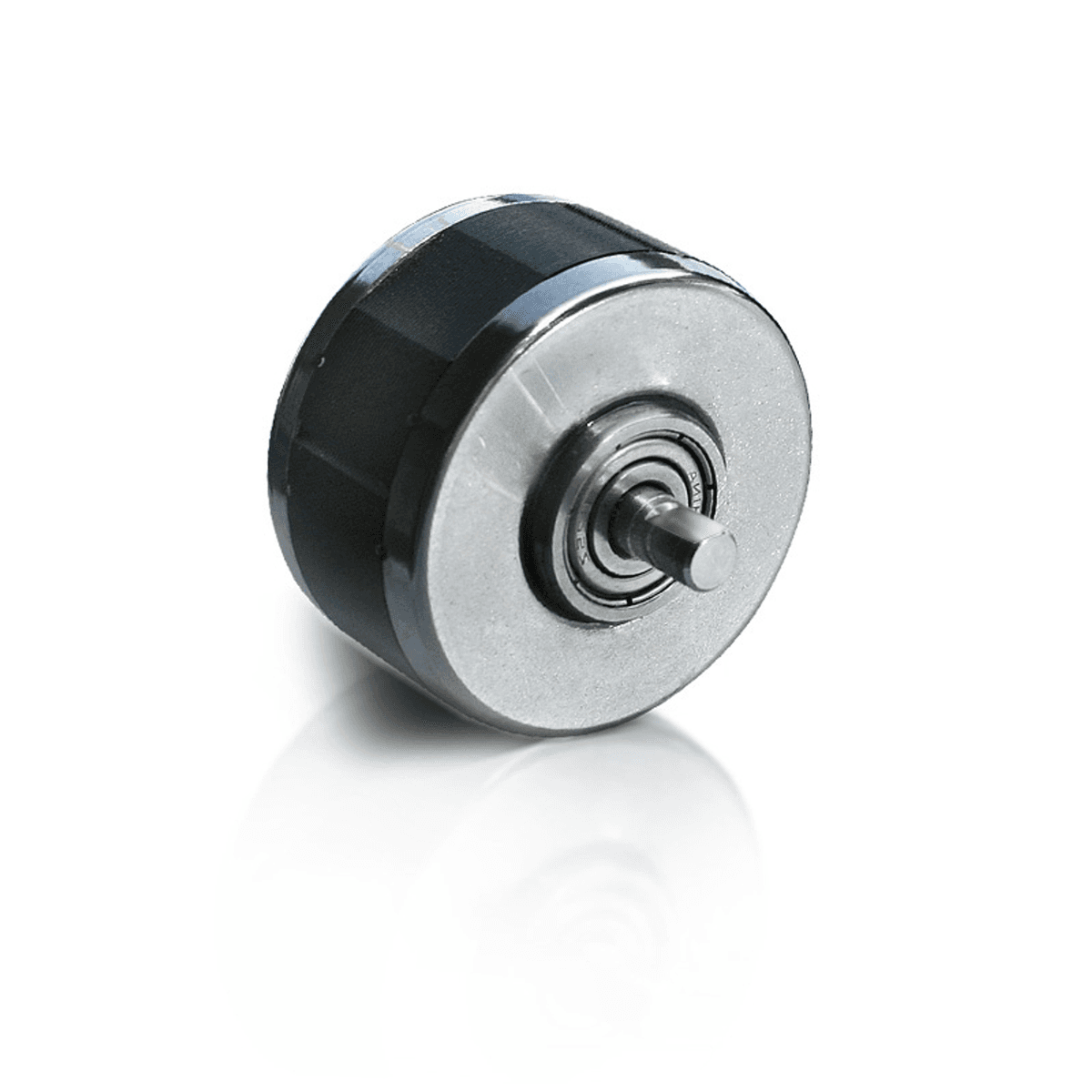

3809V-03 Hybrid Stepper Motors
3809V-03 Hybrid Stepper Motors
Features and Benefits:
- Signature Series Technology for ultimate smooth motion and high accuracy
- Ideal for custom housings
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| 3809V-03 | 0.780 [19.8] in |
Torque Curves
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | 3809V-03 |
| Configured Motor Part Number | WO-3809V-03 |
| Step Angle | 0.9° |
| Frame Size | 1.430 in |
| NEMA Size | NEMA 14 |
| Body Length | 0.780 in |
| Current (AMP) | 1.2 AMP |
| Holding Torque | 15.58 oz-in |
| Resistance | 3 ohm |
| Rotor Inertia | 0.07 oz-in² |
| Number of leads | 4 |
| Connection | Bipolar |
| Weight | 0.271 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 6 lbs |
| Dimension "K" | 0.500 in |
| Max Axial Load | 6 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature * | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 V |
* Do not operate the motor until its temperature has stabilized within the ambient operating range of -20°C to 50°C.
3809 Series
Downloads
WO-3809V-03 Configured Datasheet (PDF)
Motor Numbering System (PDF)
