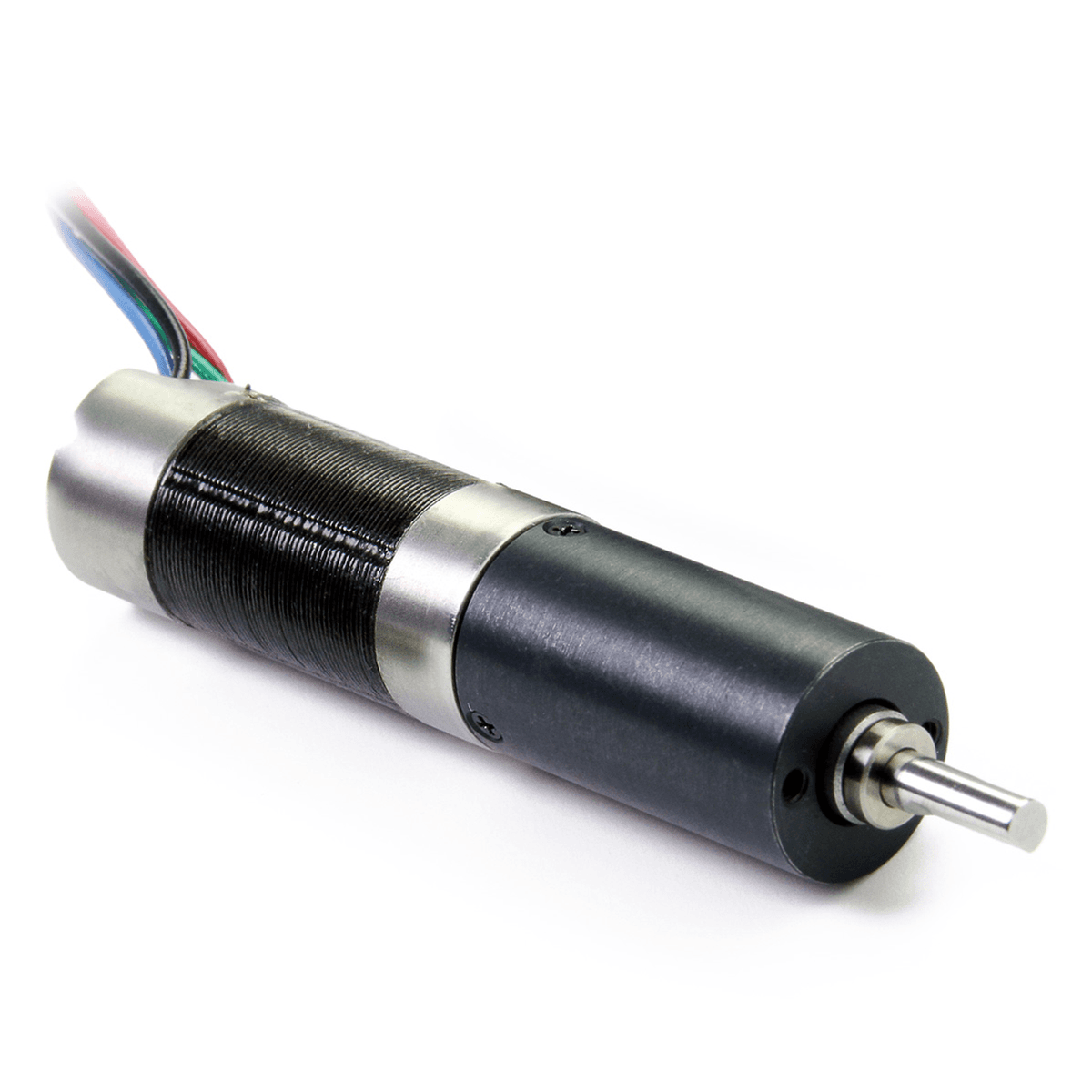

1330 Series
1330-13-01D-G02
HPM Stepper Motor

Specifications:
  • 5 (0.510 in) Frame Size
  • 0.45° Step Angle
  • 2.130 in Length
  • 40.25 oz-in Holding Torque

Unit Price:

$125.00

Inventory:

10 Available in 2 Business Days

Ships:

2 Business Days

Part Number:

1330-13-01D-G02

With Gearbox 66:1 ratio
With Rear Shaft
Flat Shaft
No Encoder

Current product is temporary unavailable.
If you have any questions , please contact us by link below.

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Dimensions

ModelDIM. A (length) in
1330-13-01D-G022.130 in

Torque Curves

Speed

RPM
RPM

Motor Specifications

Base Motor Part Number1330-13-01D-G02
Step Angle0.45°
Frame Size0.510 in
NEMA SizeNEMA 05
Body Length 2.130 in
Current (AMP)0.9 AMP
Holding Torque 40.25 oz-in
Resistance1.1 ohm
Number of leads4
ConnectionBipolar
Weight0.243 lbs

Operating Specifications

Maximum Case Temperature176.00 °F maximum
Ambient Temperature-4 ° to 122.00 °F
Storage Temperature-4 ° to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Features And Benefits

Content image

We’ve taken the best parts of a Hybrid Stepper, PM stepper, and a BLDC motor, and combined them to create a motor that acts as a high-speed BLDC motor with the benefits of Hybrid Stepper technology: precise positioning control, position holding, and low-speed operations. This motor opens new possibilities for engineers to create motion that was not feasible before. Imagine being able to precisely control the movement, stop and hold the position, and then drive the motor at speeds of 9,000 RPM. No other motor on the market today can do that.

HPM Technology

HPM stands for Hybrid-PM-Mix. It’s the first motor of its kind. We’ve combined the stator of a Hybrid Stepper and a rotor of a PM motor in a form factor of a high-speed BLDC. The result is a motor that behaves like a typical high-speed BLDC with the added benefits of Hybrid steppers: precise position control and position holding.

Low Noise and Vibration

The motor is free of buzzing and humming associated with conventional steppers, making it ideal for applications where noise can be of concern. The 1330 Series is also a low vibration and low resonance motor that introduces virtually zero vibration to the system, even at high speed.

Just 13mm Diameter

The 1330 Series is a small motor with a frame size of just 13 mm making it one of the smallest stepper motors we offer. This makes it perfect for small applications with minimal space.

High Speed

The 1330 Series can reach speeds up to 9,000 RPMs thanks to the special design and large step angle. This makes the motor great for small applications that require high speeds.

Precise Control

The 1330 Series has a 30° step angle which allows the motor to have positional control in an open loop design. When paired with a gearhead, the step angle can be reduced to accommodate even the most demanding application.

Variety of Applications

The 1330 Series is used in many different applications including electrical oil valves, electric grippers, syringe pumps, miniature hydraulic pumps, and more.

Card image

Electric Grippers

Card image

Miniature Hydraulic Pumps

Card image

Electric Oil Valves

Card image

Syringe Pumps

1330 Series Gearbox

Content image

The 1330 can be paired with different gearheads to accommodate a wide range of operating speeds while maintaining needed torque output. Gear ratios include: 16:1, 66:1, and 271:1. Additional gear ratios are available upon request.

1330 Series vs Coreless

  • The 1330 Series has similar performance to a coreless DC motor, however, the 1330 Series provides many other benefits. Precise speed control and positional control as well as the ability to hold its position without the need for a feedback loop.

  • The 1330 can achieve ultra-low speeds without much cogging. This helps to make the 1330 series more smooth than competing coreless designs.

  • The 1330 is a cost-effective solution compared to a coreless motor since the 1330 can be operated in an open-loop configuration, therefore it requires less expensive electronics to operate.
Content image

1330 Series
