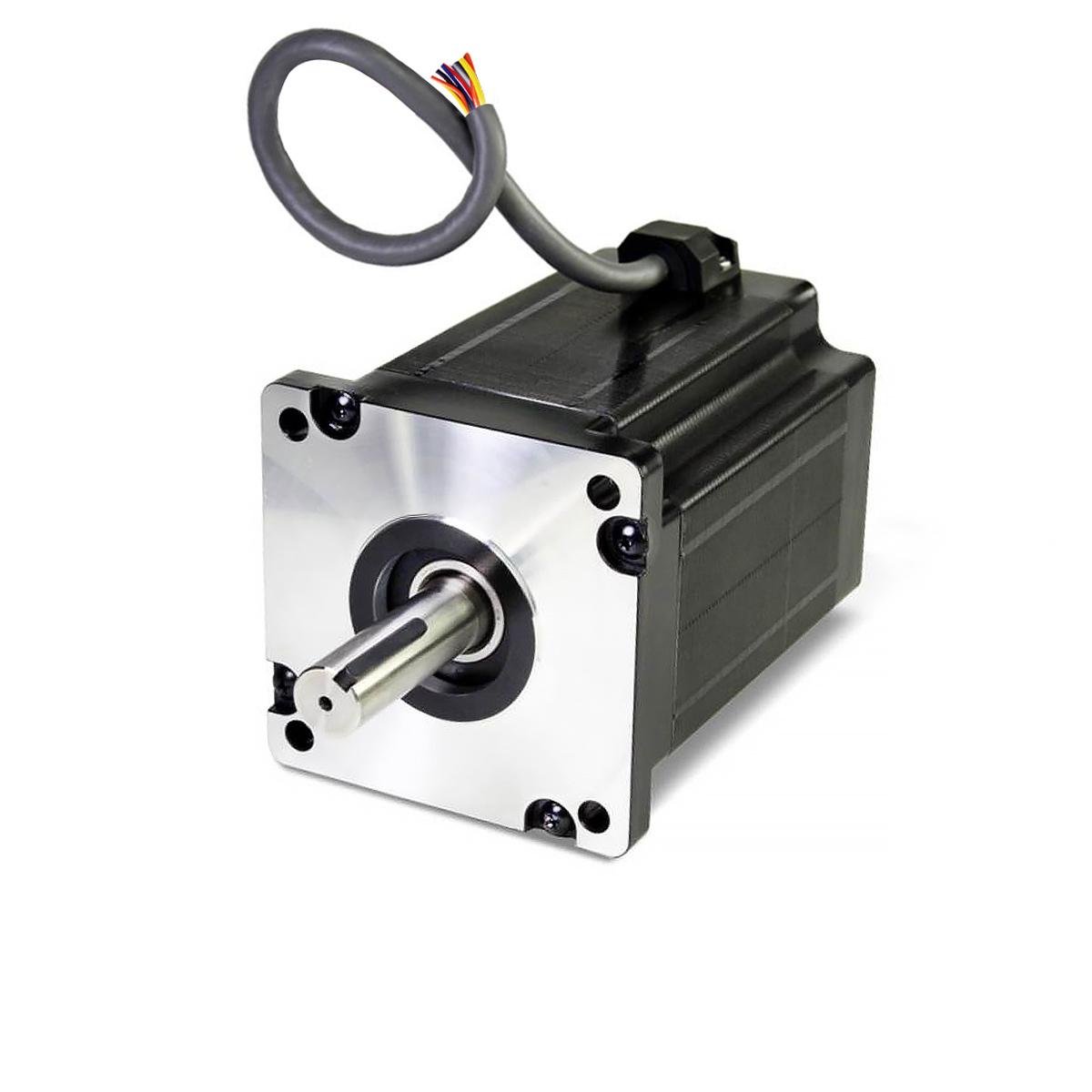

11018 Series - Rapid Prototyping Motors11018-202-90EHybrid Stepper Motor
Quick Facts
11018-202-90E Hybrid Stepper Motors
- Extreme Torque
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Dimensions
| Model | DIM. A (length) in |
|---|---|
| 11018-202-90E | 7.910 in |
Torque Curves
Select Winding type
This motor can be wired as Series or Parallel motor winding. Please select preferred winding for this motor.
Speed
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
Select Winding type
This motor can be wired as Series or Parallel motor winding. Please select preferred winding for this motor.
| Base Motor Part Number | 11018-202-90E |
| Configured Motor Part Number | 11018-202-90E |
| Step Angle | 1.8° |
| Frame Size | 4.330 in |
| NEMA Size | NEMA 42 |
| Body Length | 7.910 in |
| Current (AMP) | 12 AMP |
| Holding Torque | 4389.97 oz-in |
| Resistance | 0.23 ohm |
| Rotor Inertia | 88.57 oz-in² |
| Number of leads | 8 |
| Connection | Bipolar-Parallel |
| Weight | 25.574 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 39 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
Wiring Diagram
11018 Series
Downloads
11018-202-90E Configured Datasheet (PDF)
11018-202 3D Model (STP)
Motor Numbering System (PDF)
