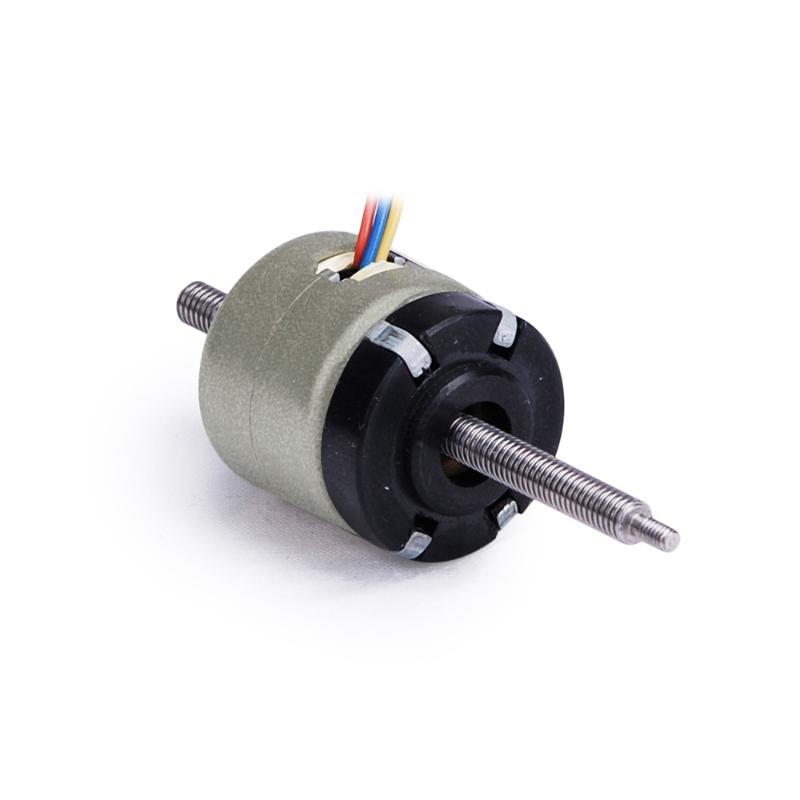

LNPM20M-150-040 Series PM Linear Stepper Motors
LNPM20M-150-040 Series PM Linear Stepper Motors
Specifications:
- 0.790 in Frame Size
- 15° Step Angle
- 3.4 Rated Voltage
- 0.4 A/Phase
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LNPM20M-150-040 | 1.000 in |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Part Number | LNPM20M-150-040 |
| Style | LN |
| Step Angle | 15° |
| Frame Size | 0.790 in |
| Body Length | 1.000 in |
| Rated Current | 0.4 AMP |
| Rated Voltage | 3.4 VDC |
| Leadscrew Lead | 0.024 in |
| Step Travel | 0.001 in |
| Holding Force | 6.744 lbf |
| Resistance | 5.8 ohm |
| Connection | Bipolar |
| Phase | 2 |
| Weight | 0.06 lbs |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.008 in @ 2.023 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -13 °F to 158.00 °F |
| Humidity Range | 10-95% |
