LE17 SERIES

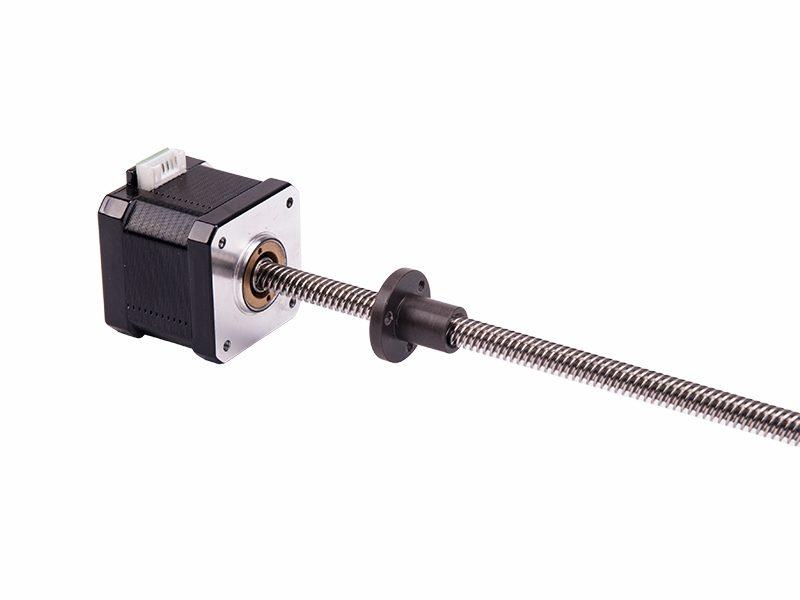

LE17D2200-T0808-300N-AR

Motor Configuration:

Screw

Ø: 0.320 in Lead: 0.315 in (T0808)

Screw Length

Screw End Finish

No End Finish

Nut

Circular Flange (AR)


Unit Price:

$144.10

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

Part Number:

LE17D2200-T0808-300N-AR

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size1.670 in
Motor Length1.570 in
Rated Current2 AMP
Motor Step Angle1.8°
Screw Lead0.315 in
Screw Diameter0.320 in
Screw Length11.810 in
Linear Travel Per Step0 in
Resistance1.04 ohm
Rotor Inertia0.312 oz-in²
Windingbipolar
Weight0.6 lbs

Motor Dimensions

Dimension A1.570 in
Dimension L (Lx + Lu)11.810 in (±0.060 in)

Performance Chart

LE17D2200 with T0808 screw
24 VDC, 2 AMP/Phase

Nut Dimension

TitleAR
Flange TypeCircular Flange
Nut StyleFree Running

Leadscrew End Finish (Front)

No End Finish

DimensionsN/A

Downloads

LE17D2200-T0808-300N-AR Configured Datasheet (PDF)
