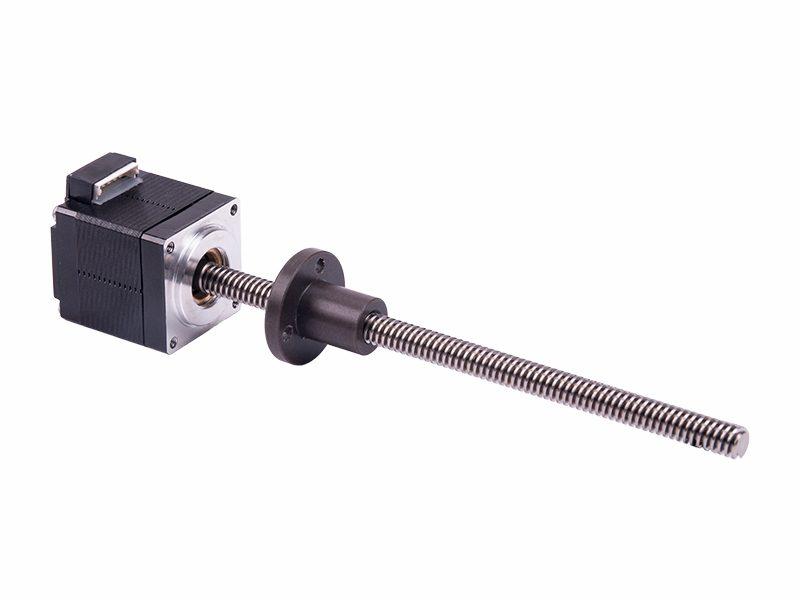

LE11 Series
Features and Benefits:
- External Nut Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 11 (1.110 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.26 to 2.05 in Motor Length
- 0.118 to 0.5 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LE11S1050-E06063-200N-AR | 1.110 in | 1.260 in | 0.5 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LE11S1050-E06127-200N-AR | 1.110 in | 1.260 in | 0.5 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LE11S1050-T6503-200N-AR | 1.110 in | 1.260 in | 0.5 AMP | 0.118 in | 0.260 in | 0.00059 in | Online |
| LE11S1100-E06063-200N-AR | 1.110 in | 1.260 in | 1 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LE11S1100-E06127-200N-AR | 1.110 in | 1.260 in | 1 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LE11S1100-T6503-200N-AR | 1.110 in | 1.260 in | 1 AMP | 0.118 in | 0.260 in | 0.00059 in | Online |
| LE11S5100-E06063-200N-AR | 1.110 in | 2.050 in | 1 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LE11S5100-E06127-200N-AR | 1.110 in | 2.050 in | 1 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LE11S5100-T6503-200N-AR | 1.110 in | 2.050 in | 1 AMP | 0.118 in | 0.260 in | 0.00059 in | Online |
Performance Chart
- LE11S1050-E06063-200N-AR
- LE11S1050-E06127-200N-AR
- LE11S1050-T6503-200N-AR
- LE11S1100-E06063-200N-AR
- LE11S1100-E06127-200N-AR
- LE11S1100-T6503-200N-AR
- LE11S5100-E06063-200N-AR
- LE11S5100-E06127-200N-AR
- LE11S5100-T6503-200N-AR

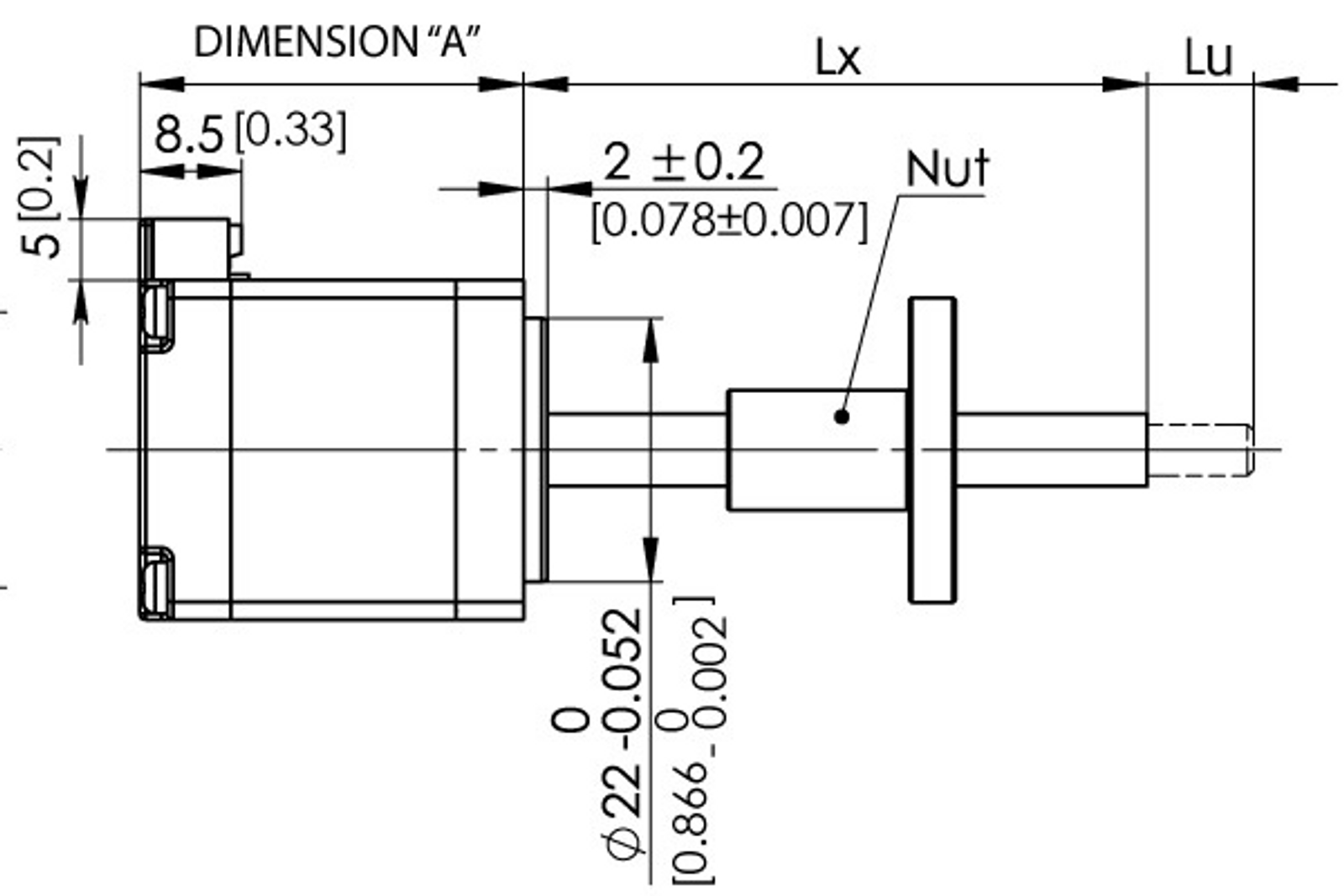

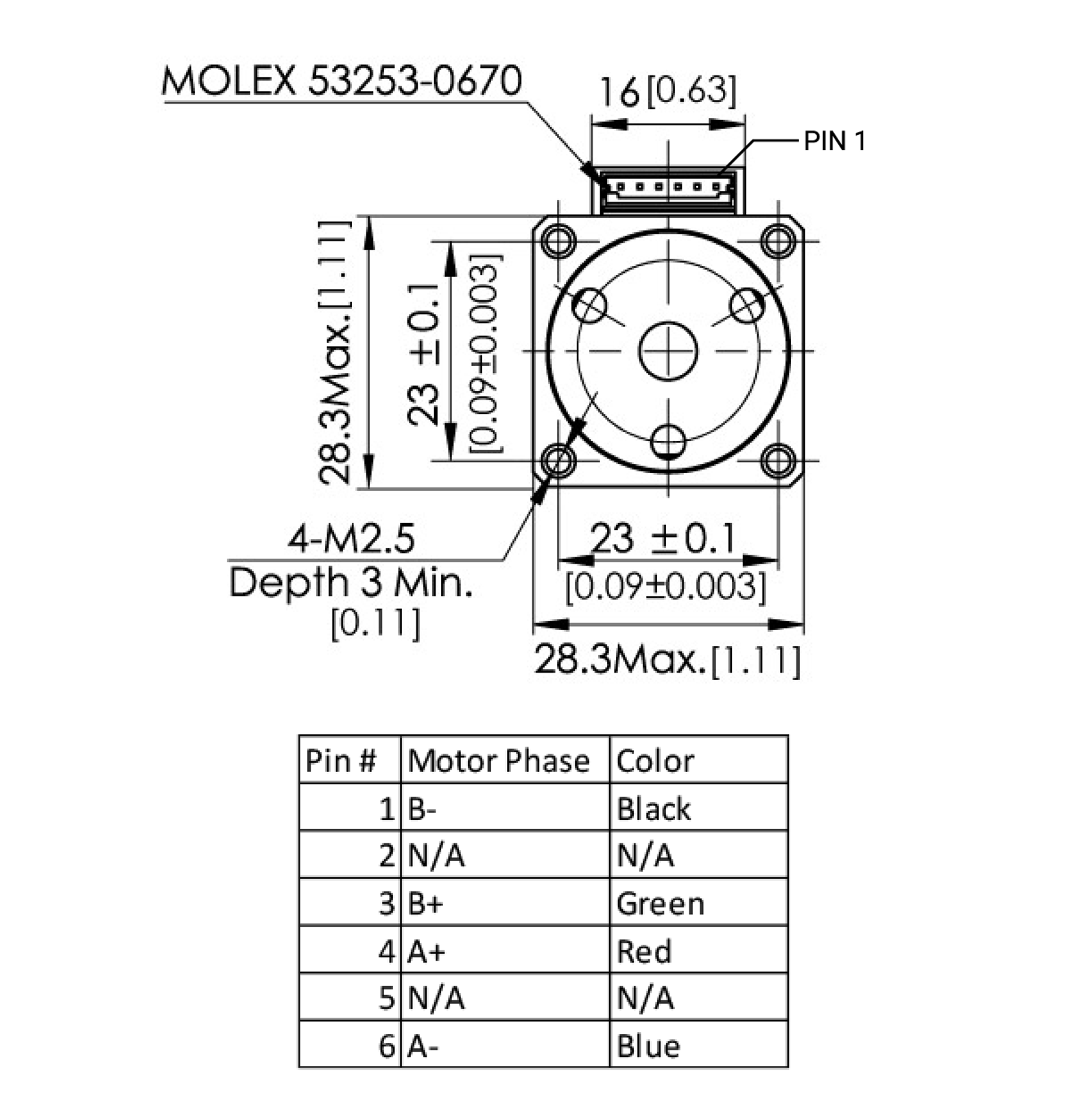

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| LE11S1050-E06063-200N-AR | 1.260 in |
| LE11S1050-E06127-200N-AR | 1.260 in |
| LE11S1050-T6503-200N-AR | 1.260 in |
| LE11S1100-E06063-200N-AR | 1.260 in |
| LE11S1100-E06127-200N-AR | 1.260 in |
| LE11S1100-T6503-200N-AR | 1.260 in |
| LE11S5100-E06063-200N-AR | 2.050 in |
| LE11S5100-E06127-200N-AR | 2.050 in |
| LE11S5100-T6503-200N-AR | 2.050 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
