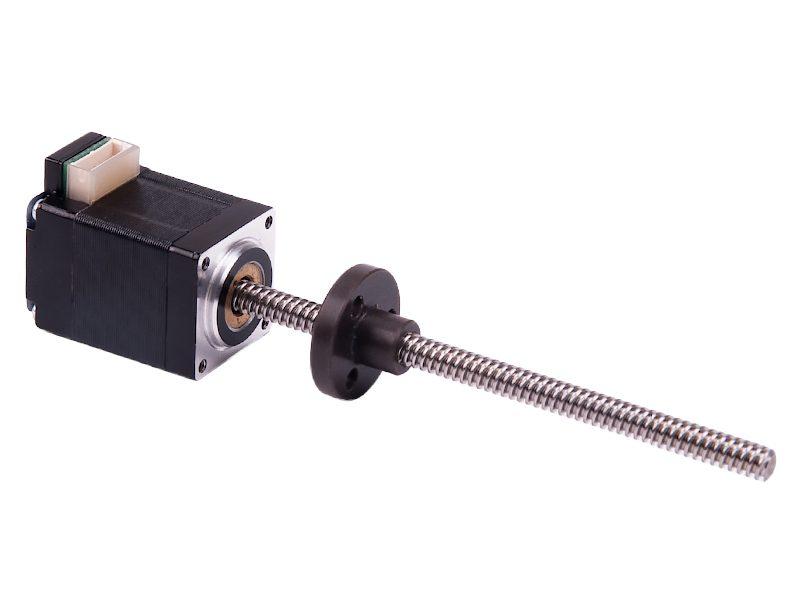

LE08 Series
Features and Benefits:
- External Nut Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 08 (0.800 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.07 in Motor Length
- 0.024 in Screw Lead
Models
Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
---|---|---|---|---|---|---|---|
LE08Y0040-E03006-200N-AR | 0.800 in | 1.070 in | 0.4 AMP | 0.024 in | 0.140 in | 0.00012 in | Online |
Performance Chart
- LE08Y0040-E03006-200N-AR

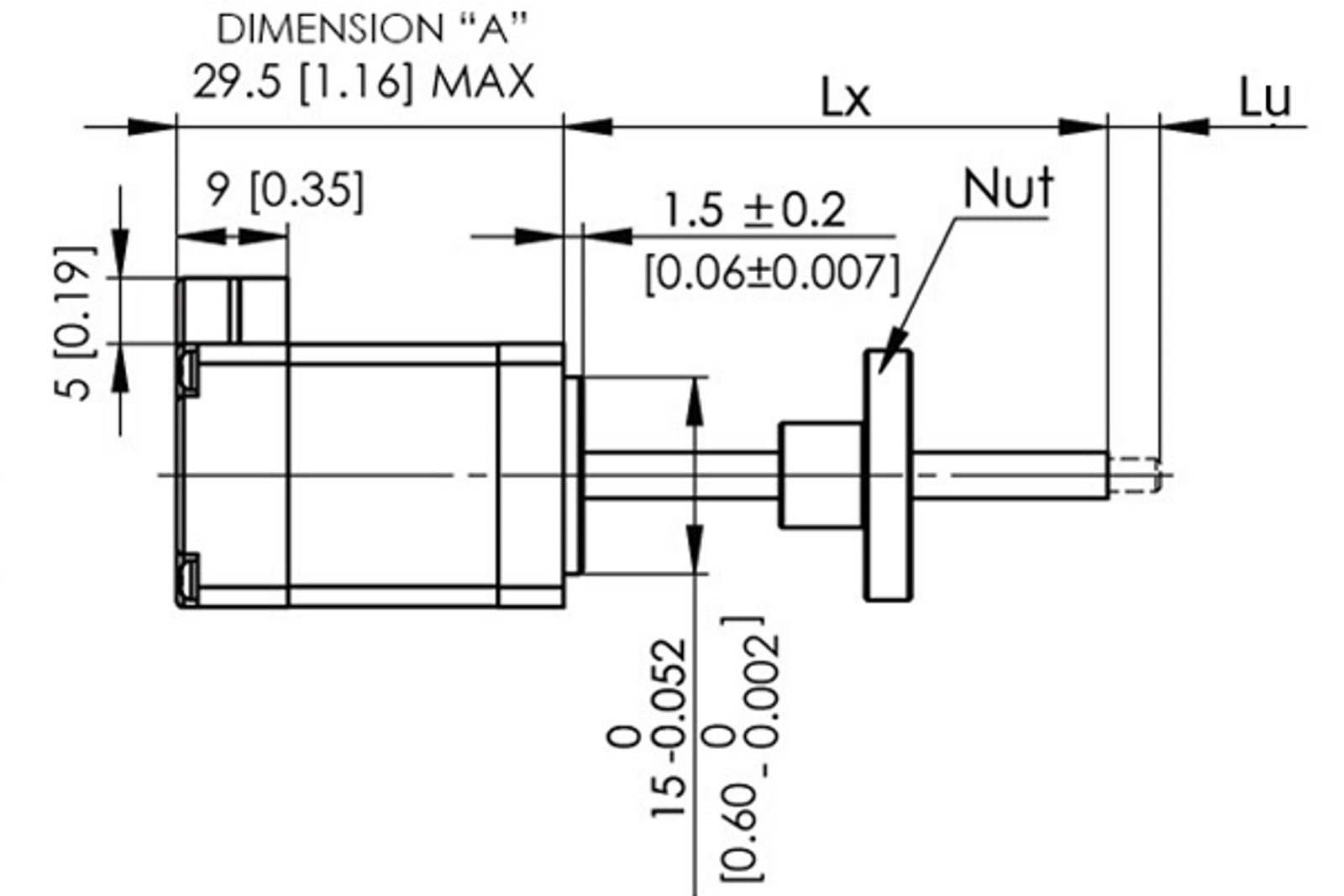

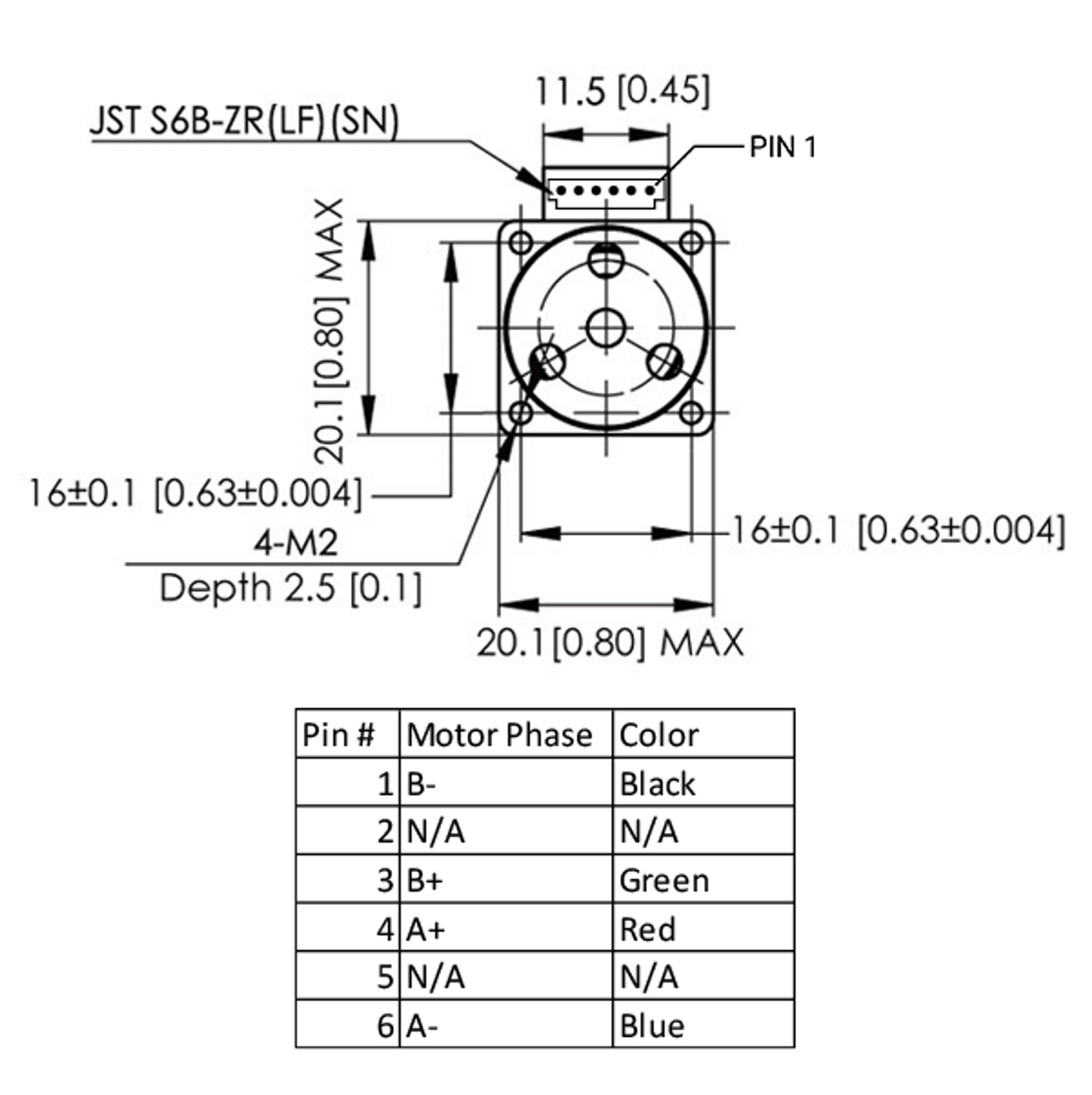

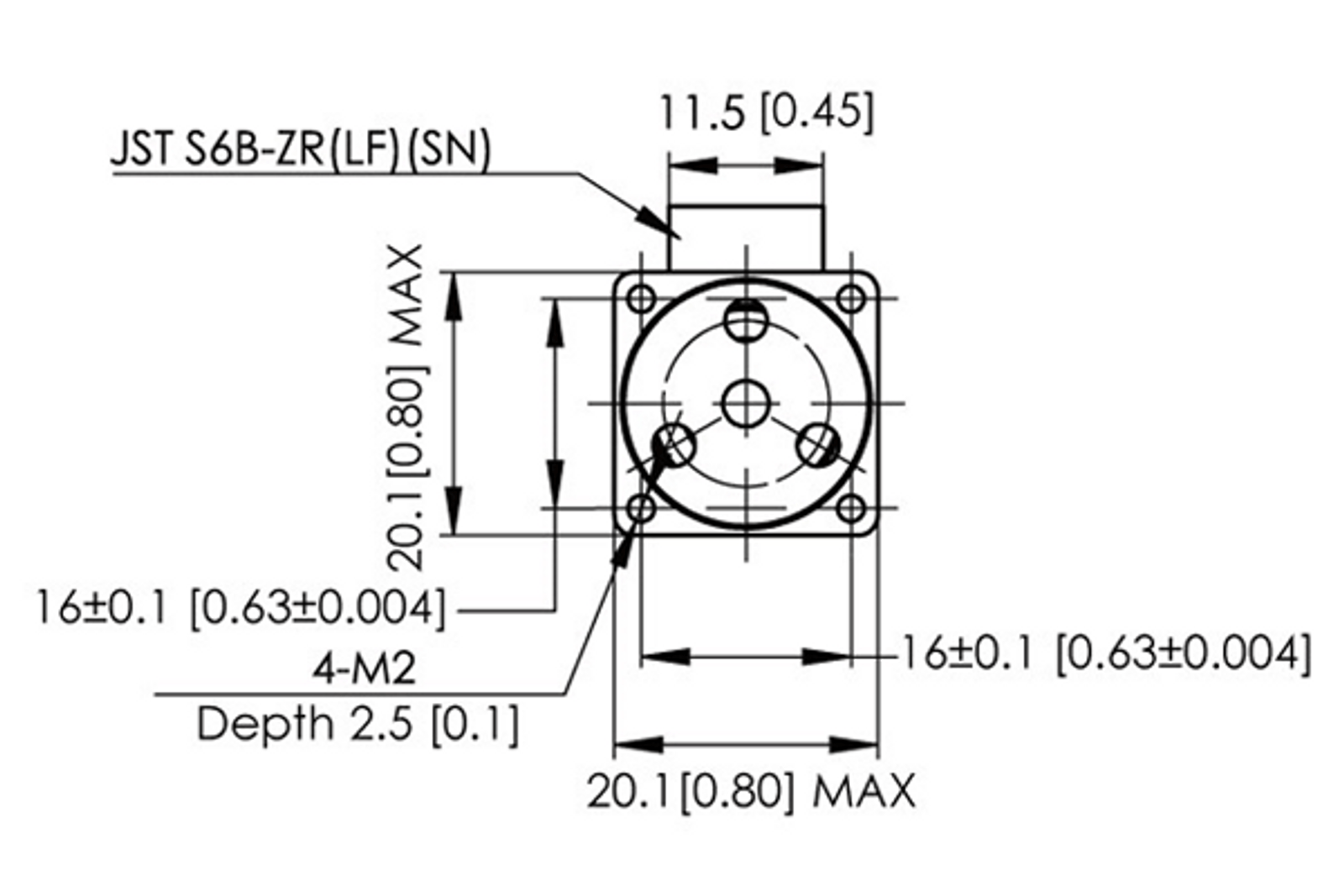

Dimensions
Model | DIM. A (length) in |
---|---|
LE08Y0040-E03006-200N-AR | 1.070 in |
![Dimensions](/_next/image?url=https://lin-product-images.s3.amazonaws.com/1663784800834-N08-FRONT-LINEAR-LE-PIN.png&w=2048&q=100)
![Dimensions](/_next/image?url=https://lin-product-images.s3.amazonaws.com/1661156252620-N08-SIDE-LINEAR-LE.png&w=2048&q=100)
