XCP-T014CN003-12A
XtremeCore Ultra-Compact Frameless Motor
Specifications:
- 14 mm Stator OD
- 3.4 mm Stack Length
- 3 mNm Rated Torque
- 10.5 mNm Peak Torque
- 12 VDC Rated Voltage
Features and Benefits:
- Ultra-compact frameless architecture
- Smooth motion for precision robotics
- High torque density for its size
- Designed for tightly packaged mechanisms
Engineering files:
Compact Torque Density for Highly Integrated Designs

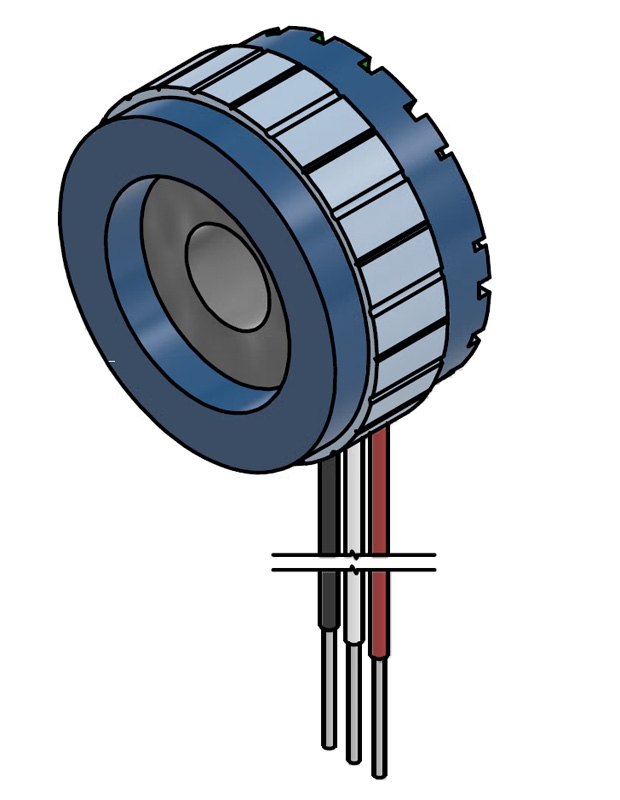

The XCP-T014CN003-12A combines a 14mm stator OD with a 4 mm rotor bore, giving design teams more mechanical flexibility for compact robotic joints, precision grippers, and lightweight embedded actuation.
XtremeCore frameless motors are designed for engineers balancing torque density, controllability, and minimal packaging volume in next-generation compact robotics.
Dimensional Drawing
Specifications
| Rated Voltage | 12 VDC |
| Rated Current | 0.55 A |
| Line-to-Line Resistance | 2.97 Ohm |
| Rated Speed | 17,500 RPM |
| Rated Torque | 3 mNm |
| Peak Torque | 10.5 mNm |
| Peak Current | 1.65 A |
| Stack Length | 3.4 mm |
| Total Length | 7.5 mm |
| Rotor Bore | 4 mm |
| Stator OD | 14 mm |
| Rotor Pole Count | 10 |
For detailed specifications or application guidance, contact Lin Engineering. Click Here
Configured for Your Build
XtremeCore frameless motors can be adapted around your integration priorities:
- Winding optimization for your torque-speed target
- Mechanical integration around tight robotic envelopes
- Sensor, encoder, and feedback selection support
- Application guidance for compact direct-drive motion
Download engineering files or contact our team to discuss your design.
Applications
XtremeCore motors are built for compact systems where motion quality and packaging efficiency are both critical.
- Compact grippers
- Dexterous robotic hands
- Embedded rotary actuators
- Portable instrumentation
