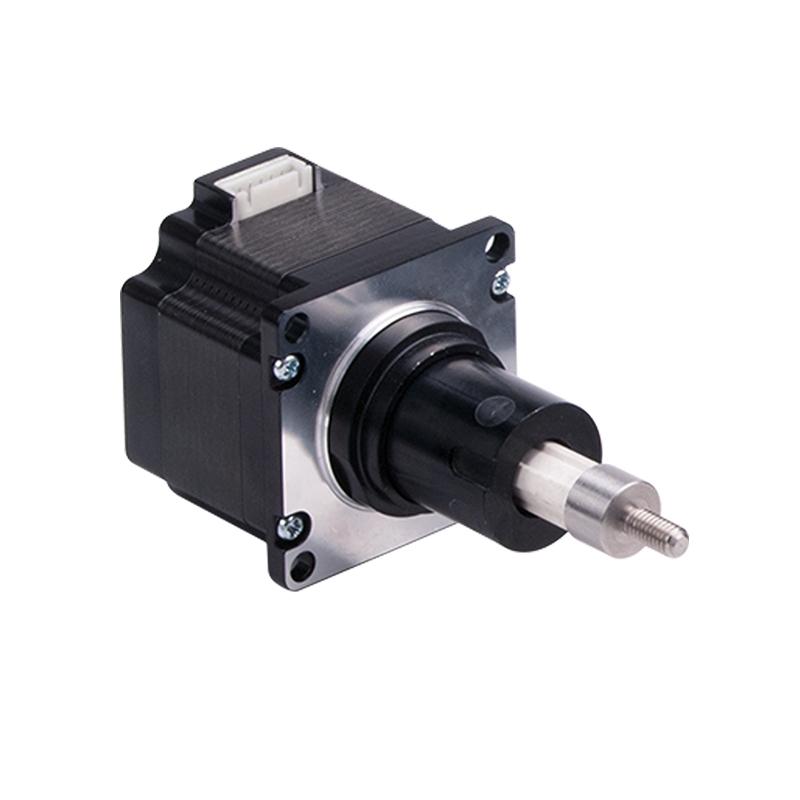

LC23 Series
Features and Benefits:
- Internal Nut: Captive configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 23 Frame Size
- 1.8° Step Angle Stepper Motor
- 1.5 to 3 A Rated Current
- 1.77 to 3.11 in Motor Length
- 0.1 to 0.4 in Screw Lead
Models
| Model # | Frame size | Body length | Rated Current | Screw Diameter | Screw lead | Linear Travel per Step | Rated Thrust | Effective stroke | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LC-5718-079-02-E09050-25M | NEMA 23 | 3.110 in | 3 AMP/Phase | 0.380 in | 0.200 in | 0.001 in | 60.022 lbf @300RPM | 1.000 in | quote |
| LC-5718-057-02-E09102-25M | NEMA 23 | 2.240 in | 2.2 AMP/Phase | 0.380 in | 0.400 in | 0.002 in | 18.658 lbf @300RPM | 1.000 in | quote |
| LC-5718-057-02-E09025-25M | NEMA 23 | 2.240 in | 2.2 AMP/Phase | 0.380 in | 0.100 in | 0.0005 in | 58.448 lbf @300RPM | 1.000 in | quote |
| LC-5718-079-02-E09025-25M | NEMA 23 | 3.110 in | 3 AMP/Phase | 0.380 in | 0.100 in | 0.0005 in | 96.214 lbf @300RPM | 1.000 in | quote |
| LC-5718-079-02-E09102-25M | NEMA 23 | 3.110 in | 3 AMP/Phase | 0.380 in | 0.400 in | 0.002 in | 31.022 lbf @300RPM | 1.000 in | quote |
| LC-5718-045-02-E09050-25M | NEMA 23 | 1.770 in | 2.1 AMP/Phase | 0.380 in | 0.200 in | 0.001 in | 33.27 lbf @300RPM | 1.000 in | quote |
| LC-5718-045-01-E09102-25M | NEMA 23 | 1.770 in | 1.5 AMP/Phase | 0.380 in | 0.400 in | 0.002 in | 14.612 lbf @300RPM | 1.000 in | quote |
| LC-5718-045-01-E09050-25M | NEMA 23 | 1.770 in | 1.5 AMP/Phase | 0.380 in | 0.200 in | 0.001 in | 28.1 lbf @300RPM | 1.000 in | quote |
| LC-5718-045-02-E09102-25M | NEMA 23 | 1.770 in | 2.1 AMP/Phase | 0.380 in | 0.400 in | 0.002 in | 17.085 lbf @300RPM | 1.000 in | quote |
| LC-5718-045-01-E09025-25M | NEMA 23 | 1.770 in | 1.5 AMP/Phase | 0.380 in | 0.100 in | 0.0005 in | 44.96 lbf @300RPM | 1.000 in | quote |
| LC-5718-057-02-E09050-25M | NEMA 23 | 2.240 in | 2.2 AMP/Phase | 0.380 in | 0.200 in | 0.001 in | 36.418 lbf @300RPM | 1.000 in | quote |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

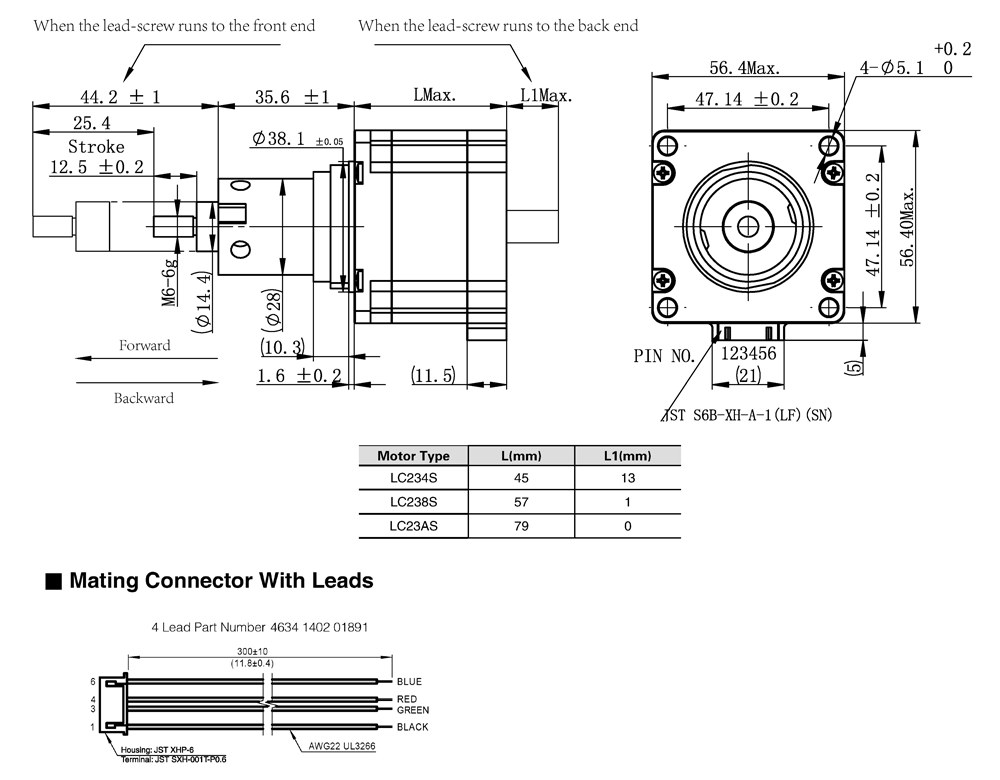

Dimensions
| Model | DIM. A (length) in |
|---|---|
| LC-5718-079-02-E09050-25M | 3.110 in |
| LC-5718-057-02-E09102-25M | 2.240 in |
| LC-5718-057-02-E09025-25M | 2.240 in |
| LC-5718-079-02-E09025-25M | 3.110 in |
| LC-5718-079-02-E09102-25M | 3.110 in |
| LC-5718-045-02-E09050-25M | 1.770 in |
| LC-5718-045-01-E09102-25M | 1.770 in |
| LC-5718-045-01-E09050-25M | 1.770 in |
| LC-5718-045-02-E09102-25M | 1.770 in |
| LC-5718-045-01-E09025-25M | 1.770 in |
| LC-5718-057-02-E09050-25M | 2.240 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
