211-13-01NEMA 11 | 1.8° Step Angle
211-13-01
online
Frame Size1.110 in
Holding Torque8.5 oz-in
ConnectionBipolar
Length1.260 in
Rated Current0.67 AMP
Weight0.24 lbs
211-13-02NEMA 11 | 1.8° Step Angle
211-13-02
Frame Size1.110 in
Holding Torque8.5 oz-in
ConnectionBipolar
Length1.260 in
Rated Current1.3 AMP
Weight0.24 lbs
211-18-01NEMA 11 | 1.8° Step Angle
211-18-01
online
Frame Size1.110 in
Holding Torque14.16 oz-in
ConnectionBipolar
Length1.770 in
Rated Current0.67 AMP
Weight0.311 lbs
211-20-01NEMA 11 | 1.8° Step Angle
211-20-01
online
Frame Size1.110 in
Holding Torque16.99 oz-in
ConnectionBipolar
Length2.010 in
Rated Current0.67 AMP
Weight0.441 lbs
106-13-01NEMA 06 | 3.46° Step Angle
106-13-01
online
Frame Size0.630 in
Holding Torque1.98 oz-in
ConnectionBipolar
Length1.300 in
Rated Current0.6 AMP
Weight0.101 lbs
208-13-01NEMA 08 | 1.8° Step Angle
208-13-01
online
Frame Size0.800 in
Holding Torque3 oz-in
ConnectionBipolar
Length1.300 in
Rated Current0.6 AMP
Weight0.181 lbs

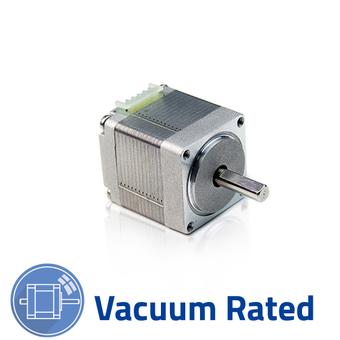

V211-13-01NEMA 11 | 1.8° Step Angle
V211-13-01
Frame Size1.110 in
Holding Torque8.5 oz-in
ConnectionBipolar
Length1.260 in
Rated Current0.67 AMP
Weight0.24 lbs
417-13-13NEMA 17 | 0.9° Step Angle
417-13-13
online
Frame Size1.650 in
Holding Torque28.32 oz-in
ConnectionBipolar
Length1.380 in
Rated Current0.8 AMP
Weight0.41 lbs
LC-211-032-01-E04006-12M1.8° Step Angle
LC-211-032-01-E04006-12M
Frame SizeNEMA 11
Motor Length1.260 in
Rated Current0.5 AMP
Screw Diameter0.190 in
Screw Lead0.025 in
Linear Travel per Step0.0001 in
Rated Thrust11.465 lbf
Effective stroke0.500 in
LC-211-032-01-E04006-25M1.8° Step Angle
LC-211-032-01-E04006-25M
Frame SizeNEMA 11
Motor Length1.260 in
Rated Current0.5 AMP
Screw Diameter0.190 in
Screw Lead0.025 in
Linear Travel per Step0.0001 in
Rated Thrust11.465 lbf
Effective stroke1.000 in
LC-211-032-01-E04006-38M1.8° Step Angle
LC-211-032-01-E04006-38M
Frame SizeNEMA 11
Motor Length1.260 in
Rated Current0.5 AMP
Screw Diameter0.190 in
Screw Lead0.025 in
Linear Travel per Step0.0001 in
Rated Thrust11.465 lbf
Effective stroke1.500 in
LC-211-032-01-E04025-12M1.8° Step Angle
LC-211-032-01-E04025-12M
Frame SizeNEMA 11
Motor Length1.260 in
Rated Current0.5 AMP
Screw Diameter0.190 in
Screw Lead0.100 in
Linear Travel per Step0.0005 in
Rated Thrust6.07 lbf
Effective stroke0.500 in
LC-211-032-01-E04025-25M1.8° Step Angle
LC-211-032-01-E04025-25M
Frame SizeNEMA 11
Motor Length1.260 in
Rated Current0.5 AMP
Screw Diameter0.190 in
Screw Lead0.100 in
Linear Travel per Step0.0005 in
Rated Thrust6.07 lbf
Effective stroke1.000 in
LC-211-032-01-E04025-38M1.8° Step Angle
LC-211-032-01-E04025-38M
Frame SizeNEMA 11
Motor Length1.260 in
Rated Current0.5 AMP
Screw Diameter0.190 in
Screw Lead0.100 in
Linear Travel per Step0.0005 in
Rated Thrust6.07 lbf
Effective stroke1.500 in
3618-012-01-01NEMA 17 | 0.18° Step Angle
3618-012-01-01
Frame Size1.670 in
Holding Torque52.99 oz-in
ConnectionBipolar
Length1.020 in
Rated Current1 AMP
Weight0.41 lbs
211-18-02NEMA 11 | 1.8° Step Angle
211-18-02
online
Frame Size1.110 in
Holding Torque14.16 oz-in
ConnectionBipolar
Length1.770 in
Rated Current1.3 AMP
Weight0.311 lbs
211-20-02NEMA 11 | 1.8° Step Angle
211-20-02
online
Frame Size1.110 in
Holding Torque16.99 oz-in
ConnectionBipolar
Length2.010 in
Rated Current1.3 AMP
Weight0.441 lbs
3518L-01NEMA 14 | 1.8° Step Angle
3518L-01
online
Frame Size1.390 in
Holding Torque55.23 oz-in
ConnectionBipolar
Length2.190 in
Rated Current0.4 AMP
Weight0.529 lbs
4118C-01NEMA 17 | 1.8° Step Angle
4118C-01
online
Frame Size1.670 in
Holding Torque124.62 oz-in
ConnectionBipolar
Length2.340 in
Rated Current2 AMP
Weight0.902 lbs
4418F-01NEMA 17 | 1.8° Step Angle
4418F-01
online
Frame Size1.670 in
Holding Torque26.91 oz-in
ConnectionBipolar
Length1.020 in
Rated Current0.67 AMP
Weight0.351 lbs
