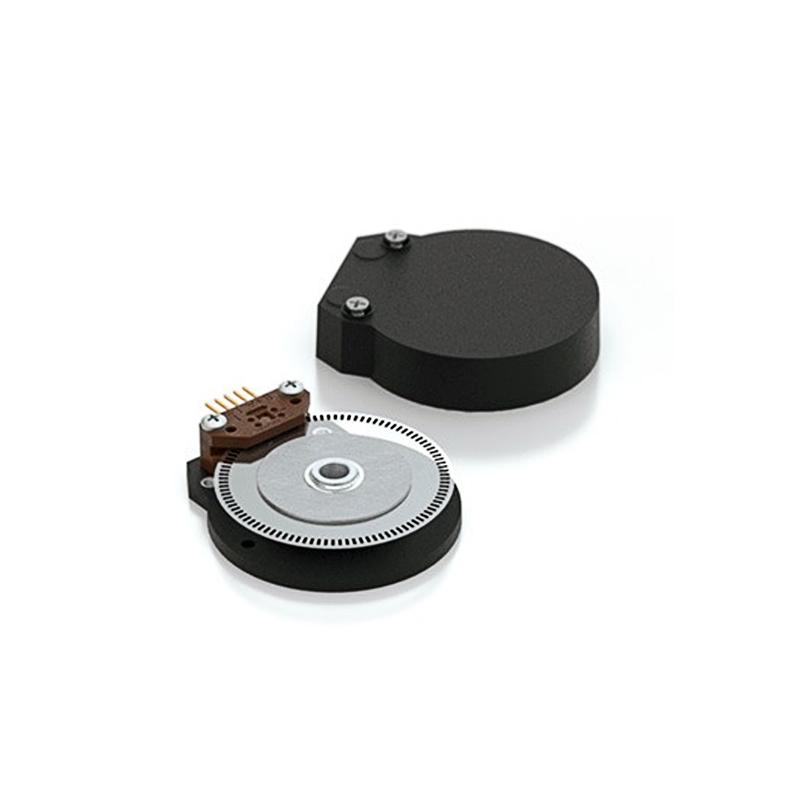

E3 SERIES
E3
Optical Encoder

Featured product media

Quick Facts

E3 Encoders

Features and Benefits:
  • Best for NEMA 23 and 34
  • 64 to 10,000 cycles per revolution (CPR)
  • Tracks from 0 to 720,000 cycles/sec (Dependent on CPR)
  • 256 to 40,000 pulses per revolution (PPR)
  • 2 channel quadrature TTL squarewave outputs
  • Optional index (3rd channel)
  • -40 to 100 ºC operating temperature (Operating temperature dependent on CPR)
  • 2 year warranty

Pin Outs

PINDESCRIPTION
1Ground
2Index
3A Channel
4+5 VDC Power
5B Channel
CYCLES PER SECOND
0 to 720,000
CPR dependent
CYCLES PER REVOLUTION (CPR)
64 to 10,000
PULSES PER REVOLUTION (PPR)
256 to 40,000



CYCLES PER REVOLUTION(CPR)

643600
1004000
2004096
4005000
5007200
5128000
10008192
102410000
1800
2000
2048
2500

Dimension

Content image

Accessories

ACCESSORIES


Content image

5-PIN CONNECTOR
Lin part # 090-00223

RECOMMENDED

Best for size 23, and size 34

Content image
