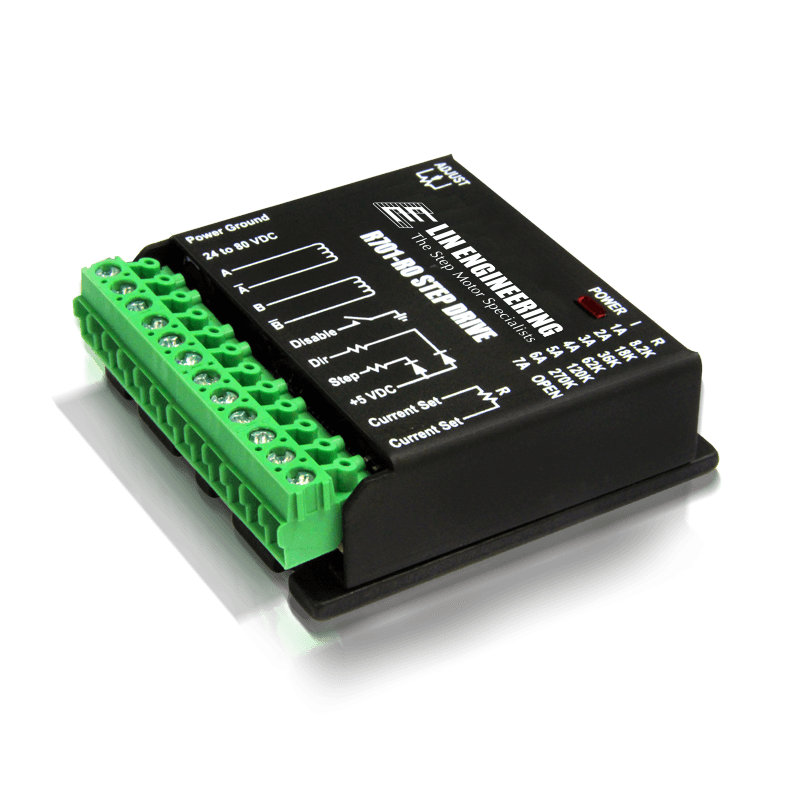

STEPPER DRIVER

Features and Benefits:
  • 10 microstepping driver
  • Optically isolated Step, Direction, and Disable/Enable inputs
  • Automatic Current Reduction
  • Adjustable trimpot for noise and vibration reduction
  • Operates from 24 to 80 VDC
  • Selectable Driver Peak Current Ranges: 1 to 7 Amps OR 0.3 to 2 Amps
  • Low Power Dissipation from 1 to 12 Watts (1 to 7 Amps)
  • Excellent sinusoidal current waveform for smooth operation
  • Low current ripple for low noise
  • Low Cost
  • High Efficiency

Unit Price:

$156.00

Inventory:

10 Available in 2 Business Days

Ships:

2 Business Days

Part Number:

R701

Looking For Higher Volume?

Options

ADJUSTABLE TRIMPOT

Content image

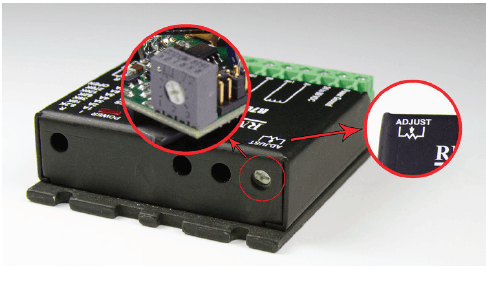

The potentiometer shown on the board can be rotated using a screwdriver. It’s recommended to rotate the motor at 0.25 RPS. Then to adjust the potentiometer until there is the least amount of vibration and noise coming out of the motor. This will be the position that the driver will perform smoothly with a given motor and power supply voltage.
The adjustment will alter the current waveform coming out of the driver and into the motor coils.

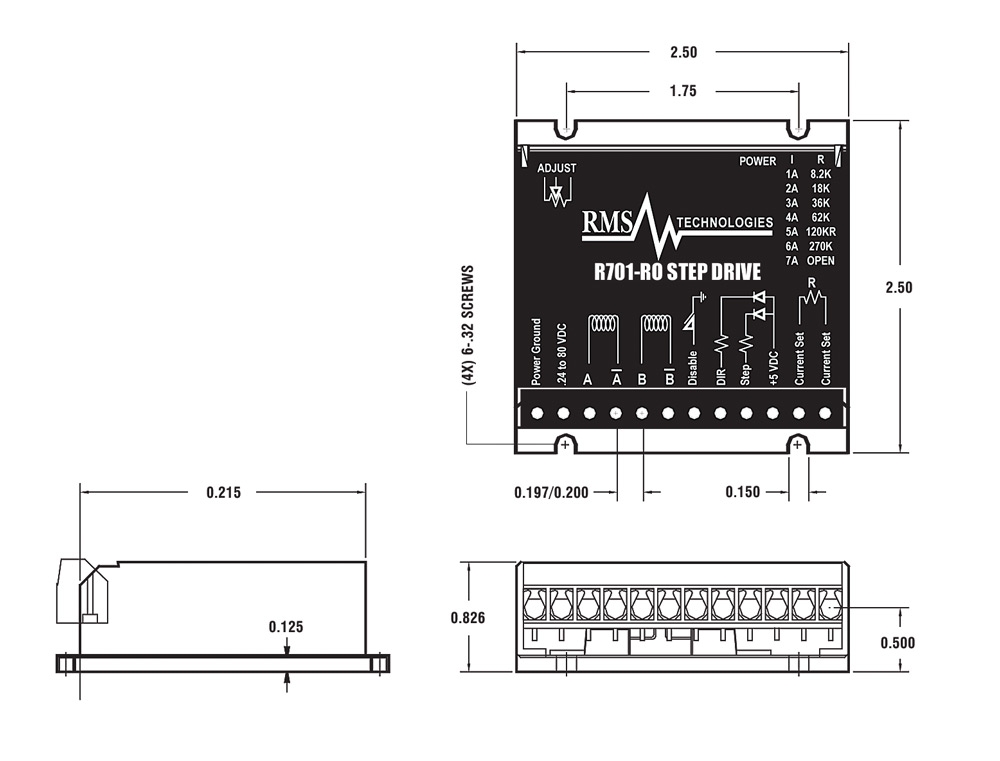

Dimension

Weight without cables: 3.8 oz

Content image

Pin Outs

PIN NUMBERFUNCTION
1Power Ground
2+24 to 80 VDC
3A Phase
4A Bar Phase
5B Phase
6B Bar Phase
7Disable
8Direction
9Step
10+5 VDC
11Current Set
12Current Set

To set the Current with the Correct Resistor, use the following Table:

CURRENT (Amps)RESISTANCE (Ohms)
18.2K
218K
336K
462K
5120K
6270K
7OPEN

Electrical Specifications

  • INPUT VOLTAGE: +24 to 80
  • DRIVE CURRENT(PER PHASE): 0.3 to 2 Amps or 1 to 7 Amps
  • ISOLATED INPUTS: Step Clock, Direction, Enable & Disable
  • STEP FREQUENCY (MAX): 200kHz
  • STEPS PER REVOLUTION (1.8º MOTOR): 2000
