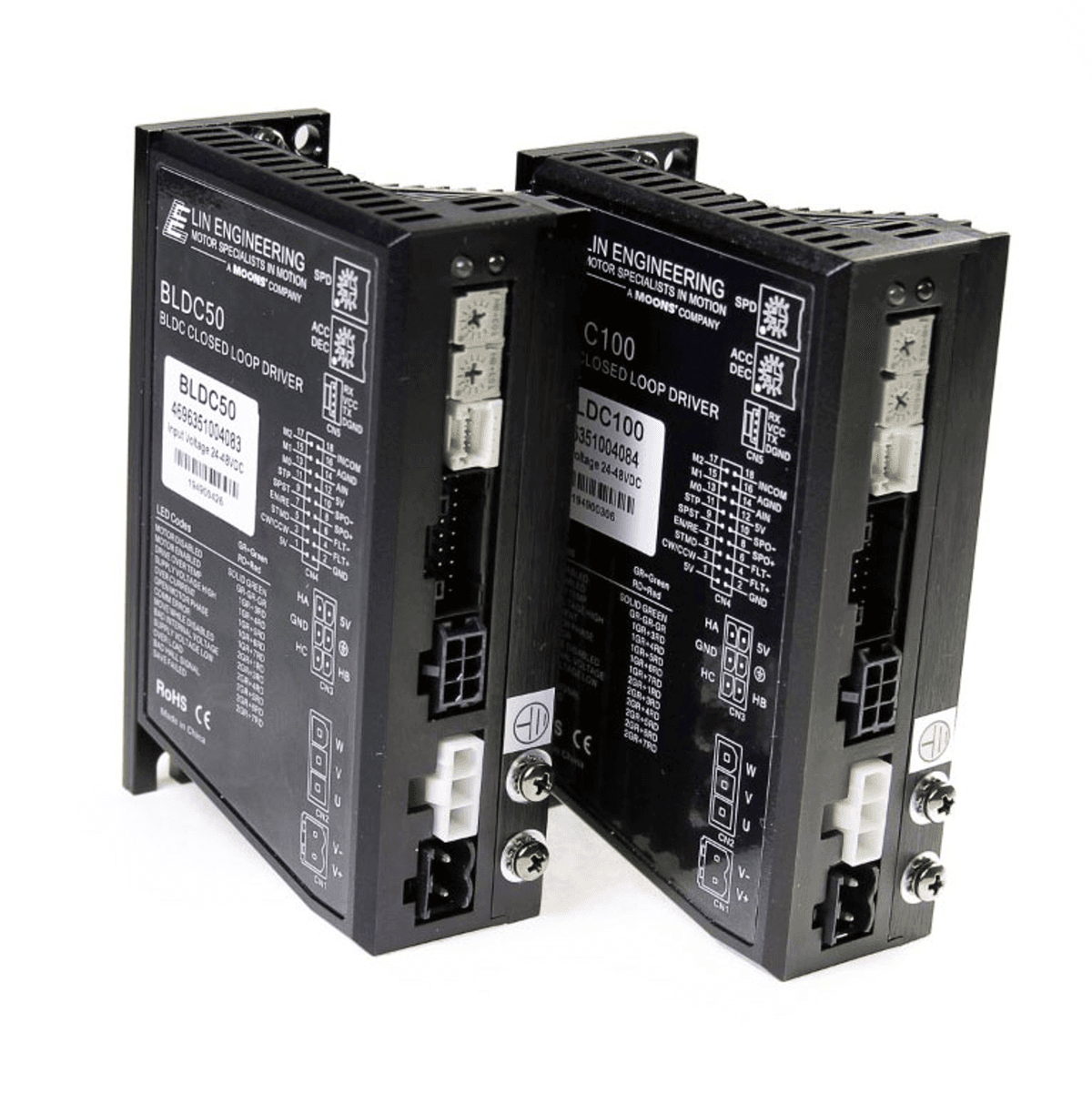

BLDC50

BLDC50

BLDC DRIVER + CONTROLLER

The BLDC50 series DC input drives are based on advanced digital current and velocity control technology and provide high torque, stable velocity and low noise.

• The structure is compact and the parameter is configurable.
• 12-48VDC supply voltage.
• Work in velocity mode.
• Accept analog control signal, digital control signal, RS-232/485 communication command or MMI control.
• High response of the PID velocity loop and D/Q current loop control.
• Brushless sinusoidal current control. With motor phase compensation.
• The drive can supply 5A (rms) maximum continuously current for each motor phase. And the twice over load 10A is allowed for 5 seconds.
• With eight single-ended optically isolated inputs (5-24V) which is configurable for sinking or sourcing by two switches, one analog input(0-5V, can be configured by software) and two darlington optically isolated outputs (maximum output current is 80mA).
• Outputs can be configured by 8 functions depending on different requirements.

• Part Number: BLDC50
• Supply Voltage: 24 - 48 VDC
• Output Current: 0.1 - 5.0 A/Phase
• Communication Port: RS-232
• Status LEDs: 1 Red, 1 Green
• Digital Inputs: 8
• Digital Outputs: 2
• Analog Inputs: 1
• Under Voltage Protection: 8.5 V
• Input Signals Voltage: 5 - 28 V
• Speed Range: 150 - 4500 RPM
• Rated Velocity Error: +/- 0.5 %
• Weight: 6 oz

Operating Conditions

• Ambient Temperature: 0 to 40 °C
• Storage Temperature: -10 to 70 °C
• Humidity: 90% (Non-Condensing)

1 meter and 3 meter extension cables are available

• 1 meter extension cable
• 3 meter extension cable
