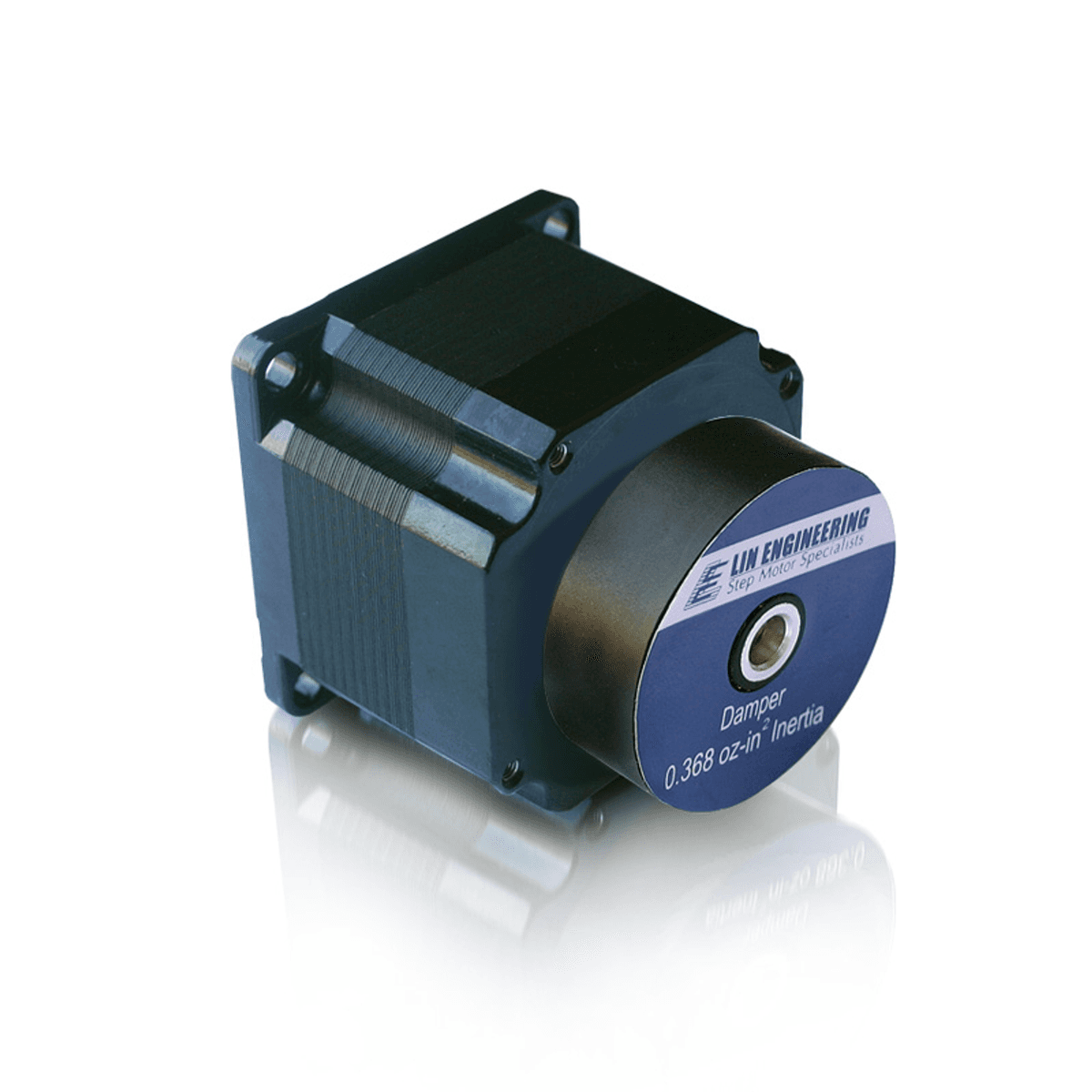

NEMA23-DAMPER

NEMA23-DAMPER

Damper

Specifications

As motors step, inertia makes the rotor oscillate about its new position (the motor’s settling time).  This natural back and forth movement might sometimes contribute to the erratic movement of motors.  Adding a Lin damper to the step motor’s shaft translates into smaller oscillations and thus, smoother motion.  This reduced step response time can ultimately result in much improved motor performance.

Below is a comparison of one motor’s settling time with and without the use of a damper.

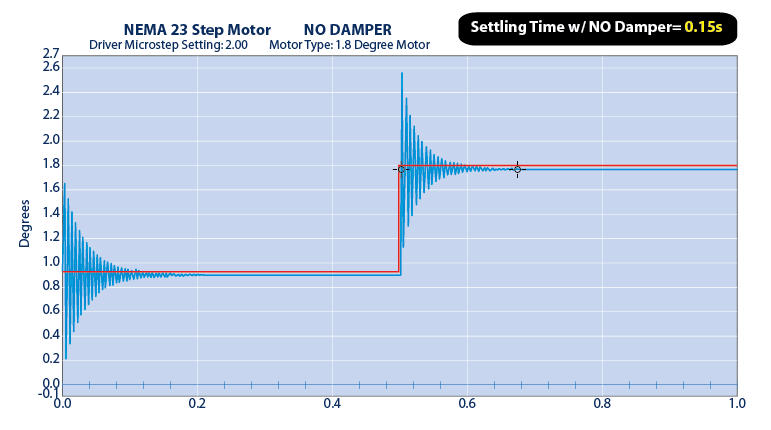

Without Damper = 0.15 Seconds

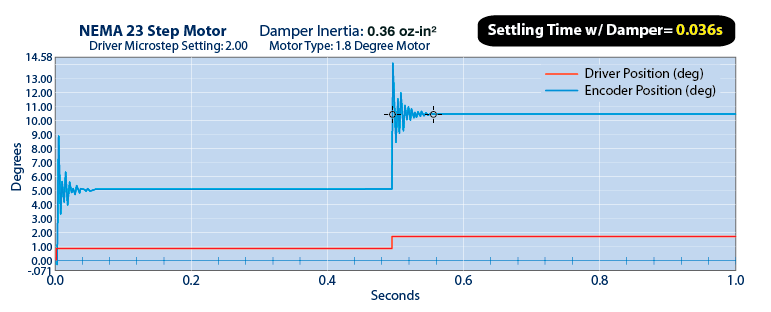

 With Damper = 0.036 Seconds

 That’s up to 4 times less resonance when you use a damper from Lin Engineering

Content image
Content image
WET/DRY OPERATIONINERTIA
(oz/in^2 | gm-cm^2)
MOUNTINGSHAFT SIZE
Dry0.36 |65.84Set Screw (M4)

.250" (6.35mm)

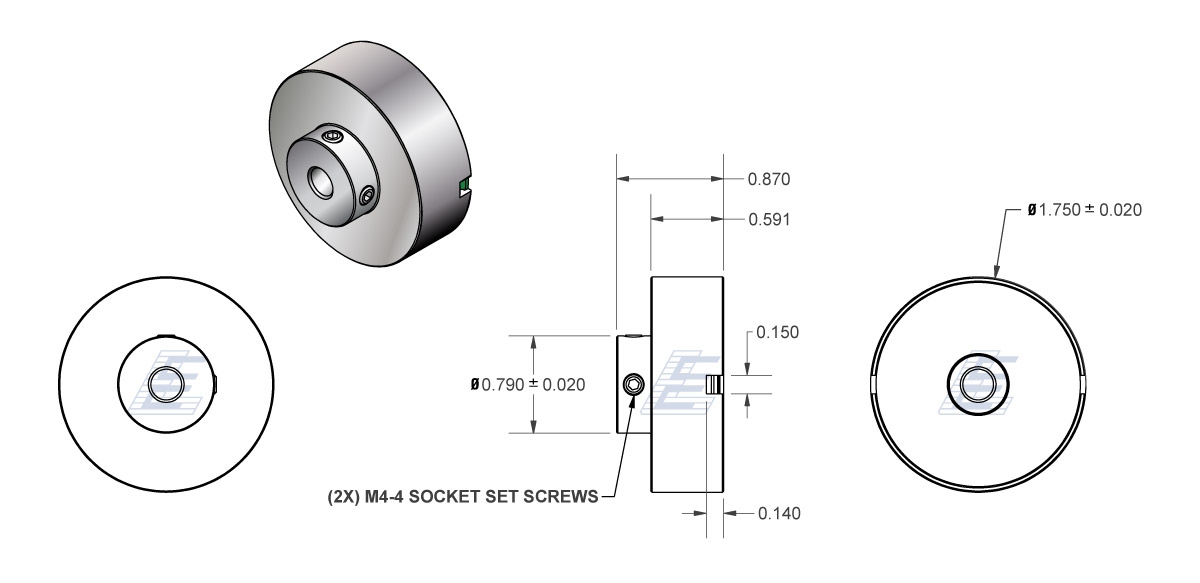

Dimension

Content image
