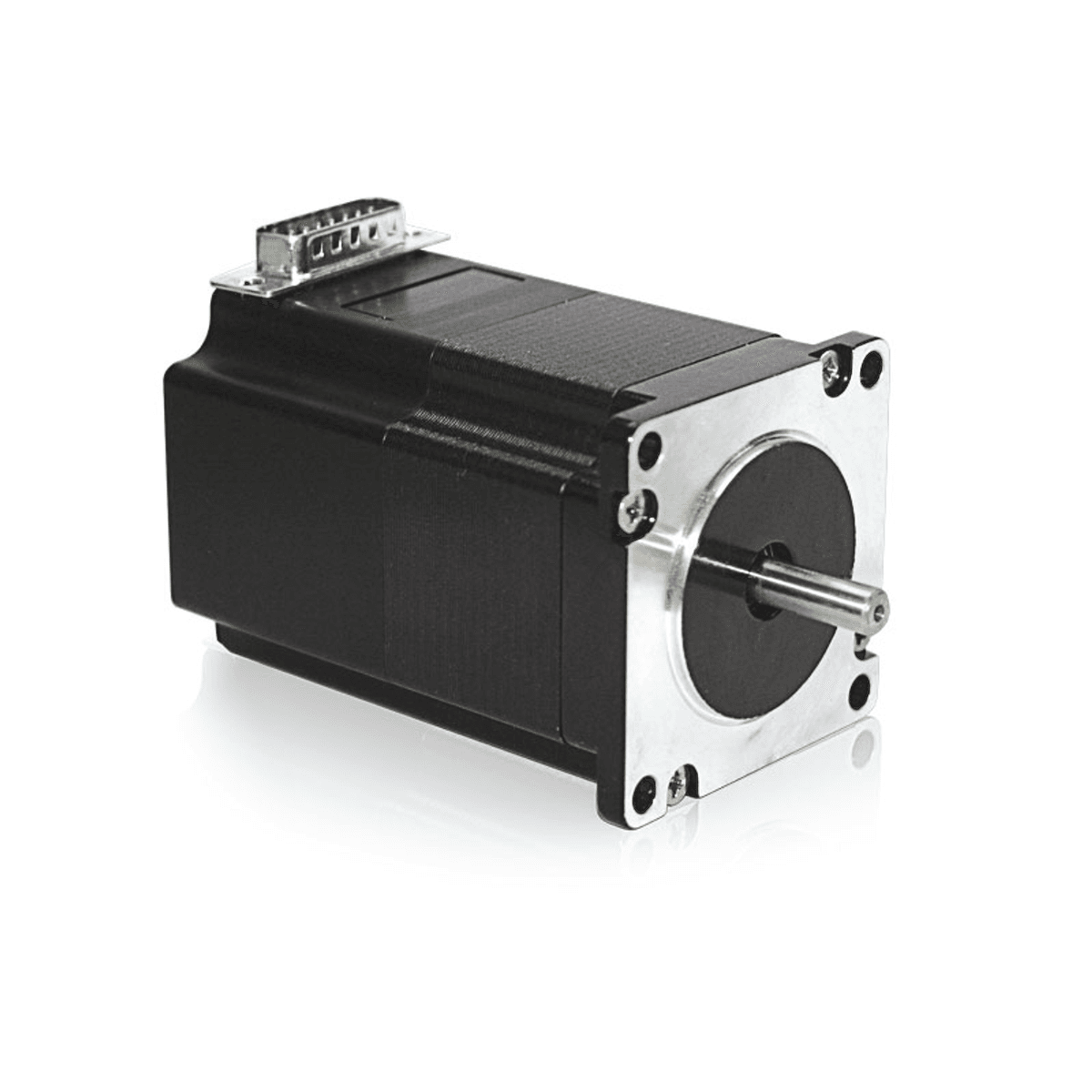

Silverpak 23C Series
CO-5718X-15S
MOTOR + DRIVER + CONTROLLER

Specifications:
  • NEMA 23 (2.240 in) Frame Size
  • 1.8° Step Angle
  • 2.940 in Length
  • 38 oz-in Holding Torque

Motor Specifications

Part NumberCO-5718X-15S
Step Angle1.8°
Frame Size2.240 in
NEMA SizeNEMA 23
Body Length2.940 in
Holding Torque38 oz-in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Notice

Due to unprecedented product demand along with the ongoing supply chain related issues with semiconductors, we are experiencing extended lead times for this product.



Please contact your account manager or sales@linengineering.com for additional information.

Options

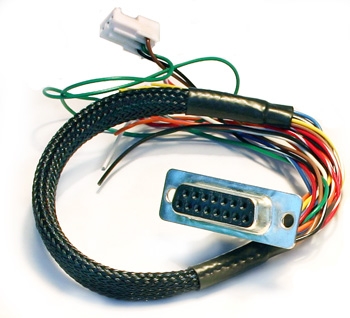

Each Silverpak comes with the following cable (Lin part number 4634140205208):

DB-15 cable with white 3-pin connector

Content image

SilverPak 23C has a NEMA Size23 Step Motor, and comes in three different sizes:

MODEL NUMBERHOLDING TORQUE
oz-in (N-m)
ROTOR INERTIA
oz-in2 (kg-cm2)
WEIGHT [Motor+Driver]
lbs. (gm)
CO-5718X-01P88.2 (0.62)0.7 (0.13)1.3 (0.59)
CO-5718L-01P273.6 (1.93)2.6 (0.47)2.2 (1.00)
CO-5718L-01S                       200 (1.41)2.6 (0.47)2.2 (1.00)
CO-5718M-02P173.3 (1.22)1.5 (0.27)1.5 (0.68)
CO-5718M-02S                     87 (0.61)1.5 (0.27)1.5 (0.68)

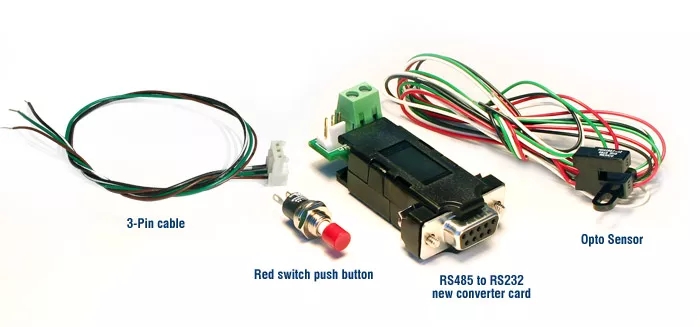

RS485 Designer’s Kit (Lin part number: RS232KIT) Includes:

  • RS485 to RS232 Converter Card
  • An Optical Sensor
  • Red Switch Push Button
  • 3-Pin Cable
Content image

PIN OUTS

PIN NUMBERCOLOR (#26 AWG Lead)FUNCTIONINPUT
1GreenPower Ground
2Black1 A On/Off OutputDriver 2
3White/GreenDirection Input
4Yellow+5VDC Input for Opto Isolated STEP and DIR
5OrangeInput 22/Jog2 Input
6Yellow/WhiteInternal Power for Opto Sensor
7Orange/WhiteInput 3(Opto Input)3/Opto1 Input
8Black/WhiteRS485 A
9Red+12V to +40V POWER
10Blue1A ON/OFF OutputDriver 1
11Blue/WhiteStep Input
(see Appendix D)

12Green/WhiteSignal Ground
13WhiteInput 11/Jog1 Input
14Red/WhiteInput 44/Opto2 Input
15BrownRS485 B

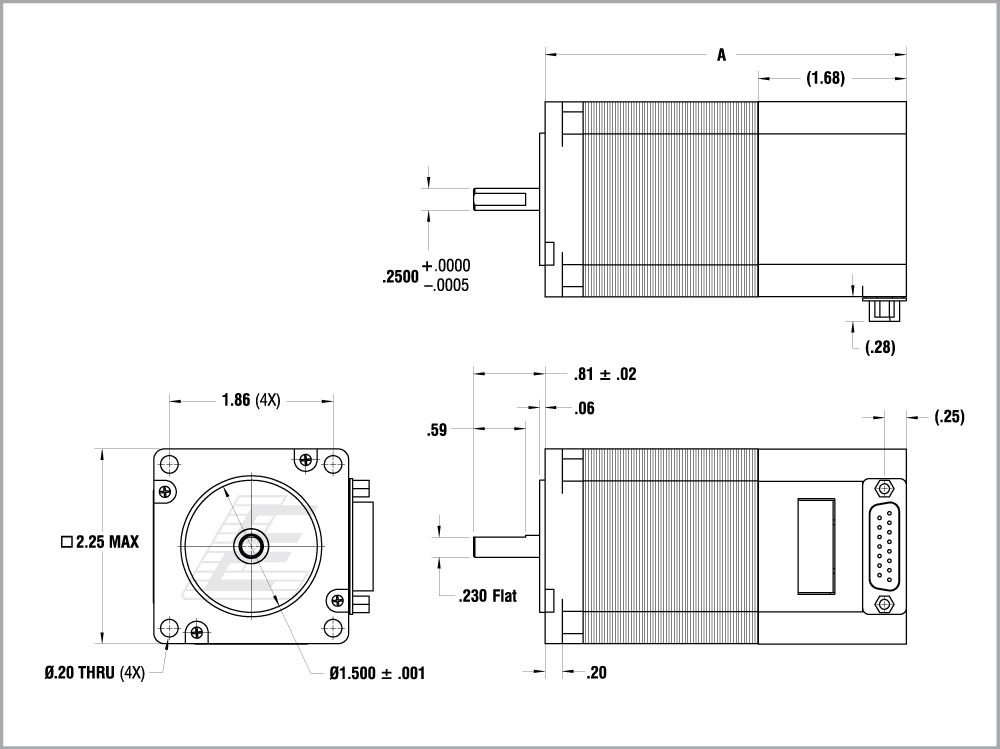

Dimension

Motor Front Shaft Extension Length
Standard length is 0.81”.

Motor Shaft Diameter
Standard shaft diameter is 0.25”.

Overall Body Length
Motor body length is available in various lengths (Dimension A):
CO-5718X: 2.94” (7.46 cm)
CO-5718M: 3.45” (8.76 cm)
CO-5718L: 4.33” (11 cm)

Content image

Electrical Specifications

  • INPUT VOLTAGE: +12 to 40 VDC
  • DRIVE CURRENT(PER PHASE): 0.3 to 3.0 Amps Peak
  • ISOLATED INPUTS: I/O, Switch Closure to Ground, Opto Phototransistor
  • STEP FREQUENCY (MAX): 2.5 GHz
  • STEPS PER REVOLUTION (1.8º MOTOR): 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200
  • MICROSTEP RESOLUTIONS (1.8º MOTOR): Full step, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256

DEFAULT SETTING

FUNCTION (Command)DESCRIPTION
Running Current (m)30% of 2.0 Amps
Holding Current (h)10% of max current of 2 Amps
Step Resolution (j)256x
Top Velocity (V)305175 pps (microsteps/sec)
Acceleration (L)L=1000, 6103500 usteps/sec^2
Microstep smoothness (o)1500
Outputs (J)both are turned off, J0
Baud Rate9600 bps
