206 Series206-12-01Hybrid Stepper Motor
Quick Facts

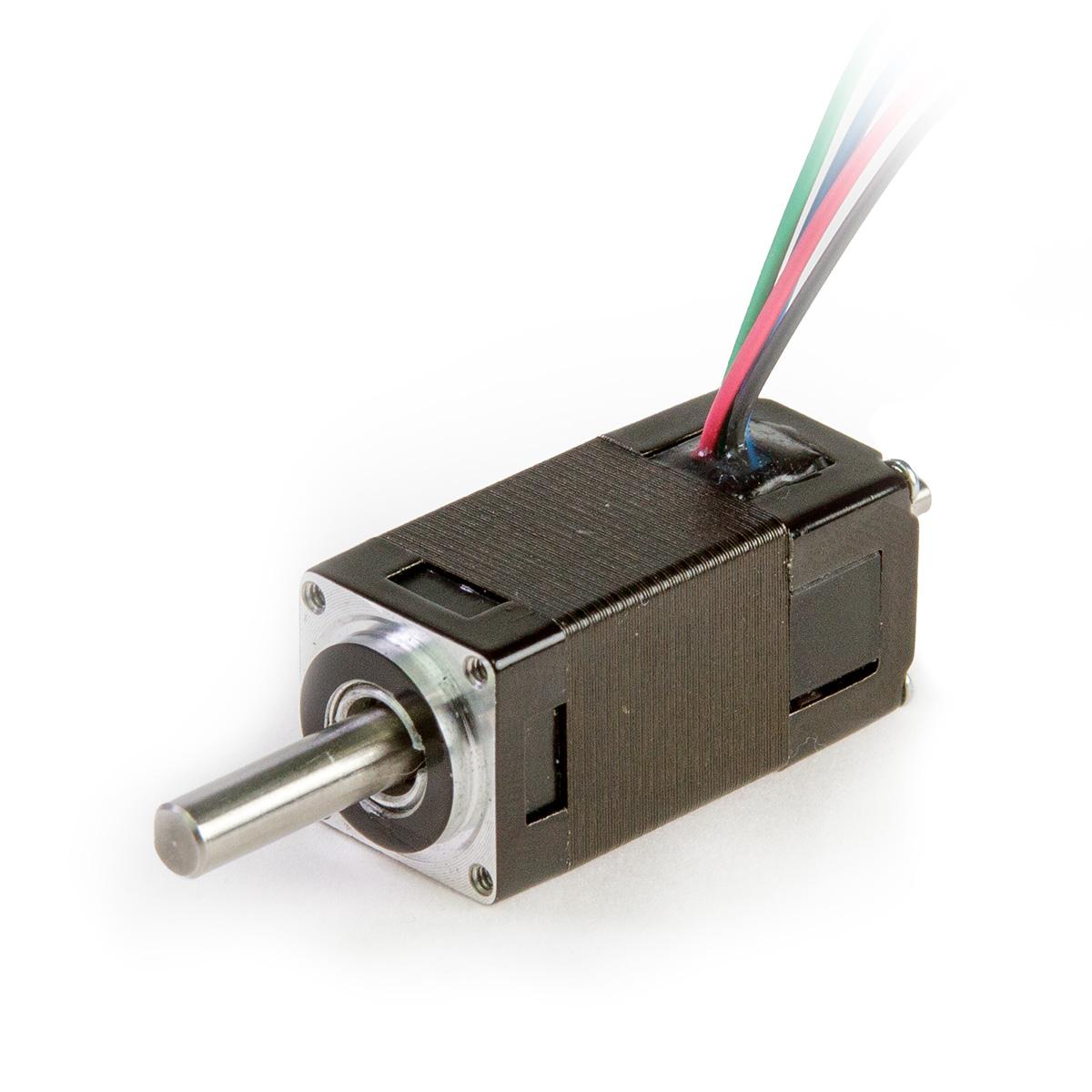

206-12-01 Hybrid Stepper Motors
206-12-01 Hybrid Stepper Motors
Specifications:
- NEMA 06 (0.550 in) Frame Size
- 1.8° Step Angle
- 1.180 in Length
- 0.91 oz-in Holding Torque
Features and Benefits:
- 14mm frame size
- Fast acceleration/Low inertia
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Torque Curves
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | 206-12-01 |
| Step Angle | 1.8° |
| Frame Size | 0.550 in |
| NEMA Size | NEMA 06 |
| Body Length | 1.180 in |
| Current (AMP) | 0.3 AMP |
| Holding Torque | 0.91 oz-in |
| Resistance | 22 ohm |
| Rotor Inertia | 0.032 oz-in² |
| Number of leads | 4 |
| Connection | Bipolar |
| Weight | 0.066 lbs |
Operating Specifications
| Max Radial Load at Dimension "K" from mounting face | 11.023 lbs |
| Dimension "K" | 0.390 in |
| Max Axial Load | 2.205 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less |
| Magnet Wire Insulation | Class B 130 |
| Insulation Resistance | 100M at 500 VCD |
| Dielectric Strength | 500VAC for 1min |
