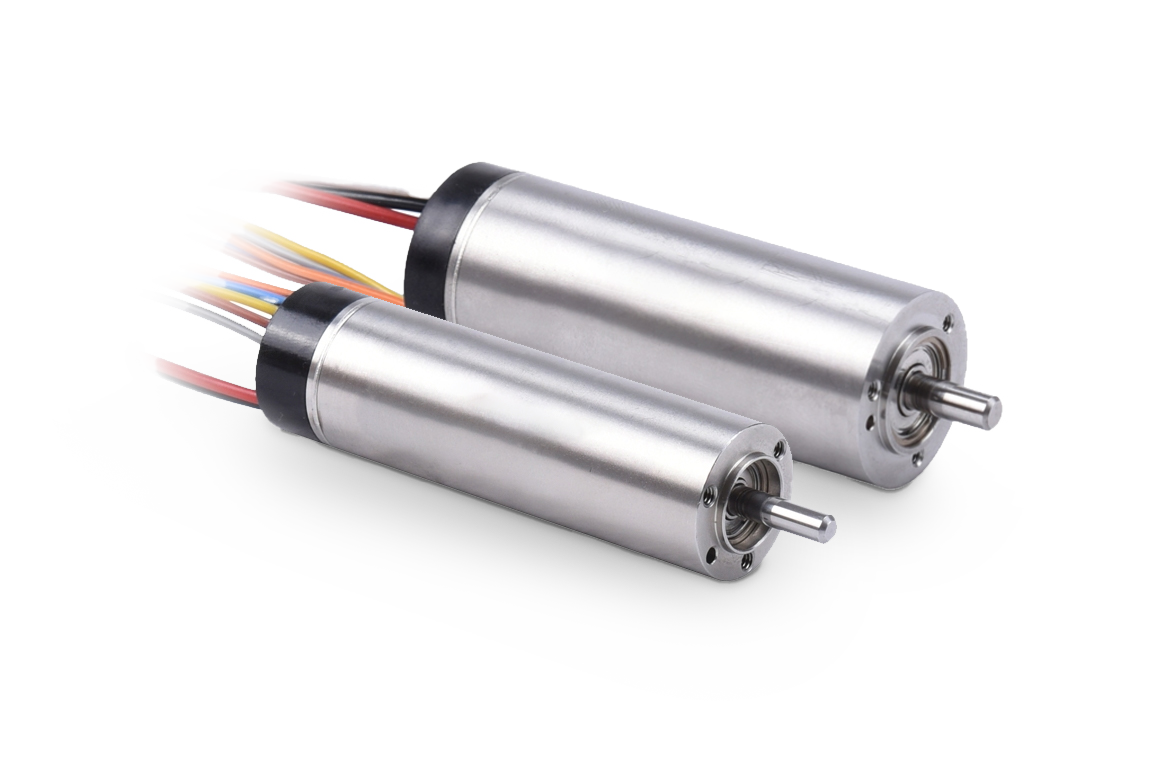

Slotless BLDC motors (Brushless DC)

Motor OD	Length	Voltage	Rated Torque	Rated Speed	Gearbox	Encoder	Type	Autoclavable
8 mm	36.05 mm	12 V	16.5 mNm	1618 rpm	17:1	1024-line incremental magnetic encoder	Universal	no
8 mm	38.9 mm	12 V	69.23 mNm	181 rpm	72:1	1024-line incremental magnetic encoder	Universal	no
10 mm	25 mm	12 V	0.95 mNm	18300 rpm	No Gearbox	No Encoder	High Speed	no
10 mm	32 mm	6 V	1.39 mNm	42167 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
10 mm	32 mm	9 V	1.62 mNm	37780 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
10 mm	32 mm	12 V	1.6 mNm	39765 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
10 mm	32 mm	18 V	1.47 mNm	42333 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
10 mm	32 mm	24 V	1.5 mNm	45200 rpm	No Gearbox	No Encoder	High Speed	no
10 mm	32 mm	24 V	1.5 mNm	45200 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
10 mm	32.9 mm	12 V	3.24 mNm	4828 rpm	4:1	1024-line incremental magnetic encoder	High Speed	no
10 mm	36 mm	12 V	10 mNm	1395 rpm	16:1	1024-line incremental magnetic encoder	High Speed	no
10 mm	39 mm	12 V	42.9 mNm	295.5 rpm	62:1	No Encoder	High Speed	no
10 mm	40 mm	12 V	5.12 mNm	5092 rpm	4:1	No Encoder	High Speed	no
10 mm	43 mm	12 V	19.85 mNm	1181 rpm	16:1	1024-line incremental magnetic encoder	High Speed	no
10 mm	44.55 mm	12 V	160.5 mNm	71 rpm	256:1	No Encoder	High Speed	no
10 mm	44.55 mm	12 V	160.5 mNm	71 rpm	256:1	1024-line incremental magnetic encoder	High Speed	no
10 mm	45 mm	12 V	16 mNm	1346 rpm	16:1	1024-line incremental magnetic encoder	Performance	no
10 mm	46 mm	12 V	67.8 mNm	305 rpm	62:1	1024-line incremental magnetic encoder	High Speed	no
10 mm	48 mm	12 V	55.3 mNm	343 rpm	64:1	1024-line incremental magnetic encoder	Performance	no
10 mm	48 mm	12 V	1500 mNm	27.5 rpm	1024:1	No Encoder	High Speed	no
10 mm	51 mm	12 V	191.1 mNm	85.93 rpm	256:1	1024-line incremental magnetic encoder	Performance	no
10 mm	52 mm	12 V	147 mNm	91.45 rpm	256:1	1024-line incremental magnetic encoder	High Speed	no
11 mm	17 mm	24 V	0.17 mNm	19300 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
11 mm	28.2 mm	24 V	20.4 mNm	710 rpm	27:1	1024-line incremental magnetic encoder	High Speed	no
13 mm	25.2 mm	6 V	2.33 mNm	19800 rpm	No Gearbox	No Encoder	Universal	no
13 mm	25.2 mm	9 V	2.45 mNm	21500 rpm	No Gearbox	No Encoder	Universal	no
13 mm	25.2 mm	12 V	2.31 mNm	19300 rpm	No Gearbox	No Encoder	Universal	no
13 mm	25.2 mm	18 V	2.41 mNm	19300 rpm	No Gearbox	No Encoder	Universal	no
13 mm	25.2 mm	24 V	2.33 mNm	19300 rpm	No Gearbox	No Encoder	Universal	no
13 mm	28.5 mm	12 V	1.45 mNm	17290 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
13 mm	37 mm	12 V	4.5 mNm	3071 rpm	4:1	No Encoder	Universal	no
13 mm	37.4 mm	6 V	5.13 mNm	18000 rpm	No Gearbox	No Encoder	Universal	no
13 mm	37.4 mm	9 V	5.55 mNm	19000 rpm	No Gearbox	No Encoder	Universal	no
13 mm	37.4 mm	12 V	5.18 mNm	19000 rpm	No Gearbox	No Encoder	Universal	no
13 mm	37.4 mm	18 V	5.5 mNm	19000 rpm	No Gearbox	No Encoder	Universal	no
13 mm	37.4 mm	24 V	5.13 mNm	19900 rpm	No Gearbox	No Encoder	Universal	no
13 mm	37.4 mm	36 V	5.4 mNm	27000 rpm	No Gearbox	No Encoder	Universal	no
13 mm	41 mm	9 V	23.2 mNm	639 rpm	19:1	No Encoder	Universal	no
13 mm	41 mm	9 V	31 mNm	456 rpm	26:1	No Encoder	Universal	no
13 mm	41 mm	12 V	20.4 mNm	605 rpm	19:1	No Encoder	Universal	no
13 mm	41 mm	12 V	27.4 mNm	451 rpm	26:1	No Encoder	Universal	no
13 mm	41 mm	18 V	19.8 mNm	714 rpm	19:1	No Encoder	Universal	no
13 mm	44 mm	36 V	3 mNm	23100 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
13 mm	44.5 mm	9 V	5.1 mNm	3300 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
13 mm	44.5 mm	18 V	4.3 mNm	3540 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
13 mm	45 mm	9 V	58.4 mNm	216 rpm	54:1	No Encoder	Universal	no
13 mm	45 mm	9 V	101.3 mNm	124 rpm	94:1	No Encoder	Universal	no
13 mm	45 mm	9 V	140.4 mNm	90 rpm	131:1	No Encoder	Universal	no
13 mm	45 mm	18 V	1.24 mNm	151 rpm	94:1	No Encoder	Universal	no
13 mm	48 mm	24 V	7 mNm	55970 rpm	No Gearbox	No Encoder	High Speed	no
13 mm	48 mm	24 V	8.78 mNm	55970 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
13 mm	48 mm	36 V	8.58 mNm	59800 rpm	No Gearbox	No Encoder	High Speed	no
13 mm	48 mm	48 V	8.67 mNm	60300 rpm	No Gearbox	No Encoder	High Speed	no
13 mm	48 mm	48 V	8.67 mNm	60300 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	no
13 mm	48.5 mm	9 V	22.3 mNm	676 rpm	19:1	1024-line incremental magnetic encoder	Universal	no
13 mm	48.5 mm	9 V	31 mNm	503 rpm	26:1	12-bit single-turn absolute magnetic encoder	Universal	no
13 mm	48.5 mm	9 V	31 mNm	456 rpm	26:1	1024-line incremental magnetic encoder	Universal	no
13 mm	48.5 mm	18 V	19.8 mNm	714 rpm	19:1	1024-line incremental magnetic encoder	Universal	no
13 mm	49.3 mm	9 V	264.4 mNm	45 rpm	276:1	No Encoder	Universal	no
13 mm	49.3 mm	9 V	400 mNm	23 rpm	664:1	No Encoder	Universal	no
13 mm	52.5 mm	9 V	78.2 mNm	161 rpm	73:1	1024-line incremental magnetic encoder	Universal	no
13 mm	52.5 mm	9 V	101.3 mNm	138 rpm	94:1	1024-line incremental magnetic encoder	Universal	no
13 mm	52.5 mm	12 V	124 mNm	91 rpm	131:1	1024-line incremental magnetic encoder	Universal	no
13 mm	52.5 mm	18 V	86.6 mNm	165 rpm	94:1	12-bit single-turn absolute magnetic encoder	Universal	no
13 mm	52.5 mm	18 V	86.6 mNm	157 rpm	94:1	1024-line incremental magnetic encoder	Universal	no
13 mm	52.5 mm	18 V	120.1 mNm	113 rpm	131:1	1024-line incremental magnetic encoder	Universal	no
13 mm	54 mm	6 V	63.9 mNm	512 rpm	19:1	No Encoder	Universal	no
13 mm	54 mm	24 V	46.2 mNm	704.4 rpm	19:1	No Encoder	Universal	no
13 mm	56.4 mm	18 V	226.1 mNm	54 rpm	276:1	1024-line incremental magnetic encoder	Universal	no
13 mm	56.95 mm	12 V	230 mNm	90 rpm	94:1	No Encoder	Universal	no
13 mm	56.95 mm	24 V	230 mNm	146 rpm	94:1	No Encoder	Universal	no
13 mm	57.5 mm	18 V	290.5 mNm	110 rpm	131:1	No Encoder	Universal	no
13 mm	57.5 mm	24 V	274.8 mNm	103.5 rpm	131:1	No Encoder	Universal	no
13 mm	60.5 mm	24 V	46.2 mNm	704.4 rpm	19:1	12-bit single-turn absolute magnetic encoder	Universal	no
13 mm	60.5 mm	24 V	46.2 mNm	704.4 rpm	19:1	1024-line incremental magnetic encoder	Universal	no
13 mm	61 mm	24 V	400 mNm	65.9 rpm	276:1	No Encoder	Universal	no
13 mm	64.5 mm	24 V	230 mNm	146 rpm	94:1	1024-line incremental magnetic encoder	Universal	no
13 mm	64.5 mm	24 V	274.8 mNm	103.5 rpm	131:1	1024-line incremental magnetic encoder	Universal	no
13 mm	68.5 mm	24 V	400 mNm	60.4 rpm	276:1	1024-line incremental magnetic encoder	Universal	no
16 mm	24 mm	4 V	2.7 mNm	9280 rpm	No Gearbox	No Encoder	Universal	no
16 mm	24 mm	6 V	2.8 mNm	8236 rpm	No Gearbox	No Encoder	Universal	no
16 mm	24 mm	9 V	2.7 mNm	8312 rpm	No Gearbox	No Encoder	Universal	no
16 mm	24 mm	12 V	2.5 mNm	8860 rpm	No Gearbox	No Encoder	Universal	no
16 mm	24 mm	18 V	2.6 mNm	8711 rpm	No Gearbox	No Encoder	Universal	no
16 mm	24 mm	24 V	2.5 mNm	9109 rpm	No Gearbox	No Encoder	Universal	no
16 mm	33 mm	12 V	2.5 mNm	8860 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
16 mm	33 mm	12 V	2.5 mNm	8860 rpm	No Gearbox	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	33 mm	12 V	2.5 mNm	8860 rpm	No Gearbox	15-bit incremental magnetic encoder	Universal	no
16 mm	33 mm	24 V	2.5 mNm	9109 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
16 mm	33 mm	24 V	2.5 mNm	9109 rpm	No Gearbox	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	33.5 mm	12 V	2.5 mNm	9965 rpm	No Gearbox	No Encoder	Universal	no
16 mm	35.6 mm	12 V	7.8 mNm	11000 rpm	No Gearbox	No Encoder	Universal	no
16 mm	35.6 mm	18 V	7 mNm	13770 rpm	No Gearbox	No Encoder	Universal	no
16 mm	35.6 mm	24 V	7.5 mNm	12350 rpm	No Gearbox	No Encoder	Universal	no
16 mm	35.6 mm	36 V	7 mNm	15000 rpm	No Gearbox	No Encoder	Universal	no
16 mm	40 mm	12 V	8.9 mNm	2308 rpm	4:1	No Encoder	Universal	no
16 mm	44.5 mm	12 V	7.8 mNm	11000 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
16 mm	44.5 mm	24 V	7.5 mNm	12350 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
16 mm	44.5 mm	24 V	7.5 mNm	12350 rpm	No Gearbox	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	44.5 mm	24 V	7.5 mNm	12350 rpm	No Gearbox	15-bit incremental magnetic encoder	Universal	no
16 mm	45.2 mm	12 V	45 mNm	423 rpm	21:1	No Encoder	Universal	no
16 mm	45.2 mm	24 V	45 mNm	435 rpm	21:1	No Encoder	Universal	no
16 mm	48.5 mm	24 V	9.18 mNm	2306 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
16 mm	48.9 mm	12 V	9.18 mNm	2243 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
16 mm	50 mm	12 V	165.4 mNm	107 rpm	83:1	No Encoder	Universal	no
16 mm	50 mm	12 V	205 mNm	86 rpm	103:1	No Encoder	Universal	no
16 mm	50 mm	12 V	276 mNm	64 rpm	138:1	No Encoder	Universal	no
16 mm	50 mm	12 V	344 mNm	51 rpm	172:1	No Encoder	Universal	no
16 mm	50 mm	24 V	165.4 mNm	110 rpm	83:1	No Encoder	Universal	no
16 mm	50 mm	24 V	206 mNm	89 rpm	103:1	No Encoder	Universal	no
16 mm	50 mm	24 V	277 mNm	66 rpm	138:1	No Encoder	Universal	no
16 mm	50 mm	24 V	344 mNm	53 rpm	172:1	No Encoder	Universal	no
16 mm	51.6 mm	12 V	20 mNm	3185 rpm	4:1	No Encoder	Universal	no
16 mm	51.6 mm	12 V	47.9 mNm	1667 rpm	7:1	No Encoder	Universal	no
16 mm	51.6 mm	24 V	20 mNm	3340 rpm	4:1	No Encoder	Universal	no
16 mm	51.6 mm	24 V	46 mNm	1871 rpm	7:1	No Encoder	Universal	no
16 mm	52 mm	12 V	11 mNm	12500 rpm	No Gearbox	No Encoder	Universal	no
16 mm	52 mm	24 V	10.5 mNm	13400 rpm	No Gearbox	No Encoder	Universal	no
16 mm	52 mm	36 V	11.5 mNm	13776 rpm	No Gearbox	No Encoder	Universal	no
16 mm	52 mm	48 V	11 mNm	14545 rpm	No Gearbox	No Encoder	Universal	no
16 mm	54.1 mm	12 V	45.04 mNm	423 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
16 mm	54.1 mm	24 V	45 mNm	435 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
16 mm	55 mm	12 V	650 mNm	26 rpm	406:1	No Encoder	Universal	no
16 mm	55 mm	24 V	650 mNm	25 rpm	406:1	No Encoder	Universal	no
16 mm	56 mm	24 V	15 mNm	41000 rpm	No Gearbox	No Encoder	High Speed	standard
16 mm	56 mm	36 V	10.5 mNm	44000 rpm	No Gearbox	No Encoder	High Speed	standard
16 mm	56 mm	48 V	7.5 mNm	43000 rpm	No Gearbox	No Encoder	High Speed	standard
16 mm	56.8 mm	12 V	140 mNm	525 rpm	21:1	No Encoder	Universal	no
16 mm	56.8 mm	12 V	292.2 mNm	253 rpm	44:1	No Encoder	Universal	no
16 mm	56.8 mm	24 V	135.12 mNm	590 rpm	21:1	No Encoder	Universal	no
16 mm	56.8 mm	24 V	280.96 mNm	283.5 rpm	44:1	No Encoder	Universal	no
16 mm	57 mm	24 V	7.5 mNm	12350 rpm	No Gearbox	13-bit multi-turn absolute magnetic encoder	Universal	no
16 mm	58.8 mm	12 V	165.4 mNm	107 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	12 V	205 mNm	86 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	12 V	276 mNm	64 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	12 V	343.9 mNm	51 rpm	172:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	24 V	165.4 mNm	110 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	24 V	206 mNm	89 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	24 V	276 mNm	66 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
16 mm	58.8 mm	24 V	344 mNm	53 rpm	172:1	1024-line incremental magnetic encoder	Universal	no
16 mm	60.1 mm	12 V	11 mNm	12500 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
16 mm	60.1 mm	24 V	10.5 mNm	13400 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
16 mm	60.1 mm	24 V	10.5 mNm	13400 rpm	No Gearbox	15-bit incremental magnetic encoder	Universal	no
16 mm	60.5 mm	12 V	20 mNm	3185 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
16 mm	60.5 mm	12 V	47.8 mNm	1666.6 rpm	7:1	1024-line incremental magnetic encoder	Universal	no
16 mm	60.5 mm	24 V	20 mNm	3340 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
16 mm	60.5 mm	24 V	46 mNm	1871 rpm	7:1	1024-line incremental magnetic encoder	Universal	no
16 mm	61.4 mm	12 V	516 mNm	133 rpm	83:1	No Encoder	Universal	no
16 mm	61.4 mm	12 V	520 mNm	76 rpm	172:1	No Encoder	Universal	no
16 mm	61.4 mm	24 V	496.2 mNm	149.5 rpm	83:1	No Encoder	Universal	no
16 mm	61.5 mm	12 V	520 mNm	114 rpm	103:1	No Encoder	Universal	no
16 mm	61.5 mm	12 V	520 mNm	92 rpm	138:1	No Encoder	Universal	no
16 mm	63.7 mm	24 V	650 mNm	21.6 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
16 mm	63.7 mm	24 V	650 mNm	19.1 rpm	546:1	1024-line incremental magnetic encoder	Universal	no
16 mm	64.9 mm	12 V	650 mNm	22.3 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
16 mm	65.5 mm	12 V	140 mNm	525 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
16 mm	65.8 mm	12 V	292.2 mNm	282 rpm	44:1	1024-line incremental magnetic encoder	Universal	no
16 mm	65.8 mm	24 V	100.5 mNm	792.6 rpm	16:1	1024-line incremental magnetic encoder	Universal	no
16 mm	65.8 mm	24 V	135.12 mNm	590 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
16 mm	65.8 mm	24 V	135.12 mNm	590 rpm	21:1	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	65.8 mm	24 V	280.96 mNm	283.5 rpm	44:1	1024-line incremental magnetic encoder	Universal	no
16 mm	65.8 mm	24 V	280.96 mNm	283.5 rpm	44:1	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	66.5 mm	24 V	800 mNm	78 rpm	172:1	No Encoder	Universal	no
16 mm	66.7 mm	12 V	650 mNm	34.5 rpm	406:1	No Encoder	Universal	no
16 mm	67.8 mm	24 V	39 mNm	3354 rpm	4:1	No Encoder	Universal	no
16 mm	67.8 mm	24 V	64 mNm	2006 rpm	7:1	No Encoder	Universal	no
16 mm	68 mm	12 V	39 mNm	3167 rpm	4:1	No Encoder	Universal	no
16 mm	68 mm	12 V	65.6 mNm	1894 rpm	7:1	No Encoder	Universal	no
16 mm	70.4 mm	12 V	516 mNm	133 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	12 V	520 mNm	114 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	12 V	520 mNm	92 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	12 V	520 mNm	76 rpm	172:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	12 V	520 mNm	76 rpm	172:1	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	70.4 mm	24 V	496.2 mNm	149.5 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	24 V	496.2 mNm	149.5 rpm	83:1	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	70.4 mm	24 V	520 mNm	124 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	24 V	520 mNm	99 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
16 mm	70.4 mm	24 V	520 mNm	80 rpm	172:1	1024-line incremental magnetic encoder	Universal	no
16 mm	73.2 mm	12 V	198 mNm	596 rpm	21:1	No Encoder	Universal	no
16 mm	73.2 mm	24 V	189 mNm	640 rpm	21:1	No Encoder	Universal	no
16 mm	75.6 mm	24 V	39 mNm	3354 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
16 mm	75.6 mm	24 V	64 mNm	2006 rpm	7:1	1024-line incremental magnetic encoder	Universal	no
16 mm	75.7 mm	12 V	650 mNm	34.5 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
16 mm	75.7 mm	24 V	650 mNm	35.3 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
16 mm	77.8 mm	12 V	520 mNm	163 rpm	83:1	No Encoder	Universal	no
16 mm	77.8 mm	12 V	520 mNm	86 rpm	172:1	No Encoder	Universal	no
16 mm	77.8 mm	24 V	520 mNm	166 rpm	83:1	No Encoder	Universal	no
16 mm	77.8 mm	24 V	520 mNm	85 rpm	172:1	No Encoder	Universal	no
16 mm	78 mm	24 V	135.1 mNm	589.5 rpm	21:1	13-bit multi-turn absolute magnetic encoder	Universal	no
16 mm	81.2 mm	12 V	198 mNm	596 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
16 mm	81.2 mm	12 V	198 mNm	596 rpm	21:1	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	81.2 mm	24 V	189 mNm	640 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
16 mm	81.2 mm	24 V	189 mNm	640 rpm	21:1	12-bit single-turn absolute magnetic encoder	Universal	no
16 mm	82.7 mm	12 V	560 mNm	37 rpm	406:1	No Encoder	Universal	no
16 mm	82.7 mm	24 V	650 mNm	37 rpm	406:1	No Encoder	Universal	no
16 mm	83 mm	24 V	496.2 mNm	149.3 rpm	83:1	13-bit multi-turn absolute magnetic encoder	Universal	no
16 mm	85.8 mm	12 V	520 mNm	163 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
16 mm	85.8 mm	12 V	520 mNm	86 rpm	172:1	1024-line incremental magnetic encoder	Universal	no
16 mm	85.8 mm	24 V	520 mNm	166 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
16 mm	85.8 mm	24 V	520 mNm	85 rpm	172:1	1024-line incremental magnetic encoder	Universal	no
16 mm	90.7 mm	12 V	650 mNm	37 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
16 mm	90.7 mm	24 V	650 mNm	37 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
19 mm	42 mm	12 V	10 mNm	12545 rpm	No Gearbox	No Encoder	Universal	no
19 mm	42 mm	24 V	11 mNm	12658 rpm	No Gearbox	No Encoder	Universal	no
19 mm	42 mm	36 V	10 mNm	13339 rpm	No Gearbox	No Encoder	Universal	no
19 mm	42 mm	48 V	10 mNm	13554 rpm	No Gearbox	No Encoder	Universal	no
19 mm	58 mm	12 V	17 mNm	11570 rpm	No Gearbox	No Encoder	Universal	no
19 mm	58 mm	18 V	24.6 mNm	38300 rpm	No Gearbox	No Encoder	High Speed	on request
19 mm	58 mm	24 V	24.3 mNm	44500 rpm	No Gearbox	No Encoder	High Speed	on request
19 mm	58 mm	24 V	22 mNm	12806 rpm	No Gearbox	No Encoder	Universal	no
19 mm	58 mm	36 V	22.7 mNm	44600 rpm	No Gearbox	No Encoder	High Speed	on request
19 mm	58 mm	36 V	21.5 mNm	13097 rpm	No Gearbox	No Encoder	Universal	no
19 mm	58 mm	48 V	21.7 mNm	47500 rpm	No Gearbox	No Encoder	High Speed	on request
19 mm	58 mm	48 V	20.5 mNm	13321 rpm	No Gearbox	No Encoder	Universal	no
19 mm	67 mm	24 V	40 mNm	3207 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
19 mm	72.3 mm	24 V	202 mNm	604 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
19 mm	77.7 mm	24 V	650 mNm	155 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
19 mm	83 mm	24 V	79.9 mNm	3244 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
19 mm	83.1 mm	24 V	800 mNm	35 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
19 mm	88.3 mm	24 V	403 mNm	611 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
19 mm	93.8 mm	24 V	650 mNm	168 rpm	83:1	1024-line incremental magnetic encoder	Universal	no
19 mm	99.2 mm	24 V	800 mNm	36 rpm	406:1	1024-line incremental magnetic encoder	Universal	no
22 mm	32 mm	12 V	7.5 mNm	13610 rpm	No Gearbox	No Encoder	Universal	no
22 mm	32 mm	18 V	7 mNm	14750 rpm	No Gearbox	No Encoder	Universal	no
22 mm	32 mm	24 V	6.75 mNm	15000 rpm	No Gearbox	No Encoder	Universal	no
22 mm	35 mm	12 V	14 mNm	9535 rpm	No Gearbox	No Encoder	High Torque	no
22 mm	35 mm	24 V	14 mNm	10850 rpm	No Gearbox	No Encoder	High Torque	no
22 mm	35 mm	24 V	14 mNm	10850 rpm	No Gearbox	1024-line incremental magnetic encoder	High Torque	no
22 mm	43.8 mm	24 V	6.9 mNm	15430 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
22 mm	43.8 mm	24 V	6.9 mNm	15430 rpm	No Gearbox	12-bit single-turn absolute magnetic encoder	Universal	no
22 mm	43.8 mm	24 V	6.9 mNm	15430 rpm	No Gearbox	15-bit incremental magnetic encoder	Universal	no
22 mm	44.5 mm	18 V	13.5 mNm	27200 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	44.5 mm	24 V	21.2 mNm	35400 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	44.5 mm	36 V	10 mNm	35800 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	44.5 mm	48 V	17.2 mNm	36400 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	48.5 mm	18 V	22.51 mNm	14955 rpm	No Gearbox	No Encoder	Universal	no
22 mm	48.5 mm	24 V	21.6 mNm	15835 rpm	No Gearbox	No Encoder	Universal	no
22 mm	48.5 mm	36 V	21 mNm	17000 rpm	No Gearbox	No Encoder	Universal	no
22 mm	48.5 mm	48 V	20.66 mNm	17720 rpm	No Gearbox	No Encoder	Universal	no
22 mm	52.9 mm	15 V	25 mNm	1991 rpm	4:1	No Encoder	Universal	no
22 mm	56.2 mm	24 V	86 mNm	1624.25 rpm	7:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	58.8 mm	15 V	93 mNm	504 rpm	16:1	No Encoder	Universal	no
22 mm	58.8 mm	15 V	208 mNm	224 rpm	35:1	No Encoder	Universal	no
22 mm	60 mm	24 V	26 mNm	34940 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	60 mm	24 V	26 mNm	39500 rpm	No Gearbox	1024-line incremental magnetic encoder	High Speed	on request
22 mm	60 mm	24 V	21.6 mNm	15835 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
22 mm	60 mm	24 V	21.6 mNm	15800 rpm	No Gearbox	12-bit single-turn absolute magnetic encoder	Universal	no
22 mm	60 mm	24 V	21.6 mNm	15800 rpm	No Gearbox	15-bit incremental magnetic encoder	Universal	no
22 mm	60 mm	36 V	26 mNm	37600 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	60 mm	48 V	23 mNm	39300 rpm	No Gearbox	No Encoder	High Speed	on request
22 mm	62.1 mm	24 V	188 mNm	827.9 rpm	16:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	64 mm	12 V	45 mNm	7254 rpm	No Gearbox	No Encoder	High Torque	no
22 mm	64 mm	24 V	45 mNm	8768 rpm	No Gearbox	No Encoder	High Torque	no
22 mm	64 mm	24 V	45 mNm	8768 rpm	No Gearbox	1024-line incremental magnetic encoder	High Torque	no
22 mm	64 mm	36 V	45 mNm	9343 rpm	No Gearbox	No Encoder	High Torque	no
22 mm	64 mm	48 V	45 mNm	9532 rpm	No Gearbox	No Encoder	High Torque	no
22 mm	64.6 mm	15 V	340 mNm	128 rpm	62:1	No Encoder	Universal	no
22 mm	64.6 mm	15 V	568 mNm	71 rpm	111:1	No Encoder	Universal	no
22 mm	64.7 mm	15 V	25 mNm	1920.2 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
22 mm	67.9 mm	24 V	1150 mNm	96.4 rpm	111:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	69.1 mm	15 V	79 mNm	2271 rpm	4:1	No Encoder	Universal	no
22 mm	70.6 mm	15 V	90 mNm	486.8 rpm	16:1	1024-line incremental magnetic encoder	Universal	no
22 mm	70.6 mm	15 V	200 mNm	216.6 rpm	35:1	1024-line incremental magnetic encoder	Universal	no
22 mm	70.8 mm	15 V	2000 mNm	15.9 rpm	546:1	No Encoder	Universal	no
22 mm	75 mm	15 V	290 mNm	770.1 rpm	16:1	No Encoder	Universal	no
22 mm	75 mm	15 V	610 mNm	245 rpm	35:1	No Encoder	Universal	no
22 mm	76 mm	24 V	21.6 mNm	15800 rpm	No Gearbox	17-bit absolute magnetic encoder	Universal	no
22 mm	76.4 mm	15 V	330 mNm	123.3 rpm	62:1	1024-line incremental magnetic encoder	Universal	no
22 mm	76.4 mm	15 V	525 mNm	76 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
22 mm	76.4 mm	15 V	600 mNm	68.2 rpm	111:1	1024-line incremental magnetic encoder	Universal	no
22 mm	80.8 mm	15 V	970 mNm	151 rpm	62:1	No Encoder	Universal	no
22 mm	80.8 mm	15 V	1600 mNm	85.2 rpm	111:1	No Encoder	Universal	no
22 mm	80.9 mm	24 V	79 mNm	2271 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
22 mm	80.9 mm	30 V	76 mNm	2542 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
22 mm	82.6 mm	15 V	2000 mNm	15.4 rpm	546:1	1024-line incremental magnetic encoder	Universal	no
22 mm	85.1 mm	24 V	165 mNm	2369 rpm	4:1	No Encoder	High Torque	no
22 mm	85.1 mm	24 V	165 mNm	2291 rpm	4:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	85.1 mm	24 V	275 mNm	1371 rpm	7:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	86.8 mm	15 V	650 mNm	256 rpm	35:1	12-bit single-turn absolute magnetic encoder	Universal	no
22 mm	86.8 mm	24 V	290 mNm	575 rpm	16:1	1024-line incremental magnetic encoder	Universal	no
22 mm	86.8 mm	24 V	610 mNm	245 rpm	35:1	1024-line incremental magnetic encoder	Universal	no
22 mm	86.8 mm	30 V	280 mNm	644 rpm	16:1	1024-line incremental magnetic encoder	Universal	no
22 mm	86.8 mm	30 V	590 mNm	291 rpm	35:1	1024-line incremental magnetic encoder	Universal	no
22 mm	87 mm	15 V	2000 mNm	20.7 rpm	546:1	No Encoder	Universal	no
22 mm	91 mm	24 V	603 mNm	581 rpm	16:1	No Encoder	High Torque	no
22 mm	91 mm	24 V	603 mNm	581 rpm	16:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	91 mm	24 V	810 mNm	432 rpm	21:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	92.6 mm	15 V	1060 mNm	146 rpm	62:1	12-bit single-turn absolute magnetic encoder	Universal	no
22 mm	92.6 mm	24 V	970 mNm	152 rpm	62:1	1024-line incremental magnetic encoder	Universal	no
22 mm	92.6 mm	24 V	1600 mNm	85.2 rpm	111:1	1024-line incremental magnetic encoder	Universal	no
22 mm	92.6 mm	30 V	1020 mNm	163 rpm	62:1	1024-line incremental magnetic encoder	Universal	no
22 mm	92.6 mm	30 V	1600 mNm	91.6 rpm	111:1	1024-line incremental magnetic encoder	Universal	no
22 mm	96.3 mm	15 V	79 mNm	2271 rpm	4:1	17-bit absolute magnetic encoder	Universal	no
22 mm	96.8 mm	24 V	1600 mNm	152.8 rpm	62:1	1024-line incremental magnetic encoder	High Torque	no
22 mm	98.8 mm	24 V	2000 mNm	20.7 rpm	546:1	1024-line incremental magnetic encoder	Universal	no
22 mm	98.8 mm	30 V	2000 mNm	21 rpm	546:1	1024-line incremental magnetic encoder	Universal	no
22 mm	102.2 mm	15 V	290 mNm	575 rpm	16:1	17-bit absolute magnetic encoder	Universal	no
22 mm	102.2 mm	15 V	650 mNm	256 rpm	35:1	17-bit absolute magnetic encoder	Universal	no
22 mm	108 mm	15 V	1060 mNm	146 rpm	62:1	17-bit absolute magnetic encoder	Universal	no
22 mm	108 mm	15 V	1600 mNm	85.2 rpm	111:1	17-bit absolute magnetic encoder	Universal	no
22 mm	114.2 mm	15 V	2000 mNm	20.7 rpm	546:1	17-bit absolute magnetic encoder	Universal	no
26 mm	40 mm	12 V	22 mNm	7820 rpm	No Gearbox	No Encoder	Universal	no
26 mm	40 mm	24 V	22 mNm	8504 rpm	No Gearbox	No Encoder	Universal	no
26 mm	40 mm	36 V	22 mNm	8941 rpm	No Gearbox	No Encoder	Universal	no
26 mm	40 mm	48 V	22 mNm	8878 rpm	No Gearbox	No Encoder	Universal	no
26 mm	56 mm	12 V	45 mNm	9106 rpm	No Gearbox	No Encoder	Universal	no
26 mm	56 mm	24 V	45 mNm	8630 rpm	No Gearbox	No Encoder	Universal	no
26 mm	56 mm	36 V	45 mNm	9000 rpm	No Gearbox	No Encoder	Universal	no
26 mm	56 mm	48 V	44 mNm	9200 rpm	No Gearbox	No Encoder	Universal	no
26 mm	61.6 mm	24 V	79.9 mNm	2153 rpm	4:1	No Encoder	Universal	no
26 mm	65.9 mm	24 V	45 mNm	8630 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
26 mm	68.5 mm	24 V	382.5 mNm	406 rpm	21:1	No Encoder	Universal	no
26 mm	71.4 mm	24 V	79.9 mNm	2153 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
26 mm	75.5 mm	24 V	1060 mNm	138 rpm	62:1	No Encoder	Universal	no
26 mm	75.5 mm	24 V	2370 mNm	61 rpm	138:1	No Encoder	Universal	no
26 mm	77.6 mm	12 V	163.5 mNm	1924 rpm	4:1	No Encoder	Universal	no
26 mm	77.6 mm	24 V	163.5 mNm	2185 rpm	4:1	No Encoder	Universal	no
26 mm	77.6 mm	36 V	163.5 mNm	2278 rpm	4:1	No Encoder	Universal	no
26 mm	78.3 mm	24 V	382.5 mNm	406 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
26 mm	84.5 mm	12 V	782.5 mNm	363 rpm	21:1	No Encoder	Universal	no
26 mm	84.5 mm	24 V	782.5 mNm	412 rpm	21:1	No Encoder	Universal	no
26 mm	84.5 mm	36 V	782.5 mNm	430 rpm	21:1	No Encoder	Universal	no
26 mm	85.3 mm	24 V	1055 mNm	138 rpm	62:1	1024-line incremental magnetic encoder	Universal	no
26 mm	85.4 mm	24 V	2373 mNm	61 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
26 mm	87.4 mm	12 V	163.5 mNm	1928 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
26 mm	87.4 mm	24 V	163.5 mNm	2185 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
26 mm	91.5 mm	12 V	4500 mNm	56.2 rpm	138:1	No Encoder	Universal	no
26 mm	91.5 mm	24 V	4500 mNm	63.092 rpm	138:1	No Encoder	Universal	no
26 mm	91.5 mm	36 V	4500 mNm	65.25 rpm	138:1	No Encoder	Universal	no
26 mm	91.7 mm	24 V	2160 mNm	140 rpm	62:1	No Encoder	Universal	no
26 mm	94.3 mm	12 V	782.5 mNm	363 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
26 mm	94.3 mm	24 V	782.5 mNm	412 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
26 mm	94.3 mm	36 V	782.5 mNm	430 rpm	21:1	1024-line incremental magnetic encoder	Universal	no
26 mm	101.3 mm	12 V	4500 mNm	56.2 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
26 mm	101.3 mm	24 V	4500 mNm	63.092 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
26 mm	101.3 mm	36 V	163.5 mNm	2278 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
26 mm	101.3 mm	36 V	4500 mNm	65.25 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
30 mm	42 mm	12 V	24 mNm	7300 rpm	No Gearbox	No Encoder	Universal	no
30 mm	42 mm	24 V	24 mNm	8600 rpm	No Gearbox	No Encoder	Universal	no
30 mm	51.9 mm	24 V	24 mNm	8600 rpm	No Gearbox	1024-line incremental magnetic encoder	Universal	no
30 mm	64 mm	12 V	60 mNm	7100 rpm	No Gearbox	No Encoder	Universal	no
30 mm	64 mm	24 V	60 mNm	8600 rpm	No Gearbox	No Encoder	Universal	no
30 mm	64 mm	36 V	66 mNm	9347 rpm	No Gearbox	No Encoder	Universal	no
30 mm	64 mm	48 V	60 mNm	9260 rpm	No Gearbox	No Encoder	Universal	no
30 mm	71.2 mm	24 V	90 mNm	2303.8 rpm	4:1	No Encoder	Universal	no
30 mm	79.5 mm	24 V	320 mNm	584.1 rpm	16:1	No Encoder	Universal	no
30 mm	79.5 mm	24 V	720 mNm	259.8 rpm	35:1	No Encoder	Universal	no
30 mm	80.8 mm	24 V	90 mNm	2303.8 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
30 mm	87.8 mm	24 V	1110 mNm	148 rpm	62:1	No Encoder	Universal	no
30 mm	87.8 mm	24 V	1850 mNm	88.5 rpm	103:1	No Encoder	Universal	no
30 mm	87.8 mm	24 V	4160 mNm	39.4 rpm	231:1	No Encoder	Universal	no
30 mm	89.1 mm	24 V	720 mNm	259.8 rpm	35:1	1024-line incremental magnetic encoder	Universal	no
30 mm	90 mm	24 V	135 mNm	8520 rpm	No Gearbox	No Encoder	High Torque	no
30 mm	90 mm	24 V	135 mNm	8520 rpm	No Gearbox	1024-line incremental magnetic encoder	High Torque	no
30 mm	93.2 mm	24 V	230 mNm	2223.5 rpm	4:1	No Encoder	Universal	no
30 mm	93.2 mm	24 V	390 mNm	1330.8 rpm	7:1	No Encoder	Universal	no
30 mm	97.4 mm	24 V	1850 mNm	88.5 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
30 mm	97.7 mm	18 V	1100 mNm	114 rpm	62:1	1024-line incremental magnetic encoder	Universal	no
30 mm	97.7 mm	18 V	4150 mNm	29 rpm	231:1	1024-line incremental magnetic encoder	Universal	no
30 mm	99.7 mm	24 V	90 mNm	2303.8 rpm	4:1	17-bit absolute magnetic encoder	Universal	no
30 mm	101.5 mm	24 V	880 mNm	563.7 rpm	16:1	No Encoder	Universal	no
30 mm	101.5 mm	24 V	1990 mNm	250.7 rpm	35:1	No Encoder	Universal	no
30 mm	101.5 mm	48 V	1990 mNm	270.3 rpm	35:1	No Encoder	Universal	no
30 mm	102.8 mm	24 V	230 mNm	2223.5 rpm	4:1	1024-line incremental magnetic encoder	Universal	no
30 mm	102.8 mm	24 V	390 mNm	1330.8 rpm	7:1	1024-line incremental magnetic encoder	Universal	no
30 mm	108 mm	24 V	320 mNm	584.1 rpm	16:1	17-bit absolute magnetic encoder	Universal	no
30 mm	108 mm	24 V	720 mNm	259.8 rpm	35:1	17-bit absolute magnetic encoder	Universal	no
30 mm	109.8 mm	24 V	3040 mNm	142.8 rpm	62:1	No Encoder	Universal	no
30 mm	109.8 mm	24 V	5000 mNm	85.9 rpm	103:1	No Encoder	Universal	no
30 mm	109.8 mm	24 V	5000 mNm	66.3 rpm	138:1	No Encoder	Universal	no
30 mm	109.8 mm	24 V	5000 mNm	41.4 rpm	231:1	No Encoder	Universal	no
30 mm	111.1 mm	24 V	880 mNm	563.7 rpm	16:1	1024-line incremental magnetic encoder	Universal	no
30 mm	111.1 mm	24 V	1650 mNm	245.9 rpm	35:1	1024-line incremental magnetic encoder	Universal	no
30 mm	111.1 mm	48 V	1990 mNm	270.3 rpm	35:1	1024-line incremental magnetic encoder	Universal	no
30 mm	116.3 mm	24 V	1850 mNm	88.5 rpm	103:1	17-bit absolute magnetic encoder	Universal	no
30 mm	116.3 mm	24 V	4160 mNm	39.4 rpm	231:1	17-bit absolute magnetic encoder	Universal	no
30 mm	119.2 mm	18 V	480 mNm	1498 rpm	4:1	1024-line incremental magnetic encoder	High Torque	no
30 mm	119.4 mm	24 V	3040 mNm	142.8 rpm	62:1	1024-line incremental magnetic encoder	Universal	no
30 mm	119.4 mm	24 V	5000 mNm	85.6 rpm	103:1	1024-line incremental magnetic encoder	Universal	no
30 mm	119.4 mm	24 V	5000 mNm	66.3 rpm	138:1	1024-line incremental magnetic encoder	Universal	no
30 mm	119.4 mm	24 V	5000 mNm	41.4 rpm	231:1	1024-line incremental magnetic encoder	Universal	no
30 mm	127.5 mm	24 V	2900 mNm	272 rpm	35:1	1024-line incremental magnetic encoder	High Torque	no
30 mm	130 mm	24 V	1180 mNm	421.7 rpm	21:1	17-bit absolute magnetic encoder	Universal	no
30 mm	130 mm	24 V	1990 mNm	250.7 rpm	35:1	17-bit absolute magnetic encoder	Universal	no
30 mm	135.7 mm	18 V	5000 mNm	118.6 rpm	62:1	No Encoder	High Torque	no

8 mm

36.05 mm

12 V

16.5 mNm

1618 rpm

17:1

1024-line incremental magnetic encoder

Universal

no

8 mm

38.9 mm

12 V

69.23 mNm

181 rpm

72:1

1024-line incremental magnetic encoder

Universal

no

10 mm

25 mm

12 V

0.95 mNm

18300 rpm

No Gearbox

No Encoder

High Speed

no

10 mm

32 mm

6 V

1.39 mNm

42167 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

10 mm

32 mm

9 V

1.62 mNm

37780 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

10 mm

32 mm

12 V

1.6 mNm

39765 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

10 mm

32 mm

18 V

1.47 mNm

42333 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

10 mm

32 mm

24 V

1.5 mNm

45200 rpm

No Gearbox

No Encoder

High Speed

no

10 mm

32 mm

24 V

1.5 mNm

45200 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

10 mm

32.9 mm

12 V

3.24 mNm

4828 rpm

4:1

1024-line incremental magnetic encoder

High Speed

no

10 mm

36 mm

12 V

10 mNm

1395 rpm

16:1

1024-line incremental magnetic encoder

High Speed

no

10 mm

39 mm

12 V

42.9 mNm

295.5 rpm

62:1

No Encoder

High Speed

no

10 mm

40 mm

12 V

5.12 mNm

5092 rpm

4:1

No Encoder

High Speed

no

10 mm

43 mm

12 V

19.85 mNm

1181 rpm

16:1

1024-line incremental magnetic encoder

High Speed

no

10 mm

44.55 mm

12 V

160.5 mNm

71 rpm

256:1

No Encoder

High Speed

no

10 mm

44.55 mm

12 V

160.5 mNm

71 rpm

256:1

1024-line incremental magnetic encoder

High Speed

no

10 mm

45 mm

12 V

16 mNm

1346 rpm

16:1

1024-line incremental magnetic encoder

Performance

no

10 mm

46 mm

12 V

67.8 mNm

305 rpm

62:1

1024-line incremental magnetic encoder

High Speed

no

10 mm

48 mm

12 V

55.3 mNm

343 rpm

64:1

1024-line incremental magnetic encoder

Performance

no

10 mm

48 mm

12 V

1500 mNm

27.5 rpm

1024:1

No Encoder

High Speed

no

10 mm

51 mm

12 V

191.1 mNm

85.93 rpm

256:1

1024-line incremental magnetic encoder

Performance

no

10 mm

52 mm

12 V

147 mNm

91.45 rpm

256:1

1024-line incremental magnetic encoder

High Speed

no

11 mm

17 mm

24 V

0.17 mNm

19300 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

11 mm

28.2 mm

24 V

20.4 mNm

710 rpm

27:1

1024-line incremental magnetic encoder

High Speed

no

13 mm

25.2 mm

6 V

2.33 mNm

19800 rpm

No Gearbox

No Encoder

Universal

no

13 mm

25.2 mm

9 V

2.45 mNm

21500 rpm

No Gearbox

No Encoder

Universal

no

13 mm

25.2 mm

12 V

2.31 mNm

19300 rpm

No Gearbox

No Encoder

Universal

no

13 mm

25.2 mm

18 V

2.41 mNm

19300 rpm

No Gearbox

No Encoder

Universal

no

13 mm

25.2 mm

24 V

2.33 mNm

19300 rpm

No Gearbox

No Encoder

Universal

no

13 mm

28.5 mm

12 V

1.45 mNm

17290 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

13 mm

37 mm

12 V

4.5 mNm

3071 rpm

4:1

No Encoder

Universal

no

13 mm

37.4 mm

6 V

5.13 mNm

18000 rpm

No Gearbox

No Encoder

Universal

no

13 mm

37.4 mm

9 V

5.55 mNm

19000 rpm

No Gearbox

No Encoder

Universal

no

13 mm

37.4 mm

12 V

5.18 mNm

19000 rpm

No Gearbox

No Encoder

Universal

no

13 mm

37.4 mm

18 V

5.5 mNm

19000 rpm

No Gearbox

No Encoder

Universal

no

13 mm

37.4 mm

24 V

5.13 mNm

19900 rpm

No Gearbox

No Encoder

Universal

no

13 mm

37.4 mm

36 V

5.4 mNm

27000 rpm

No Gearbox

No Encoder

Universal

no

13 mm

41 mm

9 V

23.2 mNm

639 rpm

19:1

No Encoder

Universal

no

13 mm

41 mm

9 V

31 mNm

456 rpm

26:1

No Encoder

Universal

no

13 mm

41 mm

12 V

20.4 mNm

605 rpm

19:1

No Encoder

Universal

no

13 mm

41 mm

12 V

27.4 mNm

451 rpm

26:1

No Encoder

Universal

no

13 mm

41 mm

18 V

19.8 mNm

714 rpm

19:1

No Encoder

Universal

no

13 mm

44 mm

36 V

3 mNm

23100 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

13 mm

44.5 mm

9 V

5.1 mNm

3300 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

13 mm

44.5 mm

18 V

4.3 mNm

3540 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

13 mm

45 mm

9 V

58.4 mNm

216 rpm

54:1

No Encoder

Universal

no

13 mm

45 mm

9 V

101.3 mNm

124 rpm

94:1

No Encoder

Universal

no

13 mm

45 mm

9 V

140.4 mNm

90 rpm

131:1

No Encoder

Universal

no

13 mm

45 mm

18 V

1.24 mNm

151 rpm

94:1

No Encoder

Universal

no

13 mm

48 mm

24 V

7 mNm

55970 rpm

No Gearbox

No Encoder

High Speed

no

13 mm

48 mm

24 V

8.78 mNm

55970 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

13 mm

48 mm

36 V

8.58 mNm

59800 rpm

No Gearbox

No Encoder

High Speed

no

13 mm

48 mm

48 V

8.67 mNm

60300 rpm

No Gearbox

No Encoder

High Speed

no

13 mm

48 mm

48 V

8.67 mNm

60300 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

no

13 mm

48.5 mm

9 V

22.3 mNm

676 rpm

19:1

1024-line incremental magnetic encoder

Universal

no

13 mm

48.5 mm

9 V

31 mNm

503 rpm

26:1

12-bit single-turn absolute magnetic encoder

Universal

no

13 mm

48.5 mm

9 V

31 mNm

456 rpm

26:1

1024-line incremental magnetic encoder

Universal

no

13 mm

48.5 mm

18 V

19.8 mNm

714 rpm

19:1

1024-line incremental magnetic encoder

Universal

no

13 mm

49.3 mm

9 V

264.4 mNm

45 rpm

276:1

No Encoder

Universal

no

13 mm

49.3 mm

9 V

400 mNm

23 rpm

664:1

No Encoder

Universal

no

13 mm

52.5 mm

9 V

78.2 mNm

161 rpm

73:1

1024-line incremental magnetic encoder

Universal

no

13 mm

52.5 mm

9 V

101.3 mNm

138 rpm

94:1

1024-line incremental magnetic encoder

Universal

no

13 mm

52.5 mm

12 V

124 mNm

91 rpm

131:1

1024-line incremental magnetic encoder

Universal

no

13 mm

52.5 mm

18 V

86.6 mNm

165 rpm

94:1

12-bit single-turn absolute magnetic encoder

Universal

no

13 mm

52.5 mm

18 V

86.6 mNm

157 rpm

94:1

1024-line incremental magnetic encoder

Universal

no

13 mm

52.5 mm

18 V

120.1 mNm

113 rpm

131:1

1024-line incremental magnetic encoder

Universal

no

13 mm

54 mm

6 V

63.9 mNm

512 rpm

19:1

No Encoder

Universal

no

13 mm

54 mm

24 V

46.2 mNm

704.4 rpm

19:1

No Encoder

Universal

no

13 mm

56.4 mm

18 V

226.1 mNm

54 rpm

276:1

1024-line incremental magnetic encoder

Universal

no

13 mm

56.95 mm

12 V

230 mNm

90 rpm

94:1

No Encoder

Universal

no

13 mm

56.95 mm

24 V

230 mNm

146 rpm

94:1

No Encoder

Universal

no

13 mm

57.5 mm

18 V

290.5 mNm

110 rpm

131:1

No Encoder

Universal

no

13 mm

57.5 mm

24 V

274.8 mNm

103.5 rpm

131:1

No Encoder

Universal

no

13 mm

60.5 mm

24 V

46.2 mNm

704.4 rpm

19:1

12-bit single-turn absolute magnetic encoder

Universal

no

13 mm

60.5 mm

24 V

46.2 mNm

704.4 rpm

19:1

1024-line incremental magnetic encoder

Universal

no

13 mm

61 mm

24 V

400 mNm

65.9 rpm

276:1

No Encoder

Universal

no

13 mm

64.5 mm

24 V

230 mNm

146 rpm

94:1

1024-line incremental magnetic encoder

Universal

no

13 mm

64.5 mm

24 V

274.8 mNm

103.5 rpm

131:1

1024-line incremental magnetic encoder

Universal

no

13 mm

68.5 mm

24 V

400 mNm

60.4 rpm

276:1

1024-line incremental magnetic encoder

Universal

no

16 mm

24 mm

4 V

2.7 mNm

9280 rpm

No Gearbox

No Encoder

Universal

no

16 mm

24 mm

6 V

2.8 mNm

8236 rpm

No Gearbox

No Encoder

Universal

no

16 mm

24 mm

9 V

2.7 mNm

8312 rpm

No Gearbox

No Encoder

Universal

no

16 mm

24 mm

12 V

2.5 mNm

8860 rpm

No Gearbox

No Encoder

Universal

no

16 mm

24 mm

18 V

2.6 mNm

8711 rpm

No Gearbox

No Encoder

Universal

no

16 mm

24 mm

24 V

2.5 mNm

9109 rpm

No Gearbox

No Encoder

Universal

no

16 mm

33 mm

12 V

2.5 mNm

8860 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

16 mm

33 mm

12 V

2.5 mNm

8860 rpm

No Gearbox

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

33 mm

12 V

2.5 mNm

8860 rpm

No Gearbox

15-bit incremental magnetic encoder

Universal

no

16 mm

33 mm

24 V

2.5 mNm

9109 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

16 mm

33 mm

24 V

2.5 mNm

9109 rpm

No Gearbox

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

33.5 mm

12 V

2.5 mNm

9965 rpm

No Gearbox

No Encoder

Universal

no

16 mm

35.6 mm

12 V

7.8 mNm

11000 rpm

No Gearbox

No Encoder

Universal

no

16 mm

35.6 mm

18 V

7 mNm

13770 rpm

No Gearbox

No Encoder

Universal

no

16 mm

35.6 mm

24 V

7.5 mNm

12350 rpm

No Gearbox

No Encoder

Universal

no

16 mm

35.6 mm

36 V

7 mNm

15000 rpm

No Gearbox

No Encoder

Universal

no

16 mm

40 mm

12 V

8.9 mNm

2308 rpm

4:1

No Encoder

Universal

no

16 mm

44.5 mm

12 V

7.8 mNm

11000 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

16 mm

44.5 mm

24 V

7.5 mNm

12350 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

16 mm

44.5 mm

24 V

7.5 mNm

12350 rpm

No Gearbox

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

44.5 mm

24 V

7.5 mNm

12350 rpm

No Gearbox

15-bit incremental magnetic encoder

Universal

no

16 mm

45.2 mm

12 V

45 mNm

423 rpm

21:1

No Encoder

Universal

no

16 mm

45.2 mm

24 V

45 mNm

435 rpm

21:1

No Encoder

Universal

no

16 mm

48.5 mm

24 V

9.18 mNm

2306 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

16 mm

48.9 mm

12 V

9.18 mNm

2243 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

16 mm

50 mm

12 V

165.4 mNm

107 rpm

83:1

No Encoder

Universal

no

16 mm

50 mm

12 V

205 mNm

86 rpm

103:1

No Encoder

Universal

no

16 mm

50 mm

12 V

276 mNm

64 rpm

138:1

No Encoder

Universal

no

16 mm

50 mm

12 V

344 mNm

51 rpm

172:1

No Encoder

Universal

no

16 mm

50 mm

24 V

165.4 mNm

110 rpm

83:1

No Encoder

Universal

no

16 mm

50 mm

24 V

206 mNm

89 rpm

103:1

No Encoder

Universal

no

16 mm

50 mm

24 V

277 mNm

66 rpm

138:1

No Encoder

Universal

no

16 mm

50 mm

24 V

344 mNm

53 rpm

172:1

No Encoder

Universal

no

16 mm

51.6 mm

12 V

20 mNm

3185 rpm

4:1

No Encoder

Universal

no

16 mm

51.6 mm

12 V

47.9 mNm

1667 rpm

7:1

No Encoder

Universal

no

16 mm

51.6 mm

24 V

20 mNm

3340 rpm

4:1

No Encoder

Universal

no

16 mm

51.6 mm

24 V

46 mNm

1871 rpm

7:1

No Encoder

Universal

no

16 mm

52 mm

12 V

11 mNm

12500 rpm

No Gearbox

No Encoder

Universal

no

16 mm

52 mm

24 V

10.5 mNm

13400 rpm

No Gearbox

No Encoder

Universal

no

16 mm

52 mm

36 V

11.5 mNm

13776 rpm

No Gearbox

No Encoder

Universal

no

16 mm

52 mm

48 V

11 mNm

14545 rpm

No Gearbox

No Encoder

Universal

no

16 mm

54.1 mm

12 V

45.04 mNm

423 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

16 mm

54.1 mm

24 V

45 mNm

435 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

16 mm

55 mm

12 V

650 mNm

26 rpm

406:1

No Encoder

Universal

no

16 mm

55 mm

24 V

650 mNm

25 rpm

406:1

No Encoder

Universal

no

16 mm

56 mm

24 V

15 mNm

41000 rpm

No Gearbox

No Encoder

High Speed

standard

16 mm

56 mm

36 V

10.5 mNm

44000 rpm

No Gearbox

No Encoder

High Speed

standard

16 mm

56 mm

48 V

7.5 mNm

43000 rpm

No Gearbox

No Encoder

High Speed

standard

16 mm

56.8 mm

12 V

140 mNm

525 rpm

21:1

No Encoder

Universal

no

16 mm

56.8 mm

12 V

292.2 mNm

253 rpm

44:1

No Encoder

Universal

no

16 mm

56.8 mm

24 V

135.12 mNm

590 rpm

21:1

No Encoder

Universal

no

16 mm

56.8 mm

24 V

280.96 mNm

283.5 rpm

44:1

No Encoder

Universal

no

16 mm

57 mm

24 V

7.5 mNm

12350 rpm

No Gearbox

13-bit multi-turn absolute magnetic encoder

Universal

no

16 mm

58.8 mm

12 V

165.4 mNm

107 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

12 V

205 mNm

86 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

12 V

276 mNm

64 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

12 V

343.9 mNm

51 rpm

172:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

24 V

165.4 mNm

110 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

24 V

206 mNm

89 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

24 V

276 mNm

66 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

16 mm

58.8 mm

24 V

344 mNm

53 rpm

172:1

1024-line incremental magnetic encoder

Universal

no

16 mm

60.1 mm

12 V

11 mNm

12500 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

16 mm

60.1 mm

24 V

10.5 mNm

13400 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

16 mm

60.1 mm

24 V

10.5 mNm

13400 rpm

No Gearbox

15-bit incremental magnetic encoder

Universal

no

16 mm

60.5 mm

12 V

20 mNm

3185 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

16 mm

60.5 mm

12 V

47.8 mNm

1666.6 rpm

7:1

1024-line incremental magnetic encoder

Universal

no

16 mm

60.5 mm

24 V

20 mNm

3340 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

16 mm

60.5 mm

24 V

46 mNm

1871 rpm

7:1

1024-line incremental magnetic encoder

Universal

no

16 mm

61.4 mm

12 V

516 mNm

133 rpm

83:1

No Encoder

Universal

no

16 mm

61.4 mm

12 V

520 mNm

76 rpm

172:1

No Encoder

Universal

no

16 mm

61.4 mm

24 V

496.2 mNm

149.5 rpm

83:1

No Encoder

Universal

no

16 mm

61.5 mm

12 V

520 mNm

114 rpm

103:1

No Encoder

Universal

no

16 mm

61.5 mm

12 V

520 mNm

92 rpm

138:1

No Encoder

Universal

no

16 mm

63.7 mm

24 V

650 mNm

21.6 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

16 mm

63.7 mm

24 V

650 mNm

19.1 rpm

546:1

1024-line incremental magnetic encoder

Universal

no

16 mm

64.9 mm

12 V

650 mNm

22.3 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

16 mm

65.5 mm

12 V

140 mNm

525 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

16 mm

65.8 mm

12 V

292.2 mNm

282 rpm

44:1

1024-line incremental magnetic encoder

Universal

no

16 mm

65.8 mm

24 V

100.5 mNm

792.6 rpm

16:1

1024-line incremental magnetic encoder

Universal

no

16 mm

65.8 mm

24 V

135.12 mNm

590 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

16 mm

65.8 mm

24 V

135.12 mNm

590 rpm

21:1

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

65.8 mm

24 V

280.96 mNm

283.5 rpm

44:1

1024-line incremental magnetic encoder

Universal

no

16 mm

65.8 mm

24 V

280.96 mNm

283.5 rpm

44:1

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

66.5 mm

24 V

800 mNm

78 rpm

172:1

No Encoder

Universal

no

16 mm

66.7 mm

12 V

650 mNm

34.5 rpm

406:1

No Encoder

Universal

no

16 mm

67.8 mm

24 V

39 mNm

3354 rpm

4:1

No Encoder

Universal

no

16 mm

67.8 mm

24 V

64 mNm

2006 rpm

7:1

No Encoder

Universal

no

16 mm

68 mm

12 V

39 mNm

3167 rpm

4:1

No Encoder

Universal

no

16 mm

68 mm

12 V

65.6 mNm

1894 rpm

7:1

No Encoder

Universal

no

16 mm

70.4 mm

12 V

516 mNm

133 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

12 V

520 mNm

114 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

12 V

520 mNm

92 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

12 V

520 mNm

76 rpm

172:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

12 V

520 mNm

76 rpm

172:1

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

70.4 mm

24 V

496.2 mNm

149.5 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

24 V

496.2 mNm

149.5 rpm

83:1

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

70.4 mm

24 V

520 mNm

124 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

24 V

520 mNm

99 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

16 mm

70.4 mm

24 V

520 mNm

80 rpm

172:1

1024-line incremental magnetic encoder

Universal

no

16 mm

73.2 mm

12 V

198 mNm

596 rpm

21:1

No Encoder

Universal

no

16 mm

73.2 mm

24 V

189 mNm

640 rpm

21:1

No Encoder

Universal

no

16 mm

75.6 mm

24 V

39 mNm

3354 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

16 mm

75.6 mm

24 V

64 mNm

2006 rpm

7:1

1024-line incremental magnetic encoder

Universal

no

16 mm

75.7 mm

12 V

650 mNm

34.5 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

16 mm

75.7 mm

24 V

650 mNm

35.3 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

16 mm

77.8 mm

12 V

520 mNm

163 rpm

83:1

No Encoder

Universal

no

16 mm

77.8 mm

12 V

520 mNm

86 rpm

172:1

No Encoder

Universal

no

16 mm

77.8 mm

24 V

520 mNm

166 rpm

83:1

No Encoder

Universal

no

16 mm

77.8 mm

24 V

520 mNm

85 rpm

172:1

No Encoder

Universal

no

16 mm

78 mm

24 V

135.1 mNm

589.5 rpm

21:1

13-bit multi-turn absolute magnetic encoder

Universal

no

16 mm

81.2 mm

12 V

198 mNm

596 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

16 mm

81.2 mm

12 V

198 mNm

596 rpm

21:1

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

81.2 mm

24 V

189 mNm

640 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

16 mm

81.2 mm

24 V

189 mNm

640 rpm

21:1

12-bit single-turn absolute magnetic encoder

Universal

no

16 mm

82.7 mm

12 V

560 mNm

37 rpm

406:1

No Encoder

Universal

no

16 mm

82.7 mm

24 V

650 mNm

37 rpm

406:1

No Encoder

Universal

no

16 mm

83 mm

24 V

496.2 mNm

149.3 rpm

83:1

13-bit multi-turn absolute magnetic encoder

Universal

no

16 mm

85.8 mm

12 V

520 mNm

163 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

16 mm

85.8 mm

12 V

520 mNm

86 rpm

172:1

1024-line incremental magnetic encoder

Universal

no

16 mm

85.8 mm

24 V

520 mNm

166 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

16 mm

85.8 mm

24 V

520 mNm

85 rpm

172:1

1024-line incremental magnetic encoder

Universal

no

16 mm

90.7 mm

12 V

650 mNm

37 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

16 mm

90.7 mm

24 V

650 mNm

37 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

19 mm

42 mm

12 V

10 mNm

12545 rpm

No Gearbox

No Encoder

Universal

no

19 mm

42 mm

24 V

11 mNm

12658 rpm

No Gearbox

No Encoder

Universal

no

19 mm

42 mm

36 V

10 mNm

13339 rpm

No Gearbox

No Encoder

Universal

no

19 mm

42 mm

48 V

10 mNm

13554 rpm

No Gearbox

No Encoder

Universal

no

19 mm

58 mm

12 V

17 mNm

11570 rpm

No Gearbox

No Encoder

Universal

no

19 mm

58 mm

18 V

24.6 mNm

38300 rpm

No Gearbox

No Encoder

High Speed

on request

19 mm

58 mm

24 V

24.3 mNm

44500 rpm

No Gearbox

No Encoder

High Speed

on request

19 mm

58 mm

24 V

22 mNm

12806 rpm

No Gearbox

No Encoder

Universal

no

19 mm

58 mm

36 V

22.7 mNm

44600 rpm

No Gearbox

No Encoder

High Speed

on request

19 mm

58 mm

36 V

21.5 mNm

13097 rpm

No Gearbox

No Encoder

Universal

no

19 mm

58 mm

48 V

21.7 mNm

47500 rpm

No Gearbox

No Encoder

High Speed

on request

19 mm

58 mm

48 V

20.5 mNm

13321 rpm

No Gearbox

No Encoder

Universal

no

19 mm

67 mm

24 V

40 mNm

3207 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

19 mm

72.3 mm

24 V

202 mNm

604 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

19 mm

77.7 mm

24 V

650 mNm

155 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

19 mm

83 mm

24 V

79.9 mNm

3244 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

19 mm

83.1 mm

24 V

800 mNm

35 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

19 mm

88.3 mm

24 V

403 mNm

611 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

19 mm

93.8 mm

24 V

650 mNm

168 rpm

83:1

1024-line incremental magnetic encoder

Universal

no

19 mm

99.2 mm

24 V

800 mNm

36 rpm

406:1

1024-line incremental magnetic encoder

Universal

no

22 mm

32 mm

12 V

7.5 mNm

13610 rpm

No Gearbox

No Encoder

Universal

no

22 mm

32 mm

18 V

7 mNm

14750 rpm

No Gearbox

No Encoder

Universal

no

22 mm

32 mm

24 V

6.75 mNm

15000 rpm

No Gearbox

No Encoder

Universal

no

22 mm

35 mm

12 V

14 mNm

9535 rpm

No Gearbox

No Encoder

High Torque

no

22 mm

35 mm

24 V

14 mNm

10850 rpm

No Gearbox

No Encoder

High Torque

no

22 mm

35 mm

24 V

14 mNm

10850 rpm

No Gearbox

1024-line incremental magnetic encoder

High Torque

no

22 mm

43.8 mm

24 V

6.9 mNm

15430 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

22 mm

43.8 mm

24 V

6.9 mNm

15430 rpm

No Gearbox

12-bit single-turn absolute magnetic encoder

Universal

no

22 mm

43.8 mm

24 V

6.9 mNm

15430 rpm

No Gearbox

15-bit incremental magnetic encoder

Universal

no

22 mm

44.5 mm

18 V

13.5 mNm

27200 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

44.5 mm

24 V

21.2 mNm

35400 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

44.5 mm

36 V

10 mNm

35800 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

44.5 mm

48 V

17.2 mNm

36400 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

48.5 mm

18 V

22.51 mNm

14955 rpm

No Gearbox

No Encoder

Universal

no

22 mm

48.5 mm

24 V

21.6 mNm

15835 rpm

No Gearbox

No Encoder

Universal

no

22 mm

48.5 mm

36 V

21 mNm

17000 rpm

No Gearbox

No Encoder

Universal

no

22 mm

48.5 mm

48 V

20.66 mNm

17720 rpm

No Gearbox

No Encoder

Universal

no

22 mm

52.9 mm

15 V

25 mNm

1991 rpm

4:1

No Encoder

Universal

no

22 mm

56.2 mm

24 V

86 mNm

1624.25 rpm

7:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

58.8 mm

15 V

93 mNm

504 rpm

16:1

No Encoder

Universal

no

22 mm

58.8 mm

15 V

208 mNm

224 rpm

35:1

No Encoder

Universal

no

22 mm

60 mm

24 V

26 mNm

34940 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

60 mm

24 V

26 mNm

39500 rpm

No Gearbox

1024-line incremental magnetic encoder

High Speed

on request

22 mm

60 mm

24 V

21.6 mNm

15835 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

22 mm

60 mm

24 V

21.6 mNm

15800 rpm

No Gearbox

12-bit single-turn absolute magnetic encoder

Universal

no

22 mm

60 mm

24 V

21.6 mNm

15800 rpm

No Gearbox

15-bit incremental magnetic encoder

Universal

no

22 mm

60 mm

36 V

26 mNm

37600 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

60 mm

48 V

23 mNm

39300 rpm

No Gearbox

No Encoder

High Speed

on request

22 mm

62.1 mm

24 V

188 mNm

827.9 rpm

16:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

64 mm

12 V

45 mNm

7254 rpm

No Gearbox

No Encoder

High Torque

no

22 mm

64 mm

24 V

45 mNm

8768 rpm

No Gearbox

No Encoder

High Torque

no

22 mm

64 mm

24 V

45 mNm

8768 rpm

No Gearbox

1024-line incremental magnetic encoder

High Torque

no

22 mm

64 mm

36 V

45 mNm

9343 rpm

No Gearbox

No Encoder

High Torque

no

22 mm

64 mm

48 V

45 mNm

9532 rpm

No Gearbox

No Encoder

High Torque

no

22 mm

64.6 mm

15 V

340 mNm

128 rpm

62:1

No Encoder

Universal

no

22 mm

64.6 mm

15 V

568 mNm

71 rpm

111:1

No Encoder

Universal

no

22 mm

64.7 mm

15 V

25 mNm

1920.2 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

22 mm

67.9 mm

24 V

1150 mNm

96.4 rpm

111:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

69.1 mm

15 V

79 mNm

2271 rpm

4:1

No Encoder

Universal

no

22 mm

70.6 mm

15 V

90 mNm

486.8 rpm

16:1

1024-line incremental magnetic encoder

Universal

no

22 mm

70.6 mm

15 V

200 mNm

216.6 rpm

35:1

1024-line incremental magnetic encoder

Universal

no

22 mm

70.8 mm

15 V

2000 mNm

15.9 rpm

546:1

No Encoder

Universal

no

22 mm

75 mm

15 V

290 mNm

770.1 rpm

16:1

No Encoder

Universal

no

22 mm

75 mm

15 V

610 mNm

245 rpm

35:1

No Encoder

Universal

no

22 mm

76 mm

24 V

21.6 mNm

15800 rpm

No Gearbox

17-bit absolute magnetic encoder

Universal

no

22 mm

76.4 mm

15 V

330 mNm

123.3 rpm

62:1

1024-line incremental magnetic encoder

Universal

no

22 mm

76.4 mm

15 V

525 mNm

76 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

22 mm

76.4 mm

15 V

600 mNm

68.2 rpm

111:1

1024-line incremental magnetic encoder

Universal

no

22 mm

80.8 mm

15 V

970 mNm

151 rpm

62:1

No Encoder

Universal

no

22 mm

80.8 mm

15 V

1600 mNm

85.2 rpm

111:1

No Encoder

Universal

no

22 mm

80.9 mm

24 V

79 mNm

2271 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

22 mm

80.9 mm

30 V

76 mNm

2542 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

22 mm

82.6 mm

15 V

2000 mNm

15.4 rpm

546:1

1024-line incremental magnetic encoder

Universal

no

22 mm

85.1 mm

24 V

165 mNm

2369 rpm

4:1

No Encoder

High Torque

no

22 mm

85.1 mm

24 V

165 mNm

2291 rpm

4:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

85.1 mm

24 V

275 mNm

1371 rpm

7:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

86.8 mm

15 V

650 mNm

256 rpm

35:1

12-bit single-turn absolute magnetic encoder

Universal

no

22 mm

86.8 mm

24 V

290 mNm

575 rpm

16:1

1024-line incremental magnetic encoder

Universal

no

22 mm

86.8 mm

24 V

610 mNm

245 rpm

35:1

1024-line incremental magnetic encoder

Universal

no

22 mm

86.8 mm

30 V

280 mNm

644 rpm

16:1

1024-line incremental magnetic encoder

Universal

no

22 mm

86.8 mm

30 V

590 mNm

291 rpm

35:1

1024-line incremental magnetic encoder

Universal

no

22 mm

87 mm

15 V

2000 mNm

20.7 rpm

546:1

No Encoder

Universal

no

22 mm

91 mm

24 V

603 mNm

581 rpm

16:1

No Encoder

High Torque

no

22 mm

91 mm

24 V

603 mNm

581 rpm

16:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

91 mm

24 V

810 mNm

432 rpm

21:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

92.6 mm

15 V

1060 mNm

146 rpm

62:1

12-bit single-turn absolute magnetic encoder

Universal

no

22 mm

92.6 mm

24 V

970 mNm

152 rpm

62:1

1024-line incremental magnetic encoder

Universal

no

22 mm

92.6 mm

24 V

1600 mNm

85.2 rpm

111:1

1024-line incremental magnetic encoder

Universal

no

22 mm

92.6 mm

30 V

1020 mNm

163 rpm

62:1

1024-line incremental magnetic encoder

Universal

no

22 mm

92.6 mm

30 V

1600 mNm

91.6 rpm

111:1

1024-line incremental magnetic encoder

Universal

no

22 mm

96.3 mm

15 V

79 mNm

2271 rpm

4:1

17-bit absolute magnetic encoder

Universal

no

22 mm

96.8 mm

24 V

1600 mNm

152.8 rpm

62:1

1024-line incremental magnetic encoder

High Torque

no

22 mm

98.8 mm

24 V

2000 mNm

20.7 rpm

546:1

1024-line incremental magnetic encoder

Universal

no

22 mm

98.8 mm

30 V

2000 mNm

21 rpm

546:1

1024-line incremental magnetic encoder

Universal

no

22 mm

102.2 mm

15 V

290 mNm

575 rpm

16:1

17-bit absolute magnetic encoder

Universal

no

22 mm

102.2 mm

15 V

650 mNm

256 rpm

35:1

17-bit absolute magnetic encoder

Universal

no

22 mm

108 mm

15 V

1060 mNm

146 rpm

62:1

17-bit absolute magnetic encoder

Universal

no

22 mm

108 mm

15 V

1600 mNm

85.2 rpm

111:1

17-bit absolute magnetic encoder

Universal

no

22 mm

114.2 mm

15 V

2000 mNm

20.7 rpm

546:1

17-bit absolute magnetic encoder

Universal

no

26 mm

40 mm

12 V

22 mNm

7820 rpm

No Gearbox

No Encoder

Universal

no

26 mm

40 mm

24 V

22 mNm

8504 rpm

No Gearbox

No Encoder

Universal

no

26 mm

40 mm

36 V

22 mNm

8941 rpm

No Gearbox

No Encoder

Universal

no

26 mm

40 mm

48 V

22 mNm

8878 rpm

No Gearbox

No Encoder

Universal

no

26 mm

56 mm

12 V

45 mNm

9106 rpm

No Gearbox

No Encoder

Universal

no

26 mm

56 mm

24 V

45 mNm

8630 rpm

No Gearbox

No Encoder

Universal

no

26 mm

56 mm

36 V

45 mNm

9000 rpm

No Gearbox

No Encoder

Universal

no

26 mm

56 mm

48 V

44 mNm

9200 rpm

No Gearbox

No Encoder

Universal

no

26 mm

61.6 mm

24 V

79.9 mNm

2153 rpm

4:1

No Encoder

Universal

no

26 mm

65.9 mm

24 V

45 mNm

8630 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

26 mm

68.5 mm

24 V

382.5 mNm

406 rpm

21:1

No Encoder

Universal

no

26 mm

71.4 mm

24 V

79.9 mNm

2153 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

26 mm

75.5 mm

24 V

1060 mNm

138 rpm

62:1

No Encoder

Universal

no

26 mm

75.5 mm

24 V

2370 mNm

61 rpm

138:1

No Encoder

Universal

no

26 mm

77.6 mm

12 V

163.5 mNm

1924 rpm

4:1

No Encoder

Universal

no

26 mm

77.6 mm

24 V

163.5 mNm

2185 rpm

4:1

No Encoder

Universal

no

26 mm

77.6 mm

36 V

163.5 mNm

2278 rpm

4:1

No Encoder

Universal

no

26 mm

78.3 mm

24 V

382.5 mNm

406 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

26 mm

84.5 mm

12 V

782.5 mNm

363 rpm

21:1

No Encoder

Universal

no

26 mm

84.5 mm

24 V

782.5 mNm

412 rpm

21:1

No Encoder

Universal

no

26 mm

84.5 mm

36 V

782.5 mNm

430 rpm

21:1

No Encoder

Universal

no

26 mm

85.3 mm

24 V

1055 mNm

138 rpm

62:1

1024-line incremental magnetic encoder

Universal

no

26 mm

85.4 mm

24 V

2373 mNm

61 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

26 mm

87.4 mm

12 V

163.5 mNm

1928 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

26 mm

87.4 mm

24 V

163.5 mNm

2185 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

26 mm

91.5 mm

12 V

4500 mNm

56.2 rpm

138:1

No Encoder

Universal

no

26 mm

91.5 mm

24 V

4500 mNm

63.092 rpm

138:1

No Encoder

Universal

no

26 mm

91.5 mm

36 V

4500 mNm

65.25 rpm

138:1

No Encoder

Universal

no

26 mm

91.7 mm

24 V

2160 mNm

140 rpm

62:1

No Encoder

Universal

no

26 mm

94.3 mm

12 V

782.5 mNm

363 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

26 mm

94.3 mm

24 V

782.5 mNm

412 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

26 mm

94.3 mm

36 V

782.5 mNm

430 rpm

21:1

1024-line incremental magnetic encoder

Universal

no

26 mm

101.3 mm

12 V

4500 mNm

56.2 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

26 mm

101.3 mm

24 V

4500 mNm

63.092 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

26 mm

101.3 mm

36 V

163.5 mNm

2278 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

26 mm

101.3 mm

36 V

4500 mNm

65.25 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

30 mm

42 mm

12 V

24 mNm

7300 rpm

No Gearbox

No Encoder

Universal

no

30 mm

42 mm

24 V

24 mNm

8600 rpm

No Gearbox

No Encoder

Universal

no

30 mm

51.9 mm

24 V

24 mNm

8600 rpm

No Gearbox

1024-line incremental magnetic encoder

Universal

no

30 mm

64 mm

12 V

60 mNm

7100 rpm

No Gearbox

No Encoder

Universal

no

30 mm

64 mm

24 V

60 mNm

8600 rpm

No Gearbox

No Encoder

Universal

no

30 mm

64 mm

36 V

66 mNm

9347 rpm

No Gearbox

No Encoder

Universal

no

30 mm

64 mm

48 V

60 mNm

9260 rpm

No Gearbox

No Encoder

Universal

no

30 mm

71.2 mm

24 V

90 mNm

2303.8 rpm

4:1

No Encoder

Universal

no

30 mm

79.5 mm

24 V

320 mNm

584.1 rpm

16:1

No Encoder

Universal

no

30 mm

79.5 mm

24 V

720 mNm

259.8 rpm

35:1

No Encoder

Universal

no

30 mm

80.8 mm

24 V

90 mNm

2303.8 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

30 mm

87.8 mm

24 V

1110 mNm

148 rpm

62:1

No Encoder

Universal

no

30 mm

87.8 mm

24 V

1850 mNm

88.5 rpm

103:1

No Encoder

Universal

no

30 mm

87.8 mm

24 V

4160 mNm

39.4 rpm

231:1

No Encoder

Universal

no

30 mm

89.1 mm

24 V

720 mNm

259.8 rpm

35:1

1024-line incremental magnetic encoder

Universal

no

30 mm

90 mm

24 V

135 mNm

8520 rpm

No Gearbox

No Encoder

High Torque

no

30 mm

90 mm

24 V

135 mNm

8520 rpm

No Gearbox

1024-line incremental magnetic encoder

High Torque

no

30 mm

93.2 mm

24 V

230 mNm

2223.5 rpm

4:1

No Encoder

Universal

no

30 mm

93.2 mm

24 V

390 mNm

1330.8 rpm

7:1

No Encoder

Universal

no

30 mm

97.4 mm

24 V

1850 mNm

88.5 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

30 mm

97.7 mm

18 V

1100 mNm

114 rpm

62:1

1024-line incremental magnetic encoder

Universal

no

30 mm

97.7 mm

18 V

4150 mNm

29 rpm

231:1

1024-line incremental magnetic encoder

Universal

no

30 mm

99.7 mm

24 V

90 mNm

2303.8 rpm

4:1

17-bit absolute magnetic encoder

Universal

no

30 mm

101.5 mm

24 V

880 mNm

563.7 rpm

16:1

No Encoder

Universal

no

30 mm

101.5 mm

24 V

1990 mNm

250.7 rpm

35:1

No Encoder

Universal

no

30 mm

101.5 mm

48 V

1990 mNm

270.3 rpm

35:1

No Encoder

Universal

no

30 mm

102.8 mm

24 V

230 mNm

2223.5 rpm

4:1

1024-line incremental magnetic encoder

Universal

no

30 mm

102.8 mm

24 V

390 mNm

1330.8 rpm

7:1

1024-line incremental magnetic encoder

Universal

no

30 mm

108 mm

24 V

320 mNm

584.1 rpm

16:1

17-bit absolute magnetic encoder

Universal

no

30 mm

108 mm

24 V

720 mNm

259.8 rpm

35:1

17-bit absolute magnetic encoder

Universal

no

30 mm

109.8 mm

24 V

3040 mNm

142.8 rpm

62:1

No Encoder

Universal

no

30 mm

109.8 mm

24 V

5000 mNm

85.9 rpm

103:1

No Encoder

Universal

no

30 mm

109.8 mm

24 V

5000 mNm

66.3 rpm

138:1

No Encoder

Universal

no

30 mm

109.8 mm

24 V

5000 mNm

41.4 rpm

231:1

No Encoder

Universal

no

30 mm

111.1 mm

24 V

880 mNm

563.7 rpm

16:1

1024-line incremental magnetic encoder

Universal

no

30 mm

111.1 mm

24 V

1650 mNm

245.9 rpm

35:1

1024-line incremental magnetic encoder

Universal

no

30 mm

111.1 mm

48 V

1990 mNm

270.3 rpm

35:1

1024-line incremental magnetic encoder

Universal

no

30 mm

116.3 mm

24 V

1850 mNm

88.5 rpm

103:1

17-bit absolute magnetic encoder

Universal

no

30 mm

116.3 mm

24 V

4160 mNm

39.4 rpm

231:1

17-bit absolute magnetic encoder

Universal

no

30 mm

119.2 mm

18 V

480 mNm

1498 rpm

4:1

1024-line incremental magnetic encoder

High Torque

no

30 mm

119.4 mm

24 V

3040 mNm

142.8 rpm

62:1

1024-line incremental magnetic encoder

Universal

no

30 mm

119.4 mm

24 V

5000 mNm

85.6 rpm

103:1

1024-line incremental magnetic encoder

Universal

no

30 mm

119.4 mm

24 V

5000 mNm

66.3 rpm

138:1

1024-line incremental magnetic encoder

Universal

no

30 mm

119.4 mm

24 V

5000 mNm

41.4 rpm

231:1

1024-line incremental magnetic encoder

Universal

no

30 mm

127.5 mm

24 V

2900 mNm

272 rpm

35:1

1024-line incremental magnetic encoder

High Torque

no

30 mm

130 mm

24 V

1180 mNm

421.7 rpm

21:1

17-bit absolute magnetic encoder

Universal

no

30 mm

130 mm

24 V

1990 mNm

250.7 rpm

35:1

17-bit absolute magnetic encoder

Universal

no

30 mm

135.7 mm

18 V

5000 mNm

118.6 rpm

62:1

No Encoder

High Torque

no

Slotless Motors

Filters

385

Matches

Matching Motors

Status

Product Information
