SLU22CH048 Series
SLU22CH048-24-G35-P22-S17B
Slotless BLDC Motor

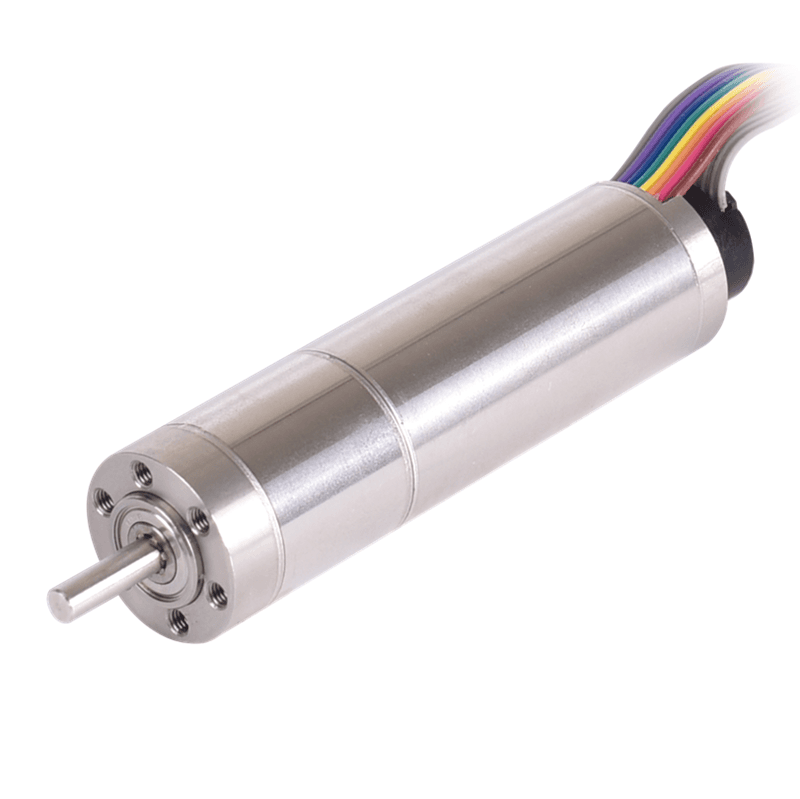

Featured product media

Quick Facts

SLU22CH048-24-G35-P22-S17B Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.67 A Rated Current
  • 92.0478 oz-in Rated Torque
  • 15 VDC Nominal Voltage
  • 4.020 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Gearhead
Weight0.417 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage15 VDC
No Load Speed 342.6 RPM
No Load Current285 mA
Nominal Speed495 RPM
Rated Speed256 RPM
Rated Torque92.0478 oz-in
Rated Current1.67 A
Stall Torque844.0071 oz-in
Stall Current15.96 A
Max. Efficiency70.9%

Motor Characteristics

Terminal Resistance0.94 ohm
Terminal Inductance0.104 mH
Speed/Torque Gradient 8.2135 RPM/oz-in
Speed Constant770 RPM/V
Mechanical Time Constant2.23 ms

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor510 s
Thermal time constant winding5.26 s

Gearhead Specifications

Gearhead Reduction Ratio35
Nominal Reduction Ratio35

Encoder Specifications

Encoder Type17-bit absolute magnetic encoder

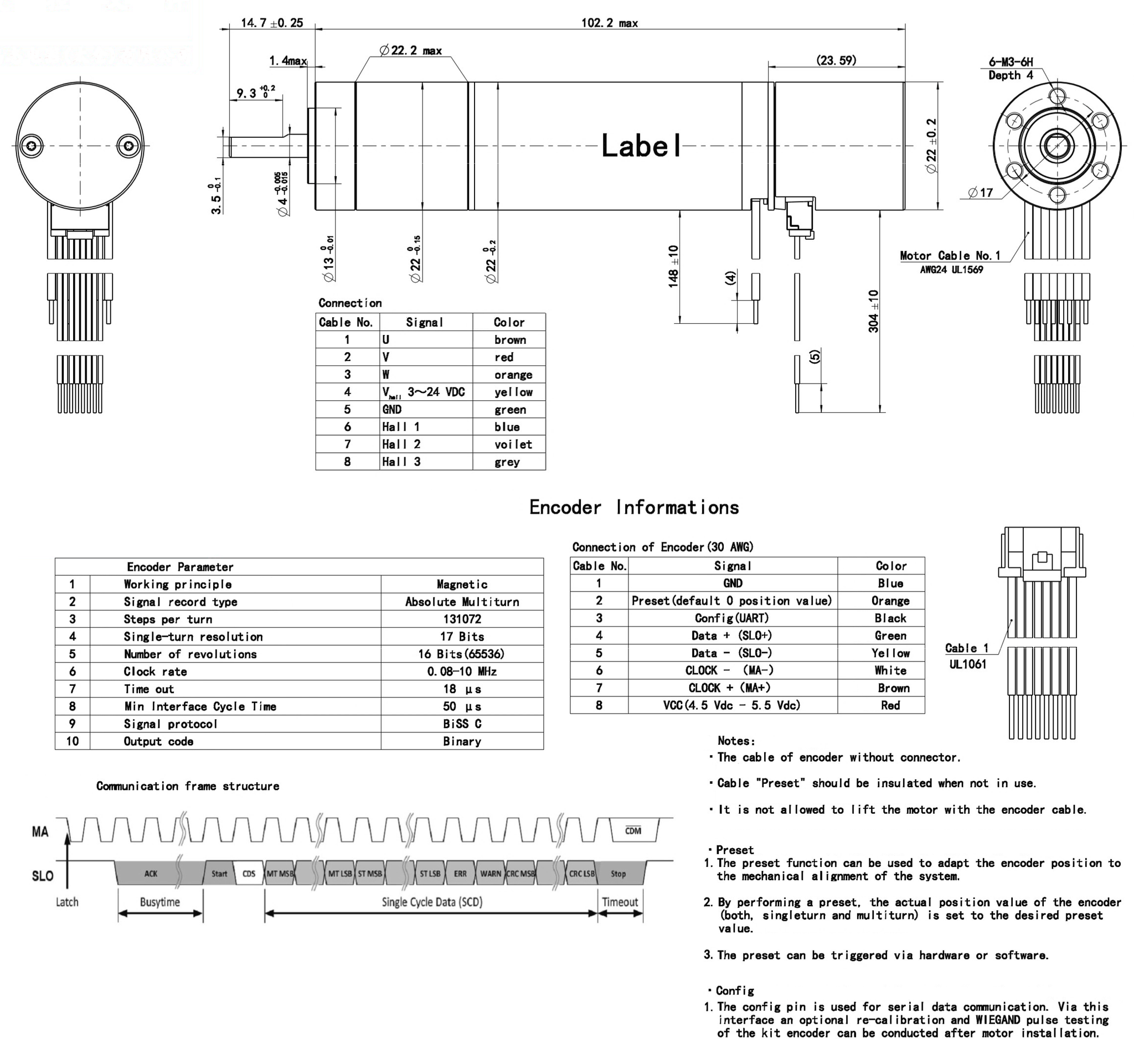

Dimensions

ModelDIM. A (length) in MAX
SLU22CH048-24-G35-P22-S17B4.020 in

Performance Curve

SLU22CH048-24-G35-P22-S17B
@15 VDC, 35:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH048 Series

Downloads

SLU22CH048-24-G35-P22-S17B Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
