SLU16CH056 Series

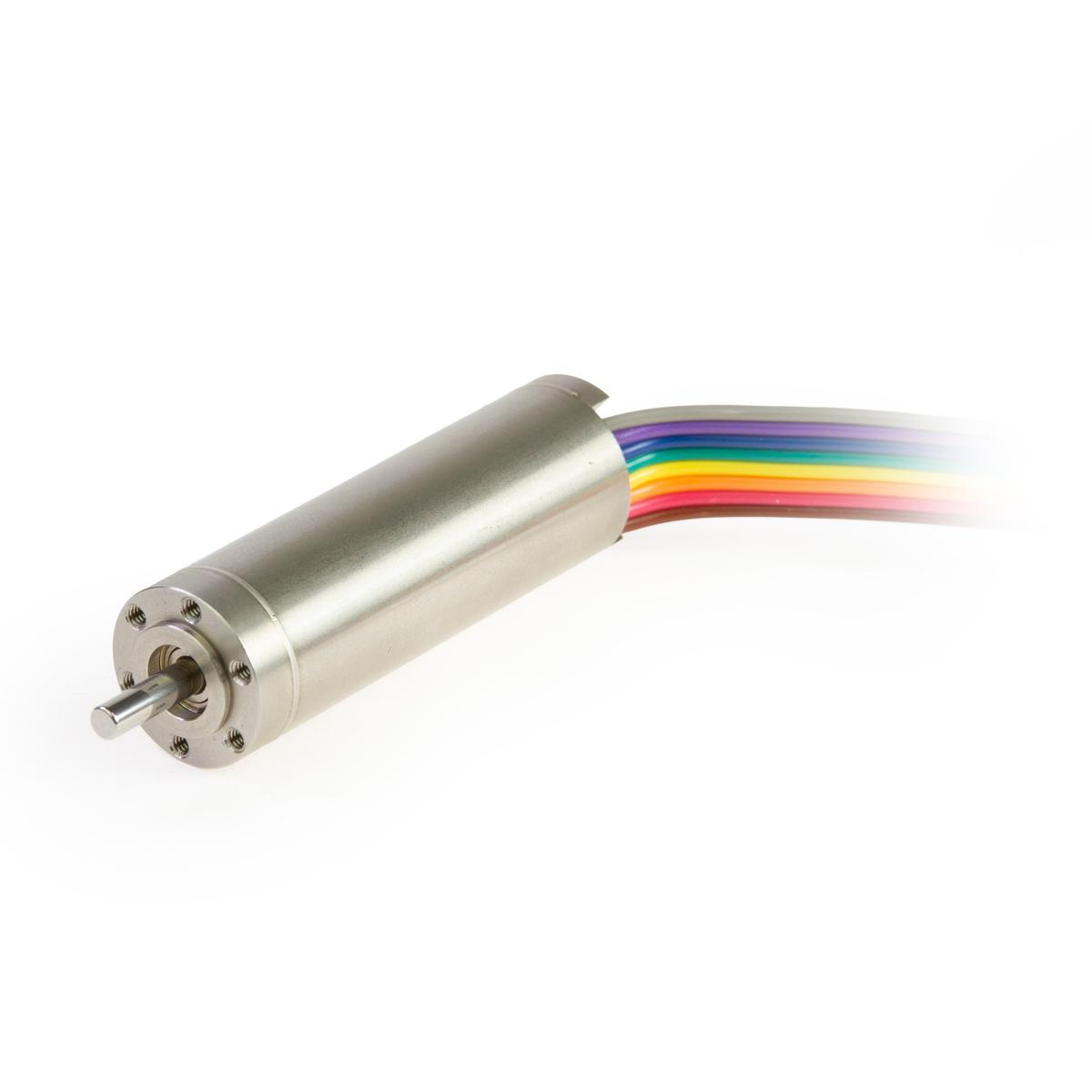

SLU16CH056-24
Slotless BLDC Motor

Name: SLU16CH056-24
Brand: Lin Engineering
SKU: SLU16CH056-24
Price: 175.5 USD
Availability: PreOrder

Quick Facts

SLU16CH056-24 Slotless BLDC Motors

Specifications:

0.630 in Frame Size
3.59 A Rated Current
2.1242 oz-in Rated Torque
24 VDC Nominal Voltage
2.200 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.630 in
Motor Type	Motor Only
Weight	0.161 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	45200 RPM
No Load Current	575 mA
Nominal Speed	42700 RPM
Nominal Torque (Max Cont. Torque)	2.1242 oz-in
Nominal Current (Max Cont. Current)	3.59 A
Rated Speed	41000 RPM
Rated Torque	2.1242 oz-in
Rated Current	3.59 A
Stall Torque	43.3474 oz-in
Stall Current	61.5 A
Max. Efficiency	88.7%

Motor Characteristics

Terminal Resistance	0.39 ohm
Terminal Inductance	0.0352 mH
Speed/Torque Gradient	19.2592 RPM/oz-in
Speed Constant	1920 RPM/V
Mechanical Time Constant	1.12 ms
Rotor Inertia	0.004 oz-in²

Motor Mechanical Data

Axial play	0.011 in
Radial play	Preloaded
Max. Radial Load	2.248 lbf
Max Force For Press Fit	13.488 lbf
Max Speed (Mechanical)	60000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	48.20 °F/W
Thermal resistance (Winding-Housing)	35.15 °F/W
Thermal time constant motor	588 s
Thermal time constant winding	1.1 s

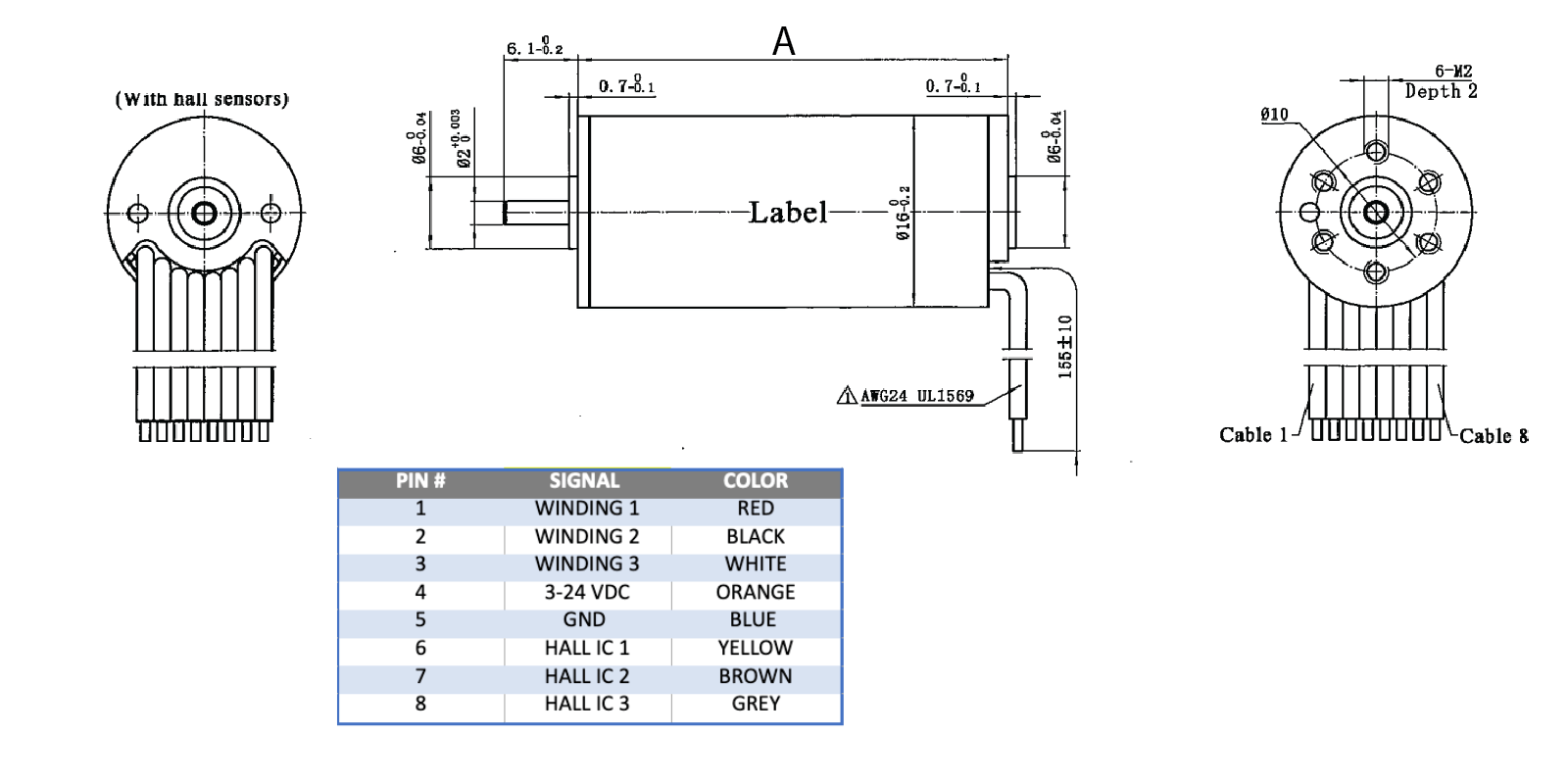

Dimensions

Model	DIM. A (length) in MAX
SLU16CH056-24	2.200 in

Performance Curve

SLU16CH056 Series

Downloads

SLU16CH056-24 Configured Datasheet (PDF)
