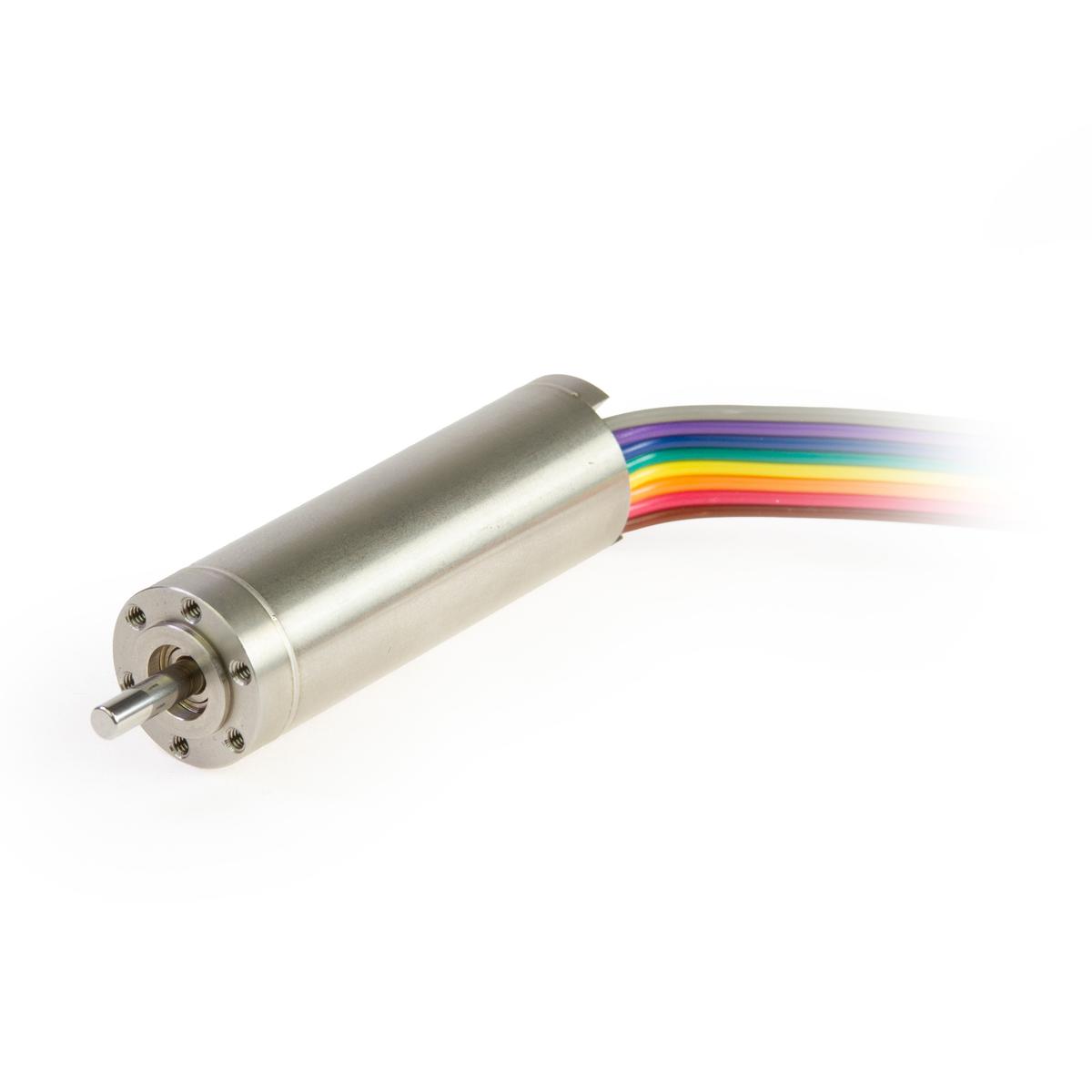

SLU16CH056 SeriesSlotless BLDC Motor
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Models
Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
---|---|---|---|---|---|---|---|---|---|---|---|
SLU16CH056-24 | 0.630 in | 2.200 in | 24 VDC | 41000 RPM | 2.1242 oz-in | 45200 RPM | 575 mA | NA | 0.161 lbs | 3.59 A | Online |
SLU16CH056-48 | 0.630 in | 2.200 in | 48 VDC | 43000 RPM | 1.0621 oz-in | 44800 RPM | 530 mA | NA | 0.161 lbs | 0.93 A | Online |

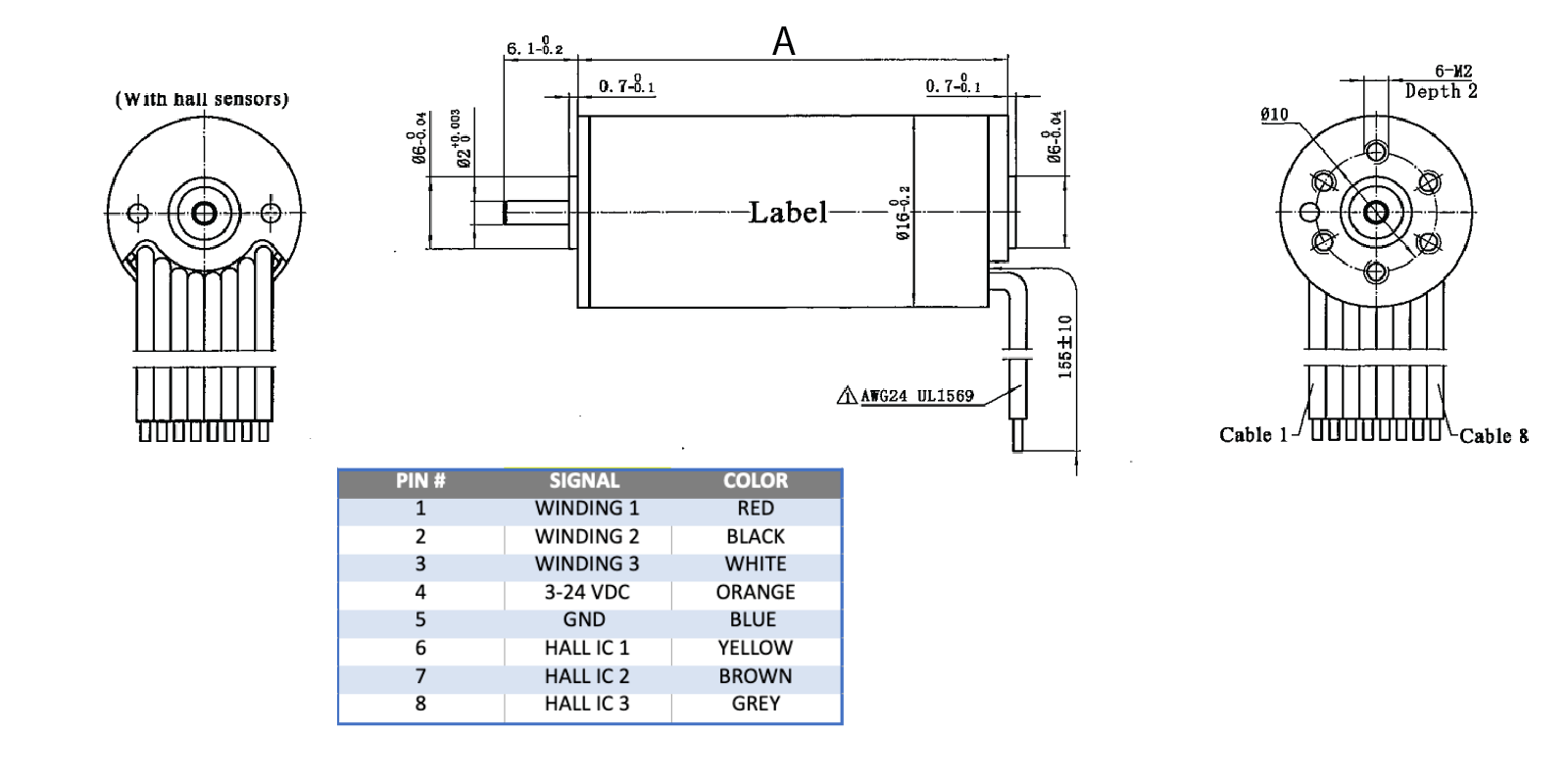

Dimensions
Model | DIM. A (length) in |
---|---|
SLU16CH056-24 | 2.200 in |
SLU16CH056-48 | 2.200 in |
![Dimensions](/_next/image?url=https://lin-product-images.s3.amazonaws.com/files/tLY6fFbpuAEGLn3Zj-original.png&w=2048&q=100)
